Circuit Breaker: Testing and Inspection

POWER SUPPLY ROUTING CIRCUIT

Circuit Breaker (Built Into BCM)

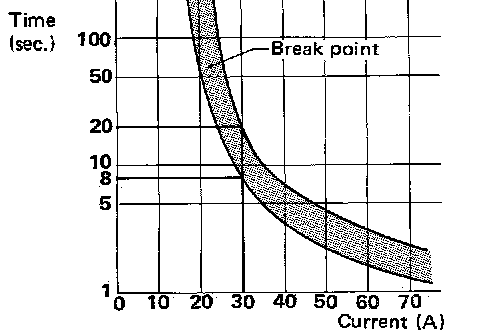

For example, when current is 30A, the circuit is broken within 8 to 20
seconds.
A circuit breaker is used for the following systems:
- Power sunroof
- Power windows
