Auxiliary Power Outlet: Service and Repair

POWER SOCKET

Removal and Installation


FRONT CONSOLE POWER SOCKET AND CONSOLE POWER SOCKET

Removal
NOTE:
If the tool does not fit because of the location of the power socket, further disassembly of interior components may be required. Refer to Removal And Installation
1.Remove the fuse for the power socket.

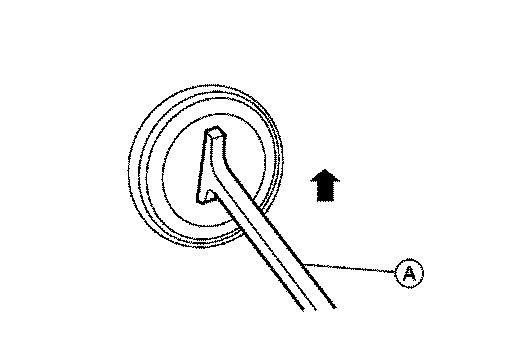

2.Insert one end of the Tool (A) into one of the square holes inside the power socket.
Tool number:- (J-42059)
3.Lift up the handle of the Tool until the other end of the Tool is inside the socket and snaps into the other square hole in the power socket.
4.Pull the power socket straight out with the Tool.
5.Disconnect power socket connector.
Installation





Installation is in the reverse order of removal.
NOTE:

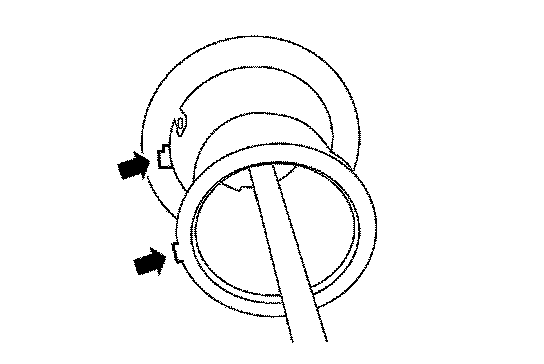

Make sure to align the tab with the square notched area during installation.
