Generator Pulley Inspection

CHARGING SYSTEM

Generator Pulley Inspection


GENERATOR PULLEY INSPECTION

One-Way Clutch Pulley Check

CAUTION:
Be careful not to damage rotor
NOTE:
Secure rotor using suitable tool and a rolled shop towel.

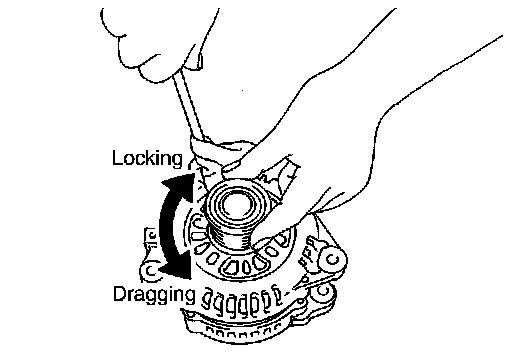

1.Check for locking; (Outer ring is turned clockwise when viewed from front.)
- If it rotates in both directions, replace generator.
2.Check for dragging. (Outer ring is turned counterclockwise when viewed from front.)
- If it locks or unusual resistance is felt, replace generator.
