Front Disc Brake




SERVICE DATA AND SPECIFICATIONS (SDS)

Front Disc Brake

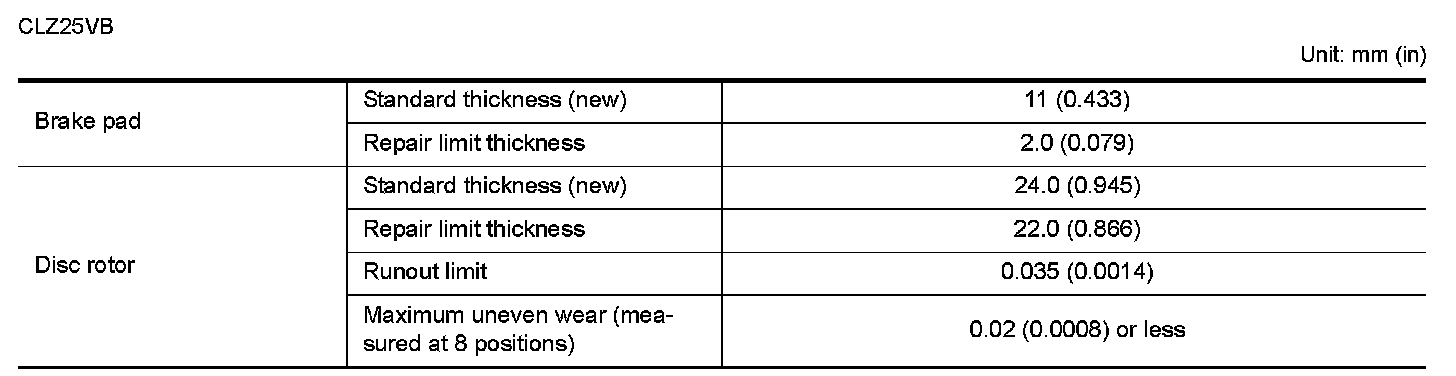

CLZ-25VB
Unit: mm (in)

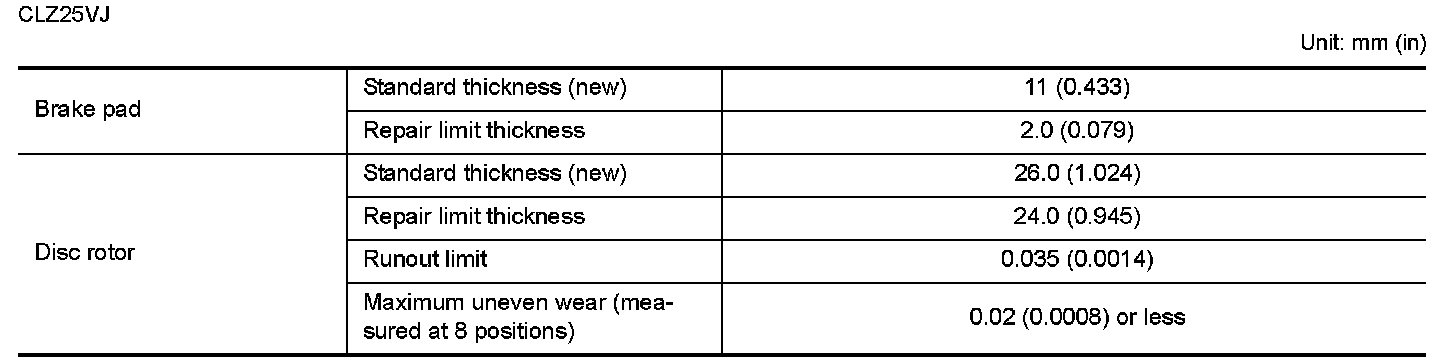

CLZ-25VJ
Unit: mm (in)

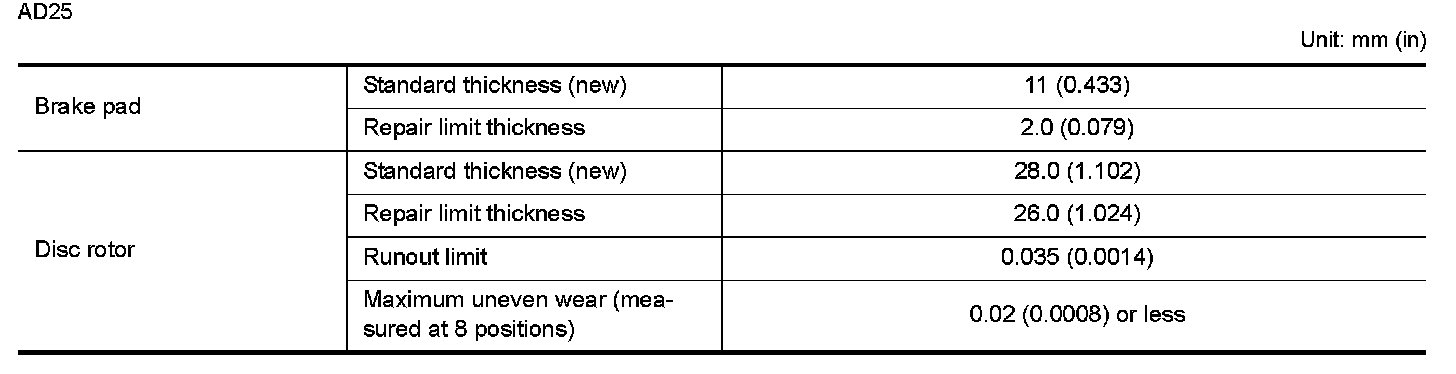

AD-25
Unit: mm (in)
