Transmission Position Sensor/Switch: Service and Repair

ON-VEHICLE SERVICE

Transmission Range Switch


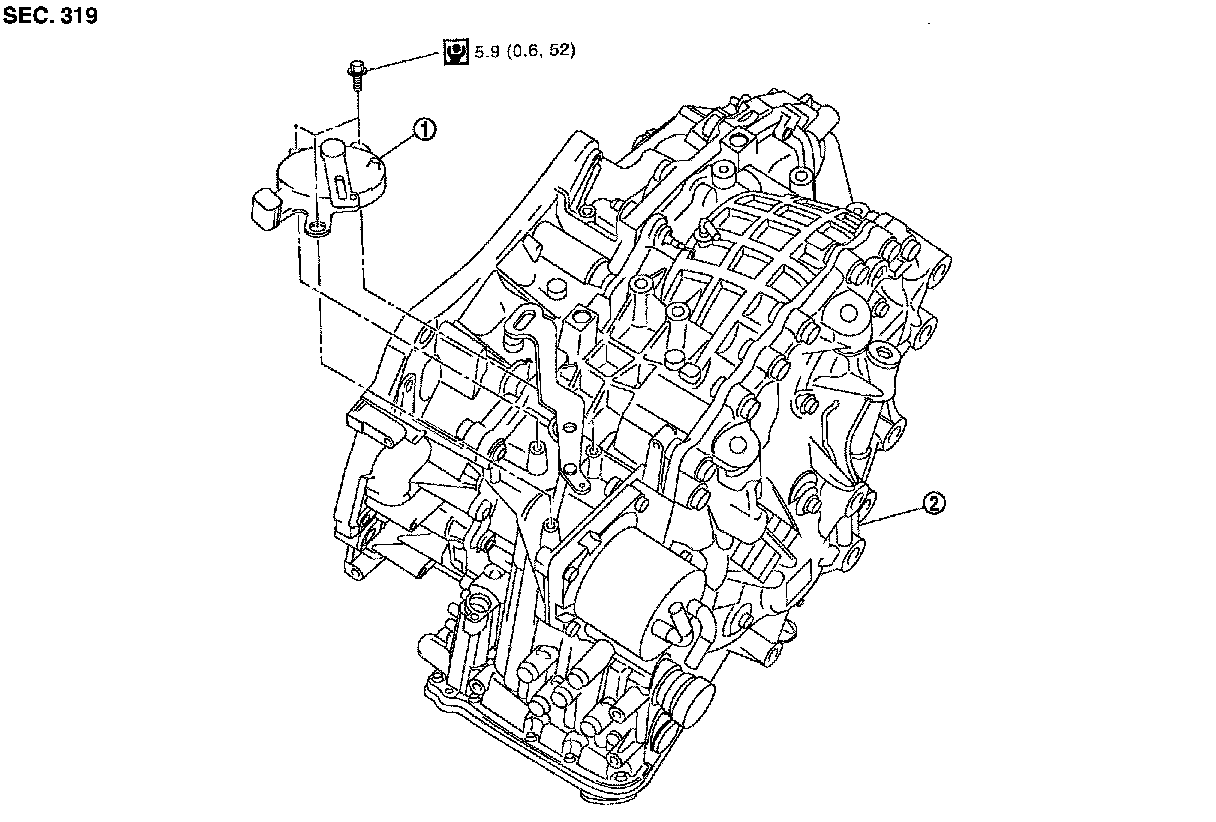

COMPONENTS












REMOVAL AND INSTALLATION (MR20DE)

Removal
1.Remove air duct and air duct (Inlet). Removal And Installation.
2.Remove battery and air duct/battery tray. Component.
3.Disconnect control cable. Removal And Installation.
4.Disconnect transmission range switch connector.
5.Remove transmission range switch.
Installation
Installation is in the reverse order of removal.
NOTE:
- Align transmission range switch position when installing.
- After installation of transmission range switch, check the continuity of transmission range switch. Refer to
CVT Shift Control System.
- After installation is complete, adjust and check CVT position. Shift Control System, Testing and Inspection.

REMOVAL AND INSTALLATION (QR25DE)

Removal
1.Remove front air duct. Removal And Installation.
2.Disconnect control cable. Removal And Installation.
3.Disconnect transmission range switch connector.
4.Remove transmission range switch.
Installation
Installation is in the reverse order of removal.
NOTE:
- Align transmission range switch position when installing.
- After installation of transmission range switch, check the continuity of transmission range switch. Refer to
CVT Shift Control System.
- After installation is complete, adjust and check CVT position. Shift Control System, Testing and Inspection.
