Steering Angle Sensor: Service and Repair

STEERING ANGLE SENSOR

Removal and Installation


REMOVAL

1.Remove the spiral cable. Service and Repair.

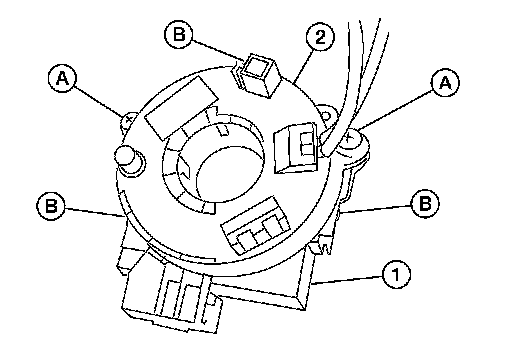

2.Remove the screws (A) and release the clips (B) remove the steering angle sensor (1) from the spiral cable (2).

INSTALLATION

Installation is in the reverse order of removal.
- Reset the neutral position of the steering angle sensor. Programming and Relearning

CAUTION:
Any time the steering angle sensor is removed and installed or replaced, you must reset the neutral position of the steering angle sensor.
