Trouble Diagnosis With CONSULT

TROUBLE DIAGNOSIS

Trouble Diagnosis with CONSULT


DIAGNOSTIC PROCEDURE 2

Diagnostic code is displayed on "SELF-DIAG [CURRENT]".
If no malfunction is detected on "SELF-DIAG [CURRENT]", but malfunction is detected in "SRS Operation
Check", the following cases may exist:
- "SELF-DIAG [PAST]" memory might not be erased.
- The SRS system malfunctions intermittently.
Refer to "DIAGNOSTIC PROCEDURE 4"

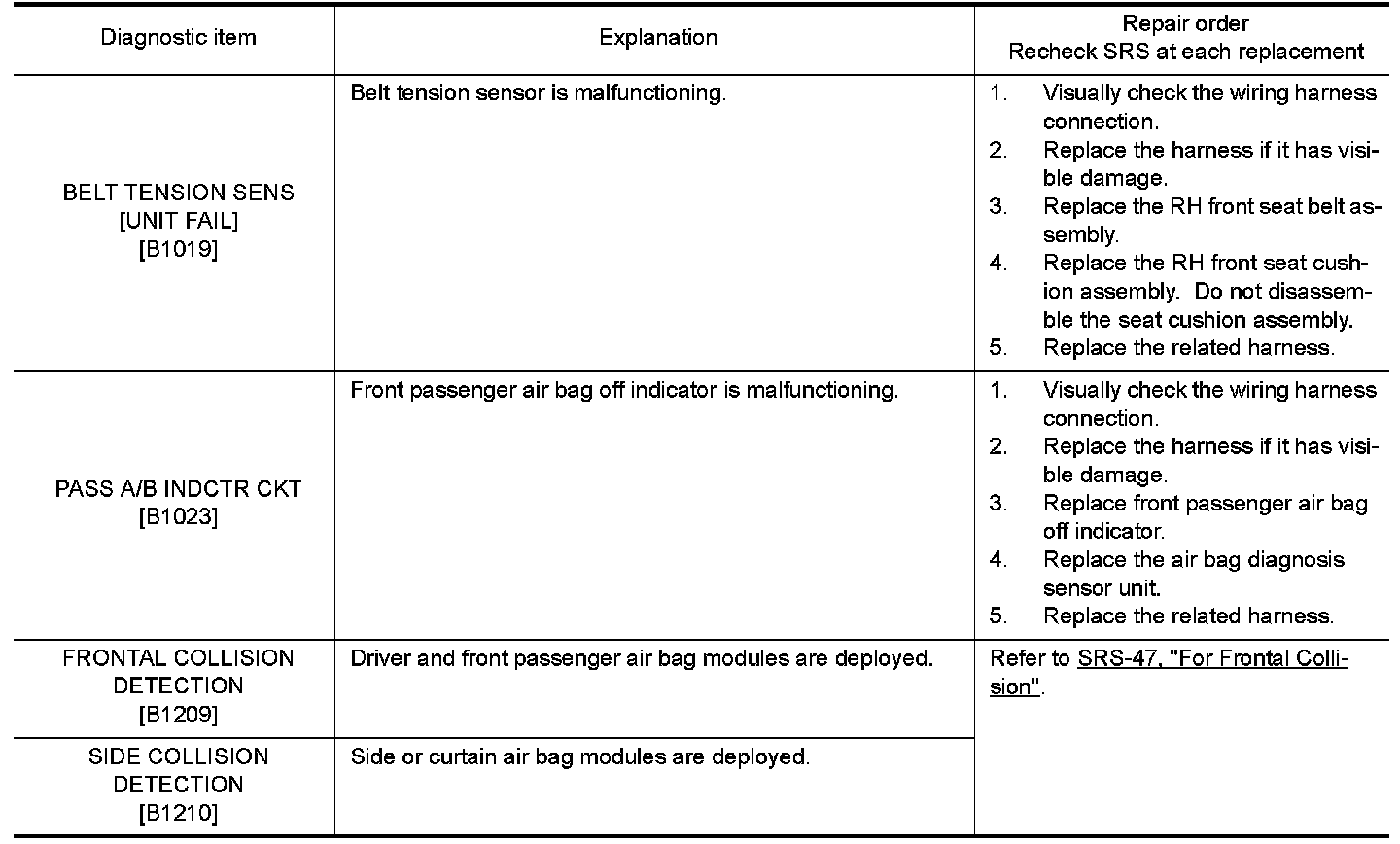

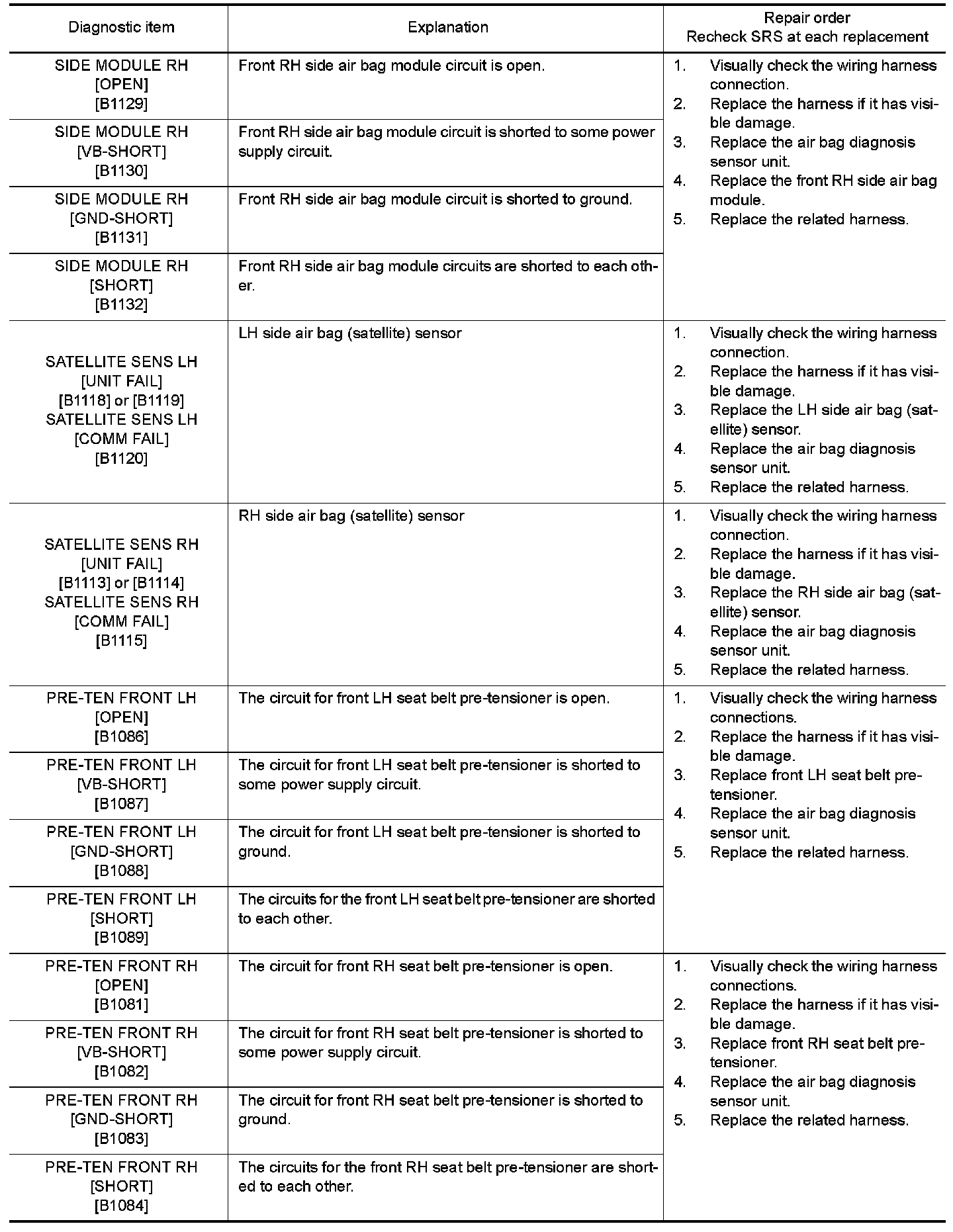

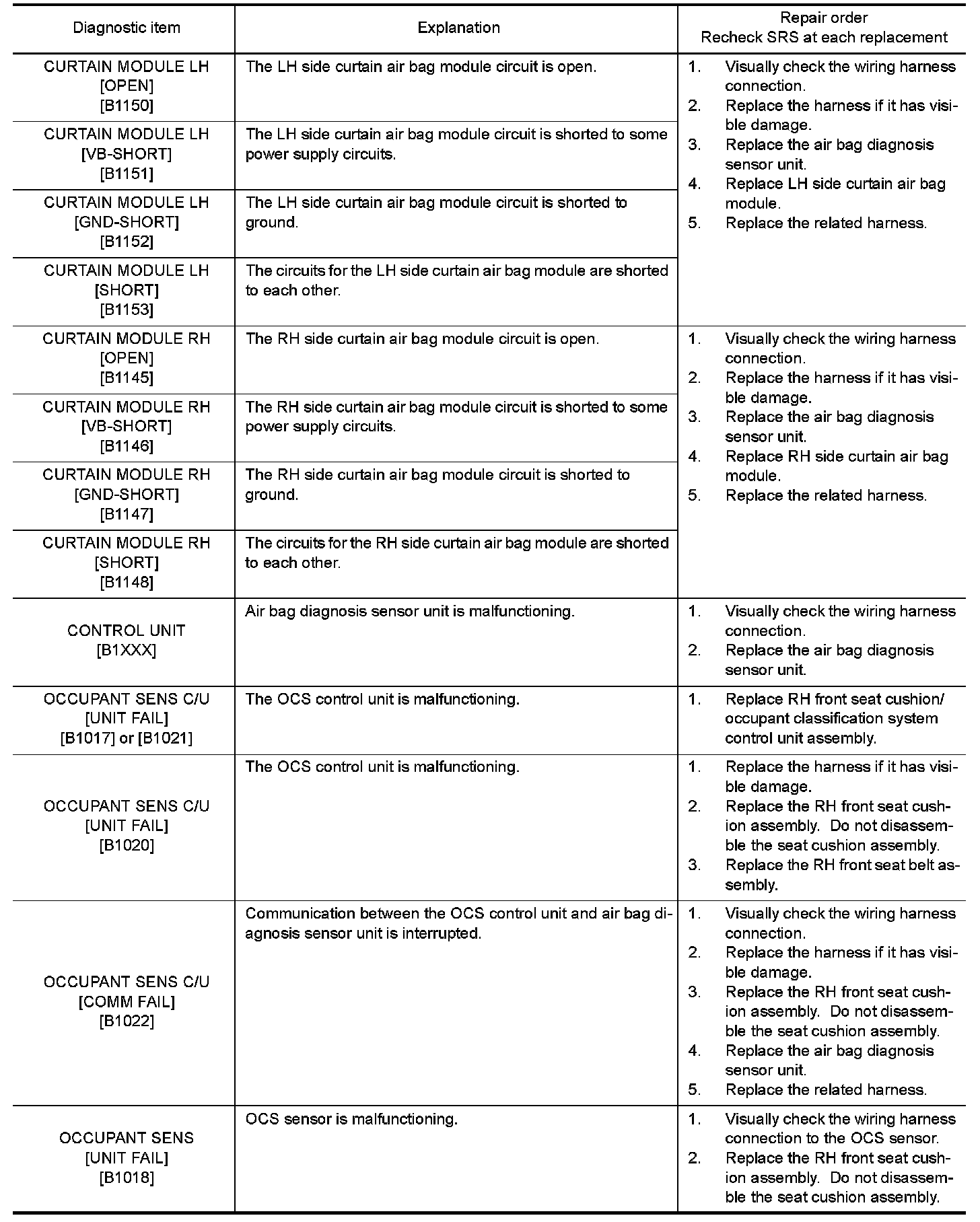

CONSULT Diagnostic Code Chart




















NOTE:
Follow the procedures in numerical order when performing repairs. Confirm whether the repair has been successful using air bag warning lamp or CONSULT after each repair. If malfunction is still observed, proceed to the next step. When malfunction has been eliminated, further repair work is not required.

DIAGNOSTIC PROCEDURE 3

Final Check of SRS Using CONSULT-Diagnosis Mode
1.If no DTC is detected on "SELF-DIAG [CURRENT]", repair of SRS is completed. Go to step 2.
If any DTC is detected on "SELF-DIAG [CURRENT]", the malfunctioning part has not been repaired completely or another malfunctioning part is being detected. Go to "DIAGNOSTIC PROCEDURE 2".
2.Touch "ERASE".
NOTE:
Touch "ERASE" to clear the memory of the malfunction ("SELF-DIAG [PAST]").
If the memory of the malfunction in "SELF-DIAG [PAST]" is not erased, the User mode shows the system malfunction by the operation of the warning lamp even if the malfunction is repaired completely.
3.Touch "BACK" on CONSULT screen. Touch "SELF-DIAG [PAST]".
4.Check that no malfunction is detected on "SELF-DIAG [PAST]".
5.Touch "BACK" on CONSULT screen to return to User mode from Diagnosis mode.
6.Turn ignition switch OFF then turn off and disconnect CONSULT.
7.Go to SRS Operation Check.

DIAGNOSTIC PROCEDURE 4

Check SRS Repair History

1. CONSIDER POSSIBILITY THAT SELF-DIAGNOSTIC RESULT WAS NOT ERASED AFTER REPAIR

Check repair history of the SRS.
Have any previous repairs been made to the SRS?
Yes- Self-diagnostic result "SELF-DIAG [PAST]" (previously stored in the memory) might not be erased after repair. Go to "DIAGNOSTIC PROCEDURE 3".
No- Go to "DIAGNOSTIC PROCEDURE 5".

DIAGNOSTIC PROCEDURE 5

Check SRS Intermittent Malfunction Using CONSULT-Diagnosis Mode
1.If diagnostic codes are displayed on "SELF-DIAG [PAST]", go to step 4.
If no malfunction is detected on "SELF-DIAG [PAST]" touch "BACK".
2.Touch "TROUBLE DIAG RECORD".
NOTE:
With "TROUBLE DIAG RECORD", diagnosis results previously erased by a reset operation can be displayed.
3.Diagnostic code is displayed on "TROUBLE DIAG RECORD".
4.Write down information from "TROUBLE DIAG RECORD" screen.
5.Compare diagnostic codes to "CONSULT Diagnostic Code Chart".
6.Touch "BACK" on CONSULT screen.
7.Turn ignition switch OFF, then turn off and disconnect CONSULT, and both battery cables.
8.Repair the system as outlined by the "Repair order" in "CONSULT Diagnostic Code Chart", that corresponds to the self-diagnostic result. For replacement procedure of component parts, refer to the Removal and Installation procedure for the appropriate component.
9.Go to "DIAGNOSTIC PROCEDURE 3", for final checking.
