Engine Can not Be Started In "P" Or "N" Position

TROUBLE DIAGNOSIS FOR SYMPTOMS

Engine Cannot Be Started in "P" or "N" Position


SYMPTOM:

-Engine cannot be started with selector lever in "P" or "N" position.
-Engine can be started with selector lever in "D", "L" or "R" position.

DIAGNOSTIC PROCEDURE


1. CHECK TRANSMISSION RANGE SWITCH

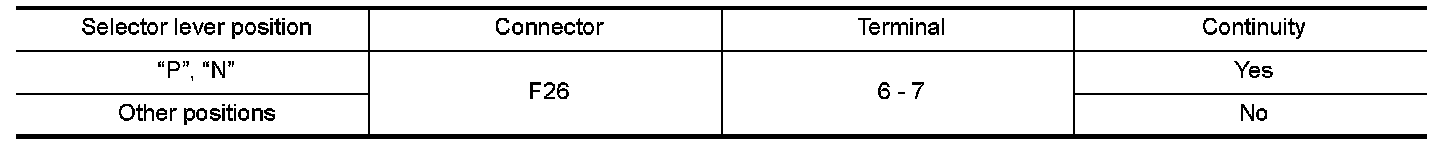

Check continuity between transmission range switch harness connector terminals. CVT Trouble Diagnosis.





OK or NG
YES- GO TO 3.
NO- GO TO 2.

2. CHECK CVT POSITION

Check CVT position. Testing and Inspection.
OK or NG
OK- Adjust CVT position. Shift Control System.
NG-Check transmission range switch (Refer to test group 1.) again after adjusting transmission range switch (CVT Shift Control System).
- If OK, INSPECTION END
- If NG, repair or replace transmission range switch. Service and Repair.

3. CHECK STARTING SYSTEM

Check starting system. Refer to {LINK_TO:0000000007403047}.
OK or NG
OK-INSPECTION END
NG- Repair or replace damaged parts.
