CAN Communication Signal Chart

CAN COMMUNICATION SYSTEM

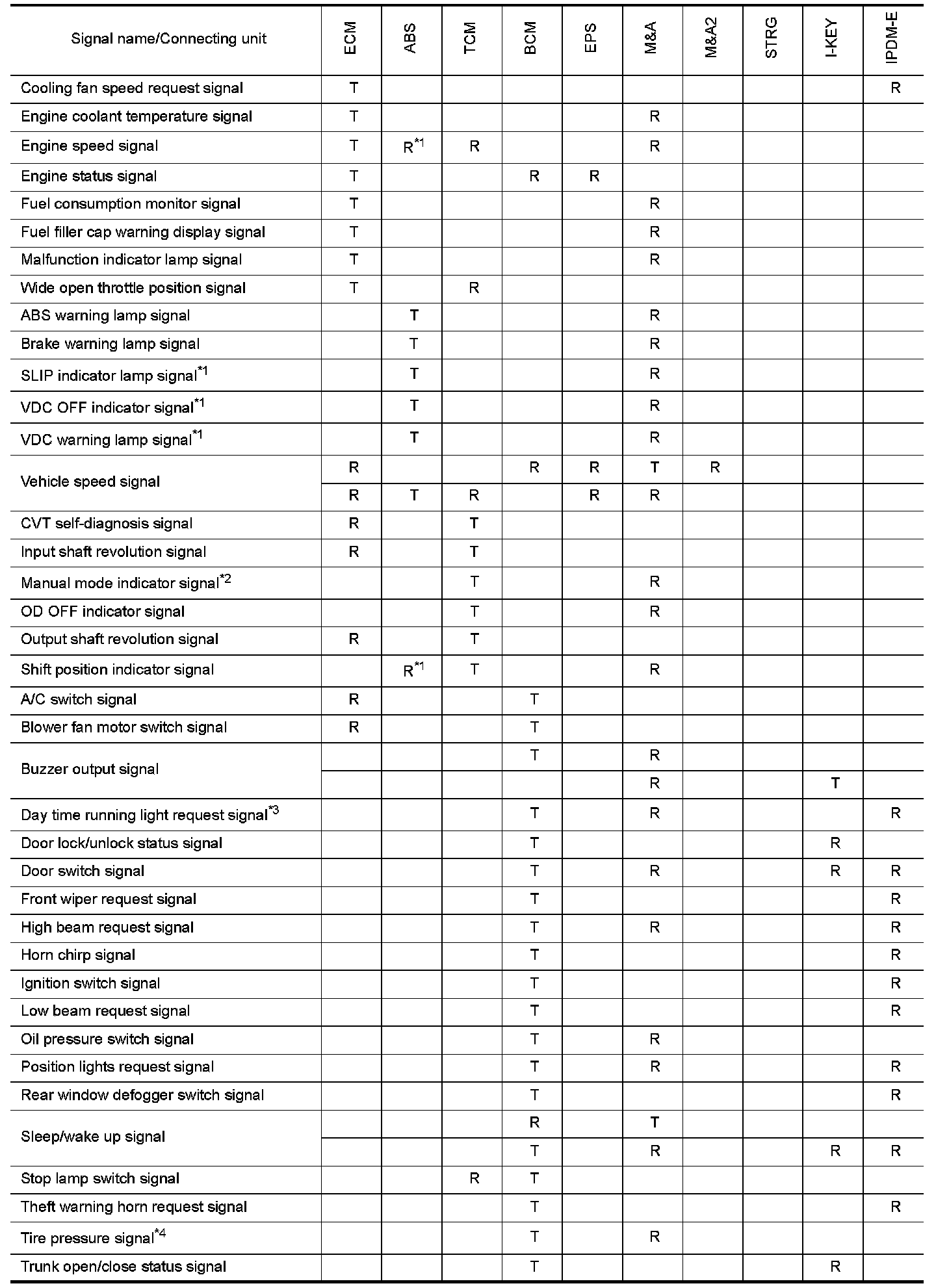

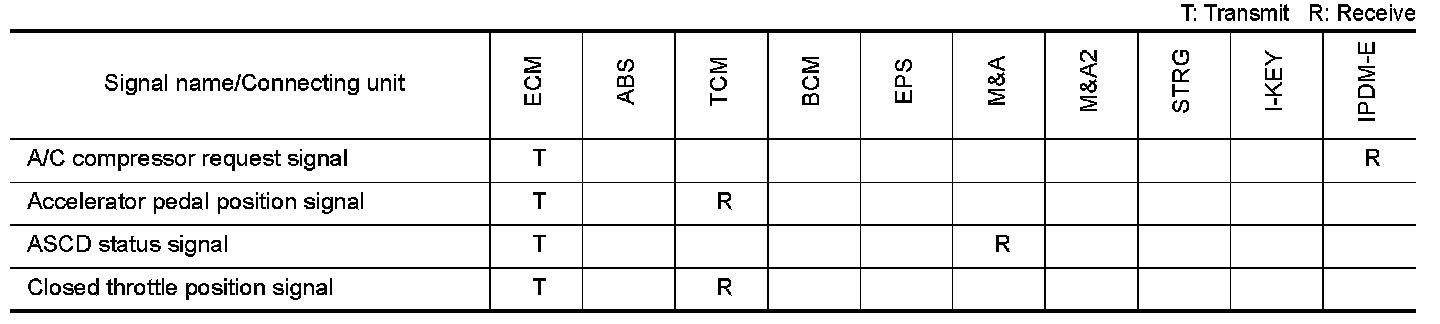

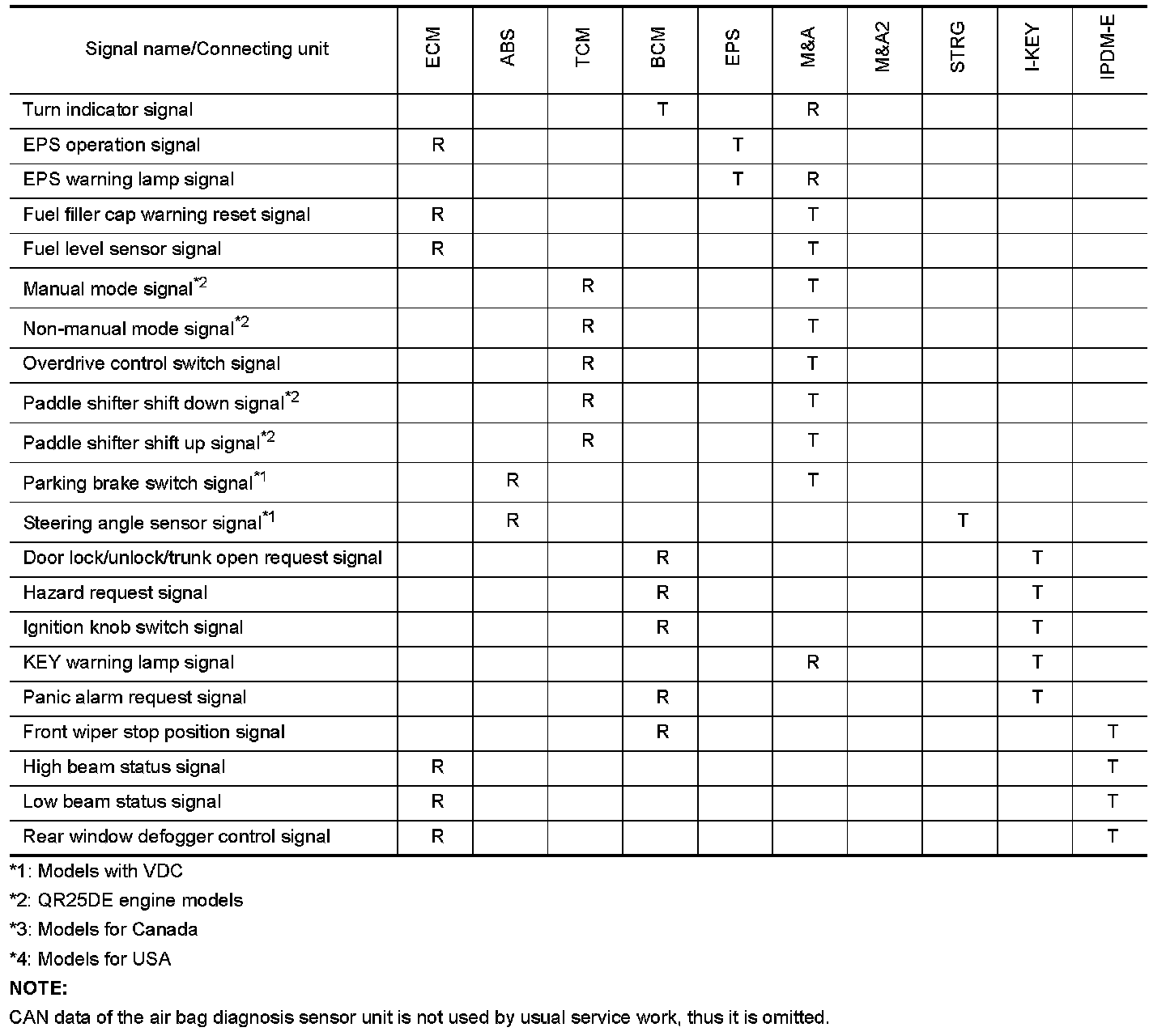

CAN Communication Signal Chart

How To Use CAN Communication Signal Chart for how to use CAN communication signal chart.
NOTE:
Abbreviation List for the abbreviations of the connecting units.
T: Transmit R: Receive
