Rear Wheel Hub

WHEEL HUB

Removal and Installation

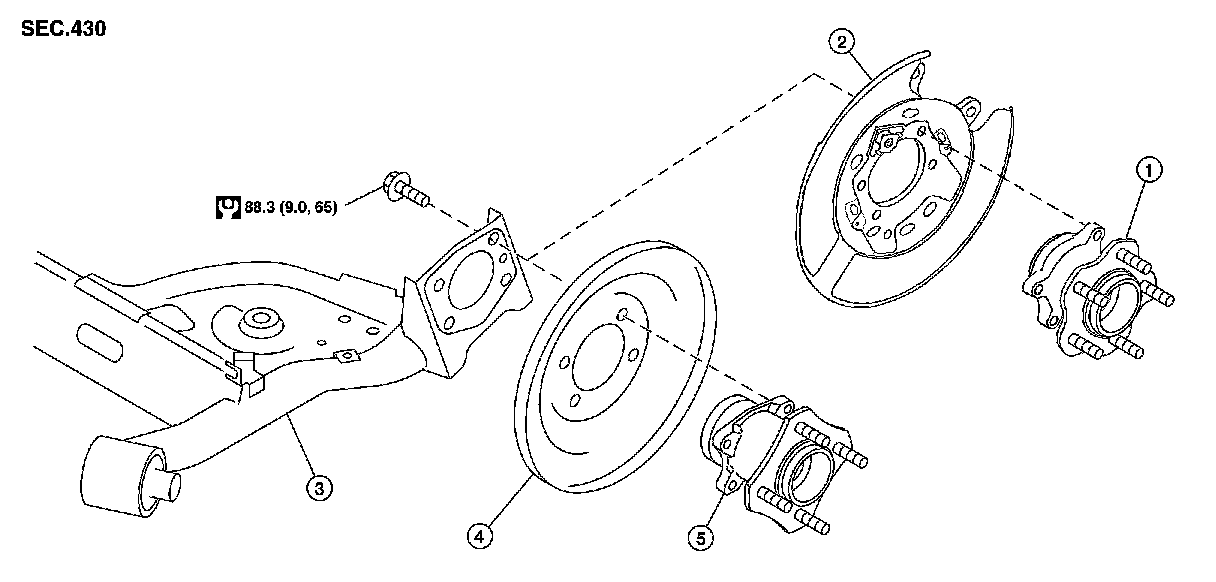

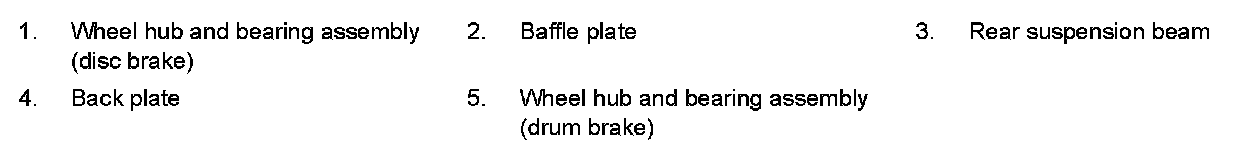

COMPONENTS












REMOVAL

1.Remove wheel and tire using power tool.
2.Remove wheel sensor from wheel hub and bearing assembly, if equipped. Wheel Sensor.

CAUTION:
Do not pull on wheel sensor harness.
3.Remove the brake drum or disc brake rotor. Removal And Installation (Drum brake), Removal And Installation (Disc brake).
4.Remove wheel hub and bearing assembly bolts, and then remove wheel hub and bearing assembly.
5.Remove baffle plate or back plate, if necessary.
a.Remove parking brake rear cable from baffle plate or back plate. Adjustments.
b.Separate brake tube from wheel cylinder, if equipped. Removal And Installation.

INSPECTION AFTER REMOVAL

Check for any deformity, cracks, or other damage on the wheel hub assembly, replace if necessary.

CAUTION:
The wheel hub assembly does not require maintenance. If any of the following symptoms are noted, replace the wheel hub assembly.
- Growling noise is emitted from the wheel hub bearing during operation.
- Wheel hub bearing drags or turns roughly.

INSTALLATION

Installation is in the reverse order of removal.
- Tighten wheel nuts to specification. Adjustment.
