CONSULT Function (BCM)

HEADLAMP (FOR USA)

CONSULT Function (BCM)

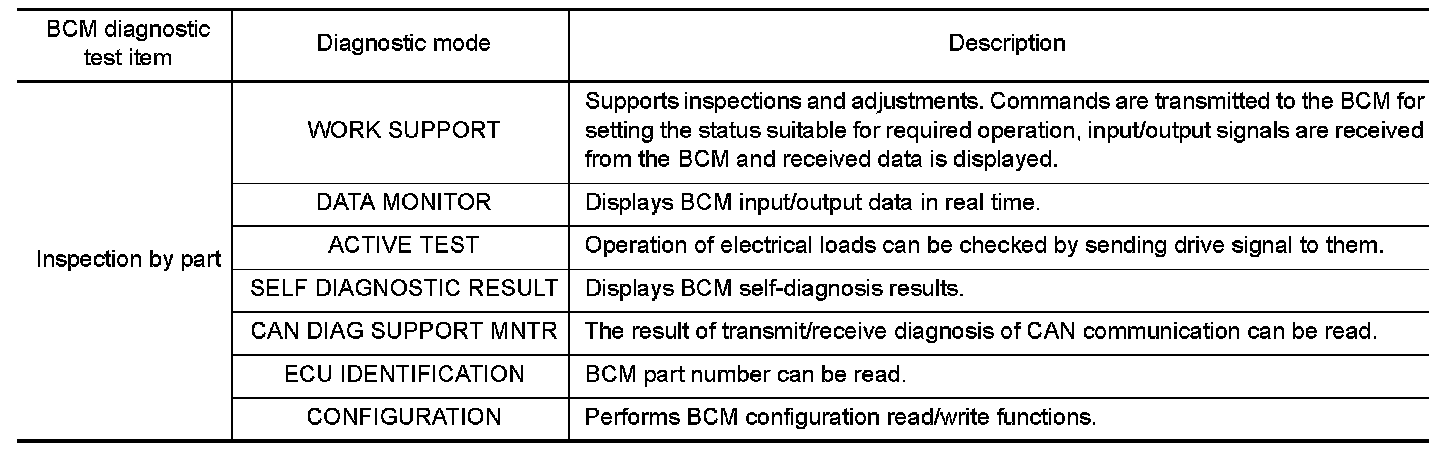

CONSULT can display each diagnostic item using the diagnostic test modes shown following.

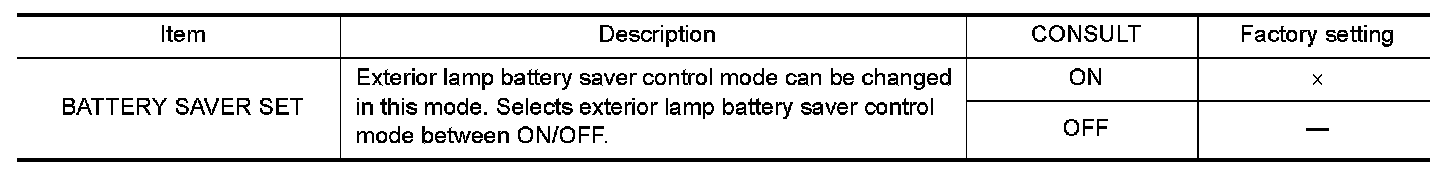

WORK SUPPORT

Display Item List

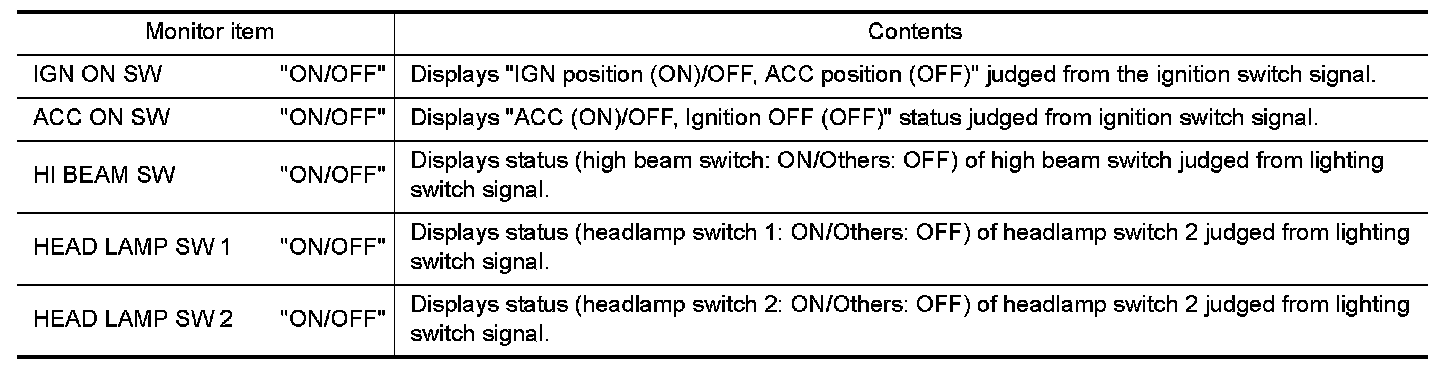

DATA MONITOR

Display Item List

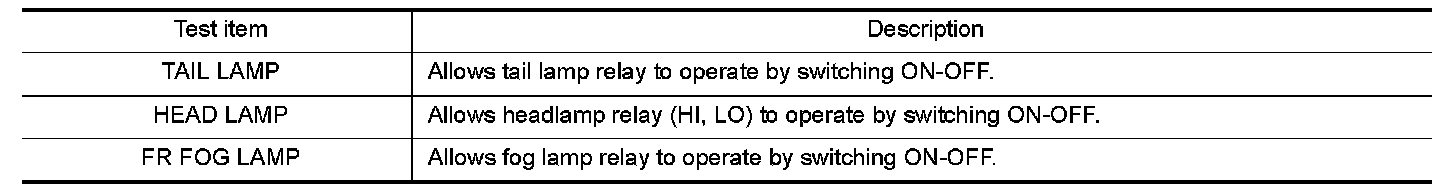

ACTIVE TEST

Display Item List






SELF-DIAGNOSTIC RESULTS

Display Item List
