Overhaul

HEADLAMP (FOR USA)

Disassembly and Assembly

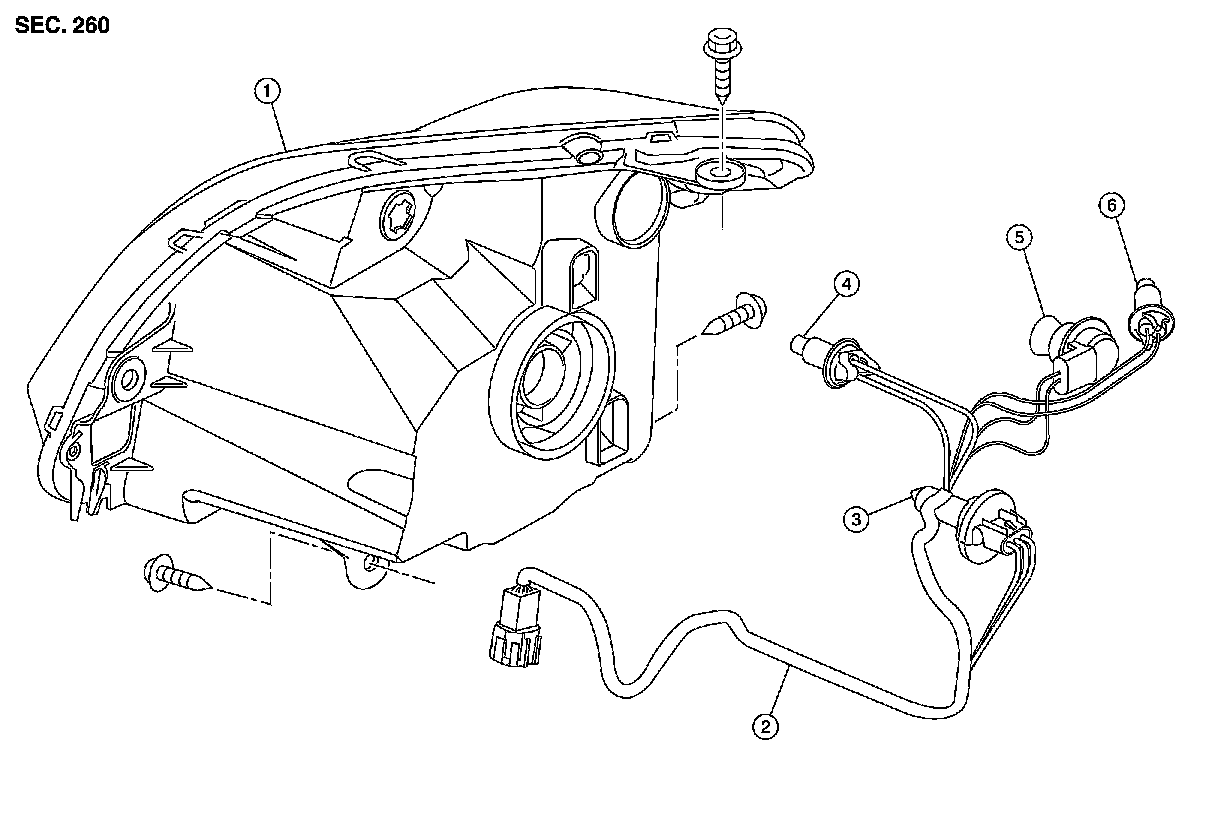

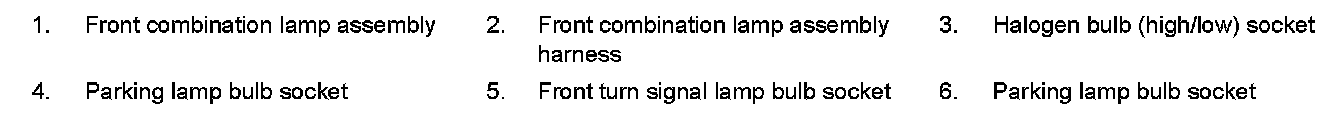

DISASSEMBLY


WARNING:
Do not touch bulb while it is lit or right after being turned off, burning may result.

CAUTION:
Do not touch the glass of the bulb directly by hand. Keep grease and other oily substances away from bulb.
1.Turn the halogen (high/low) bulb socket counterclockwise and remove.
2.Turn the parking lamp bulb socket counterclockwise and remove.
3.Turn the front turn signal lamp bulb socket counterclockwise and remove.
4.Turn parking lamp bulb counterclockwise and remove.
5.Detach the headlamp bulb harness from the front combination lamp assembly.

ASSEMBLY

Assembly is in the reverse order of disassembly.
