Se-R

FRONT FOG LAMP

Removal and Installation, SE-R


REMOVAL

1.Remove the clips and the splash shield.
2.Position aside the front fender protector as necessary. Removal And Installation

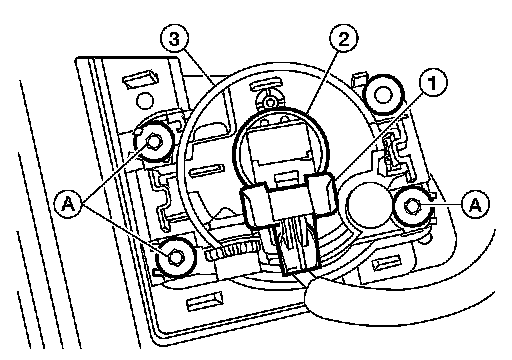

3.Disconnect the front fog lamp connector (1) from the fog lamp bulb (2).
4.Remove the front fog lamp screws (A) and remove the front fog lamp (3).

INSTALLATION

Installation is in the reverse order of removal.
