Water Temperature Signal Inspection

COMBINATION METERS

Water Temperature Signal Inspection

Symptom: Improper water temperature gauge indication.

1. CHECK COMBINATION METER INPUT SIGNAL

1.Start engine and select "METER/M&A" on CONSULT.

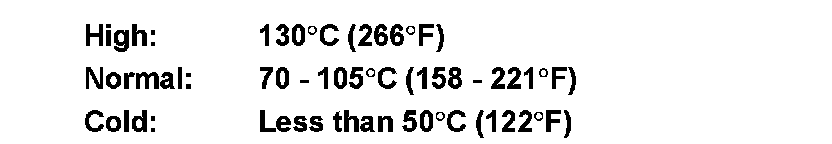

2.Run the engine at different temperatures and compare water temperature with "W TEMP METER" of "DATA MONITOR". Indication should be as follows:





OK or NG
OK- - Perform ECM self-diagnosis. CONSULT Function (Engine) (with
QR-25DE).
- Perform ECM self-diagnosis. For California) (with MR-20DE
for California).
- Perform ECM self-diagnosis. Except For California (with MR-20DE
except California).
NG- Replace combination meter. Removal And Installation.
