CONSULT Function (IPDM E/R)

TROUBLE DIAGNOSIS

CONSULT Function (IPDM E/R)

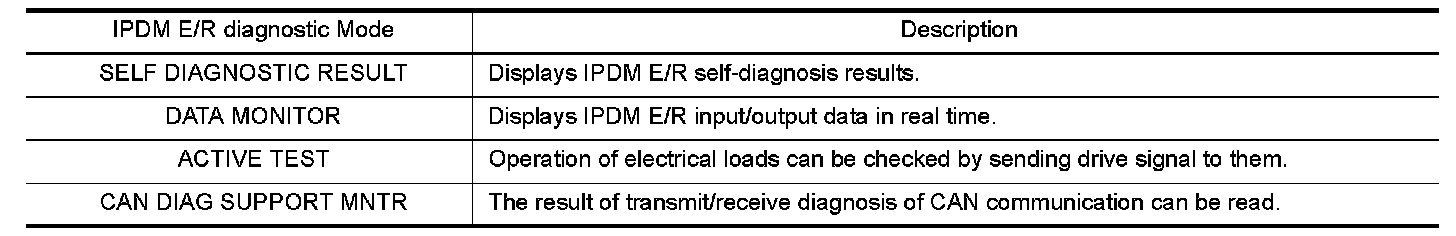

CONSULT can display each diagnostic item using the diagnostic test modes shown following.

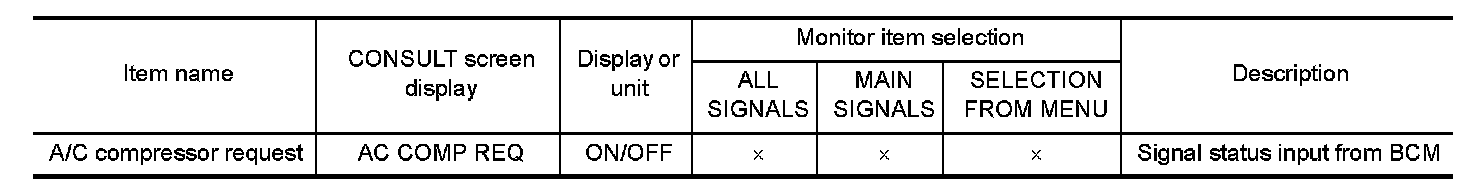

DATA MONITOR

All Signals, Main Signals, Selection from Menu





NOTE:
Perform monitoring of IPDM E/R data with the ignition switch ON. When the ignition switch is at ACC, the display may not be correct.
