CONSULT Function (BCM)

TROUBLE DIAGNOSIS

CONSULT Function (BCM)

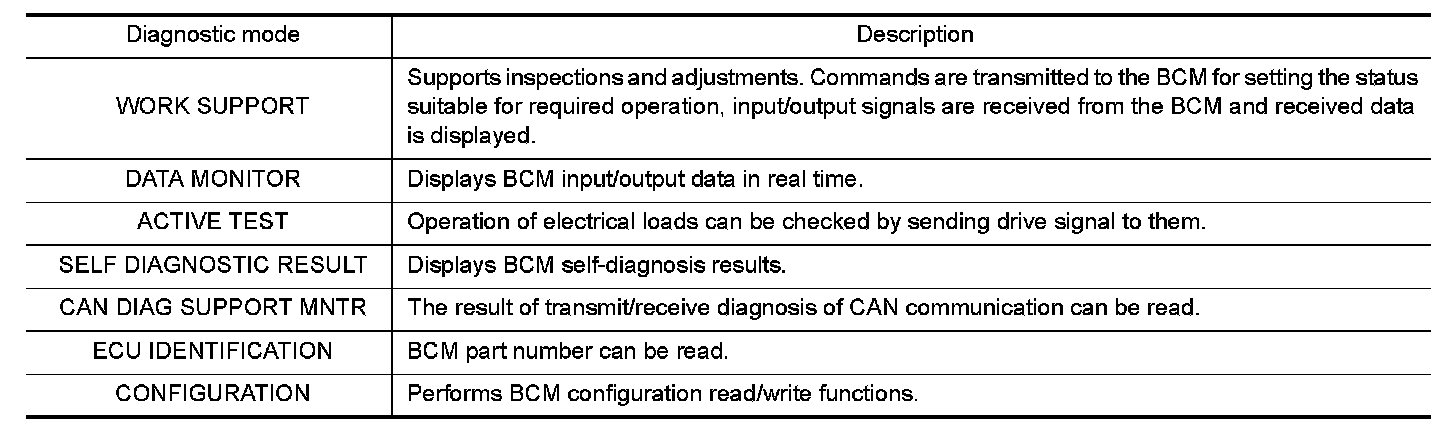

CONSULT can display each diagnostic item using the diagnostic test modes shown following.

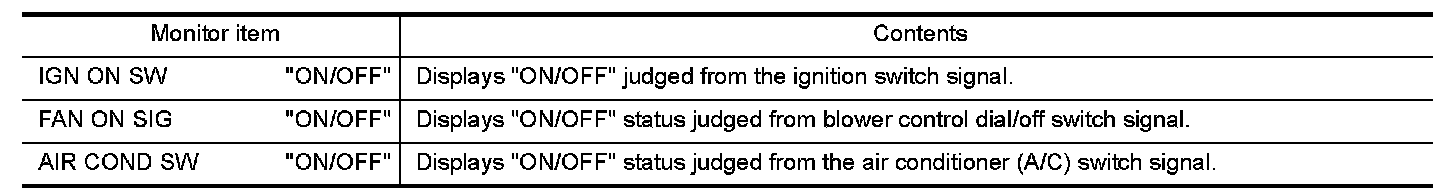

DATA MONITOR

Display Item List

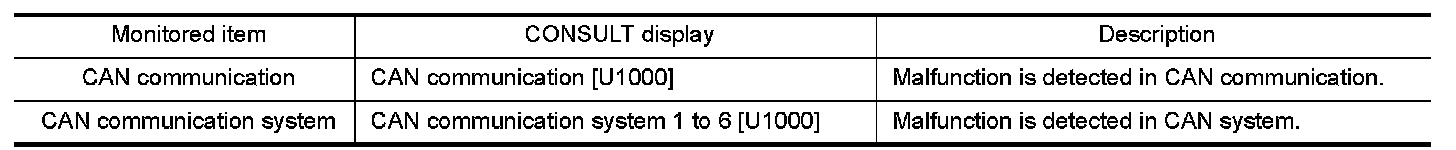

SELF-DIAGNOSTIC RESULTS

Display Item List
