Pinout Values and Diagnostic Parameters

TROUBLE DIAGNOSIS

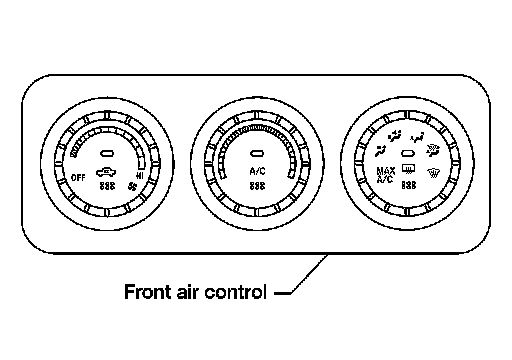

Front Air Control Terminal and Reference Value


INSPECTION OF FRONT AIR CONTROL






- Measure voltage between each terminal and body ground by following Terminals and Reference Value for front air control.

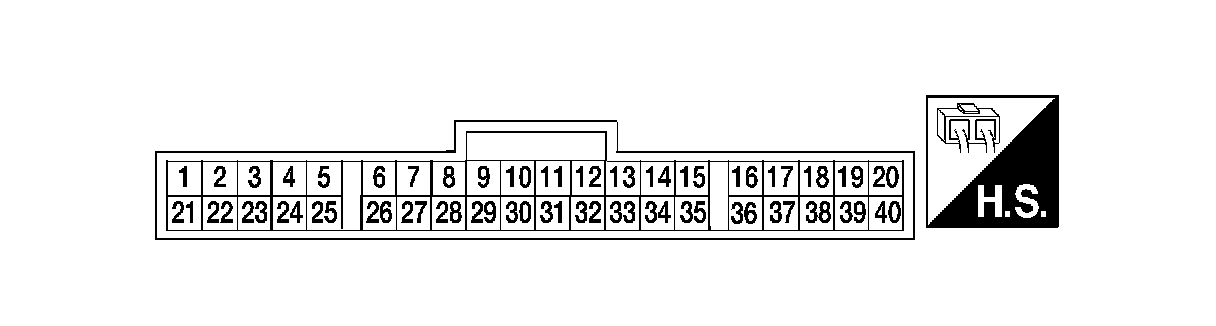

FRONT AIR CONTROL HARNESS CONNECTOR TERMINAL LAYOUT

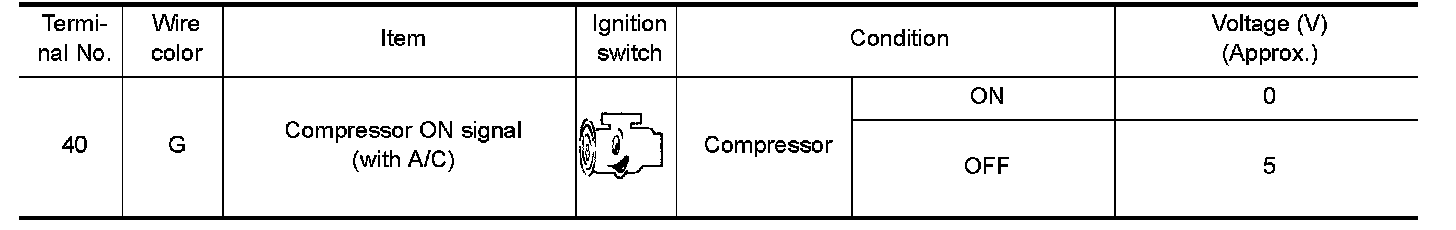

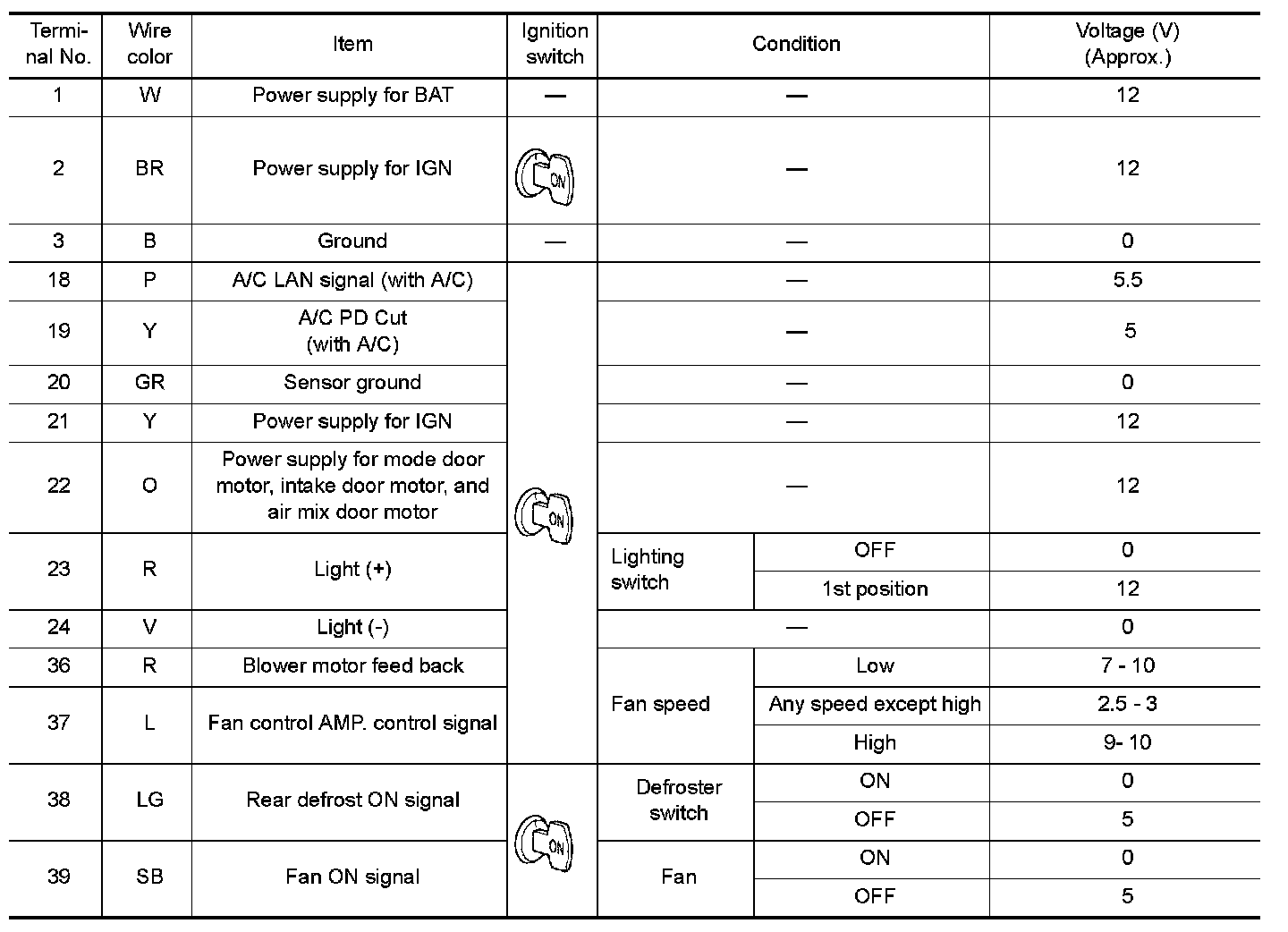

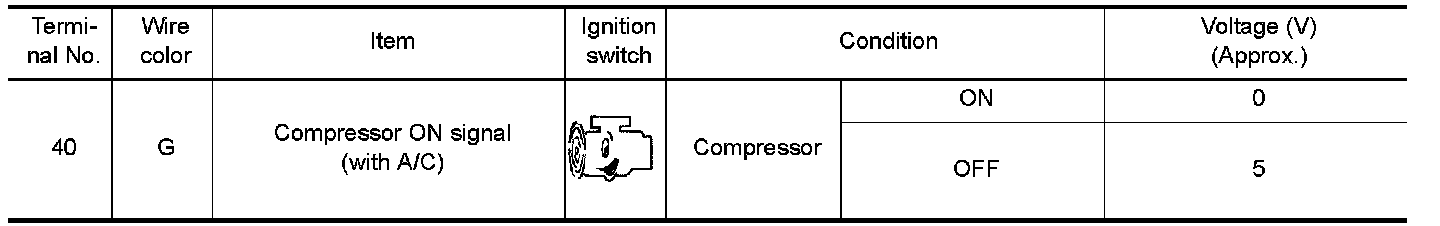

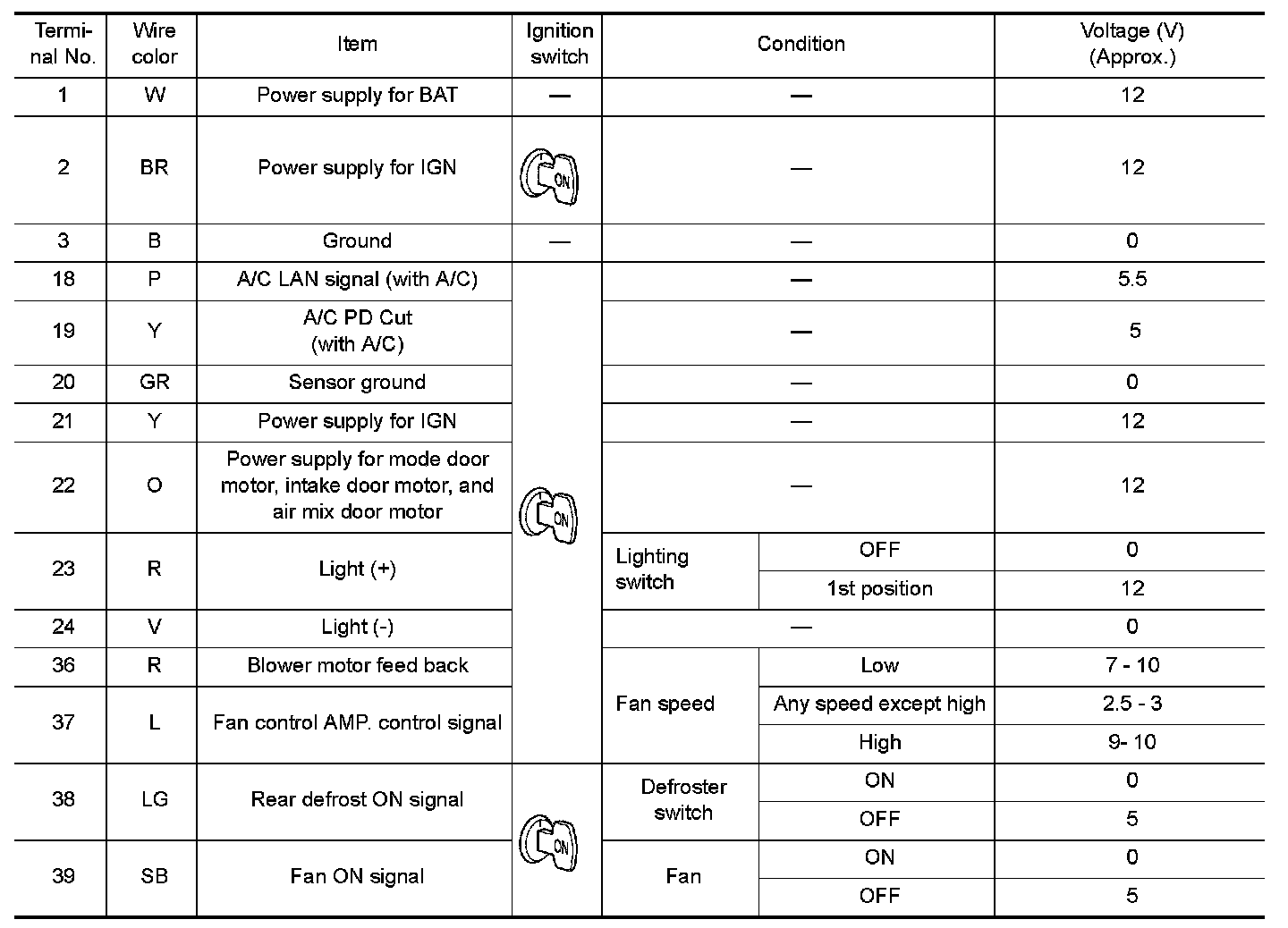

TERMINAL AND REFERENCE VALUES FOR FRONT AIR CONTROL
