Overview Air Conditioner LAN Control System

AIR CONDITIONER CONTROL

Overview Air Conditioner LAN Control System

The LAN (local area network) system consists of front air control, air mix door motor, intake door motor, and mode door motor.

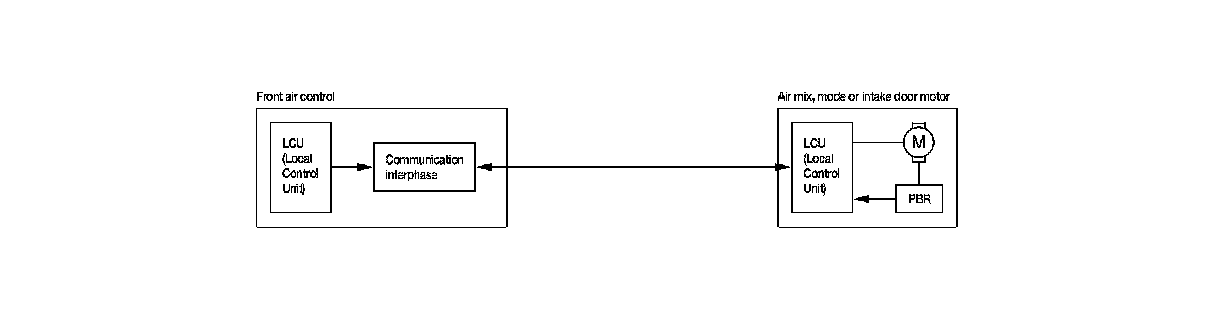

A configuration of these components is shown in the diagram below.
