Camshaft Gear/Sprocket: Specifications




Camshaft Gear/Sprocket

Camshaft sprocket (EXH) 88.2 N.m (9.0 kg-m, 65 ft-lb)

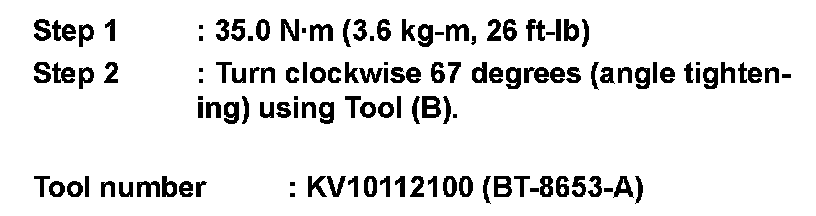

Camshaft (INT) sprocket bolt. with the following steps.
