Disassembly And Assembly

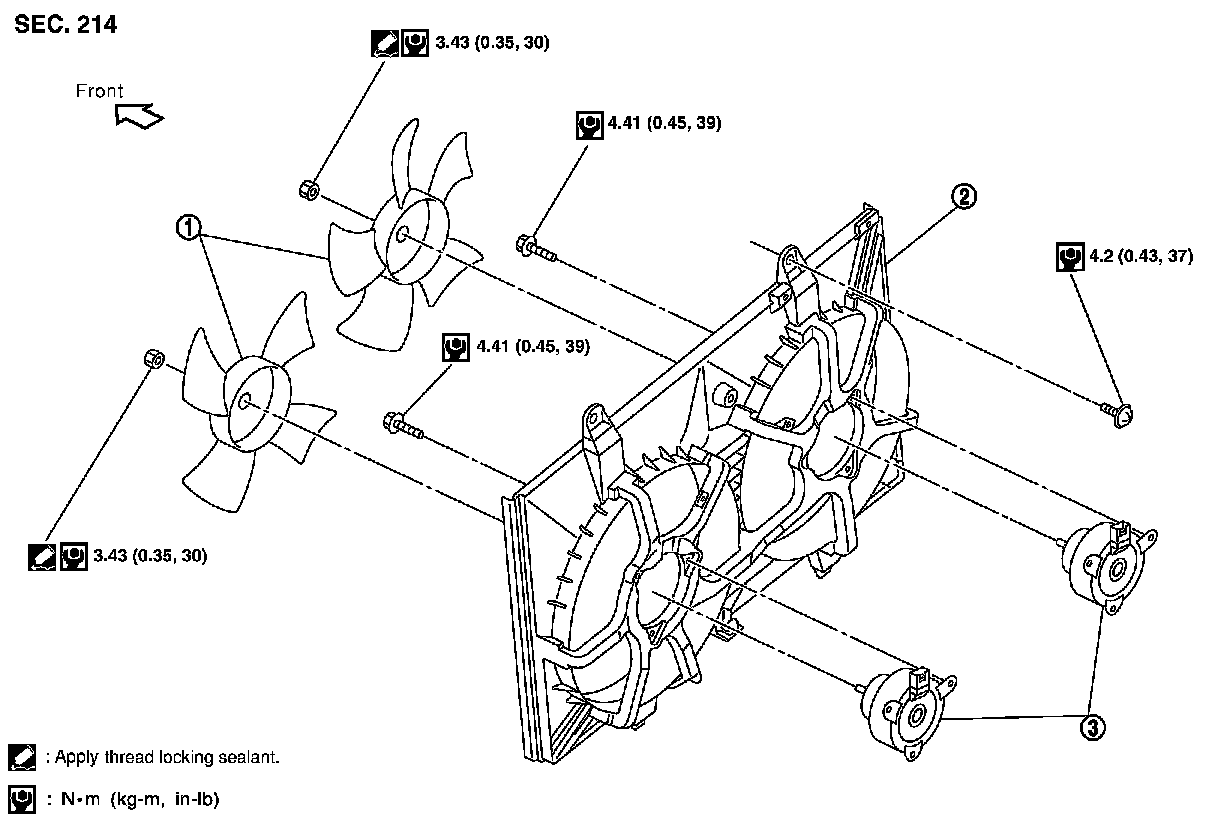

COOLING FAN

Disassembly and Assembly












DISASSEMBLY

1.Remove fan blades from fan motors.
2.Remove fan motors from fan shroud.

ASSEMBLY

Assembly is in the reverse order of disassembly.
