Without Navigation




AUDIO

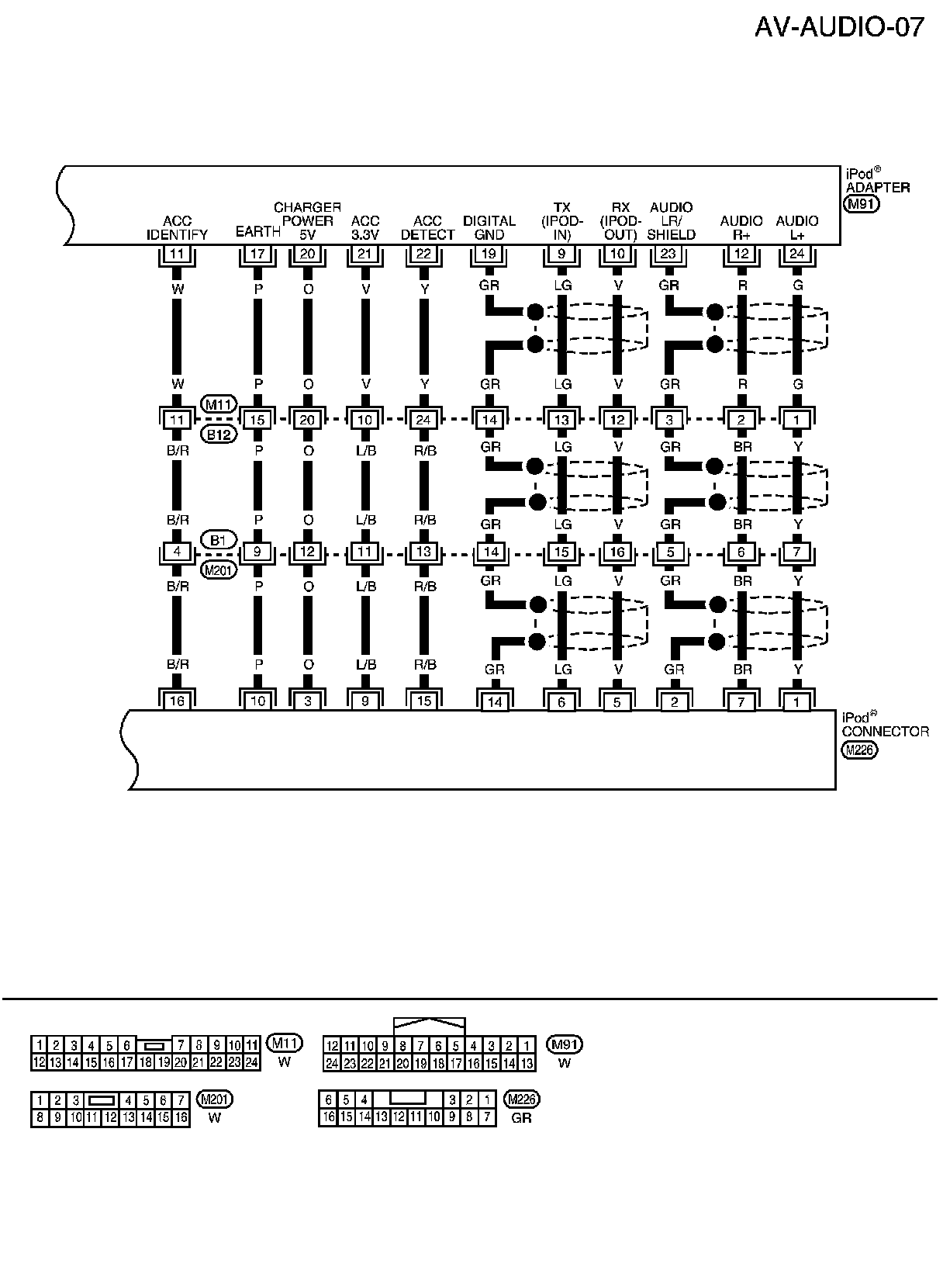

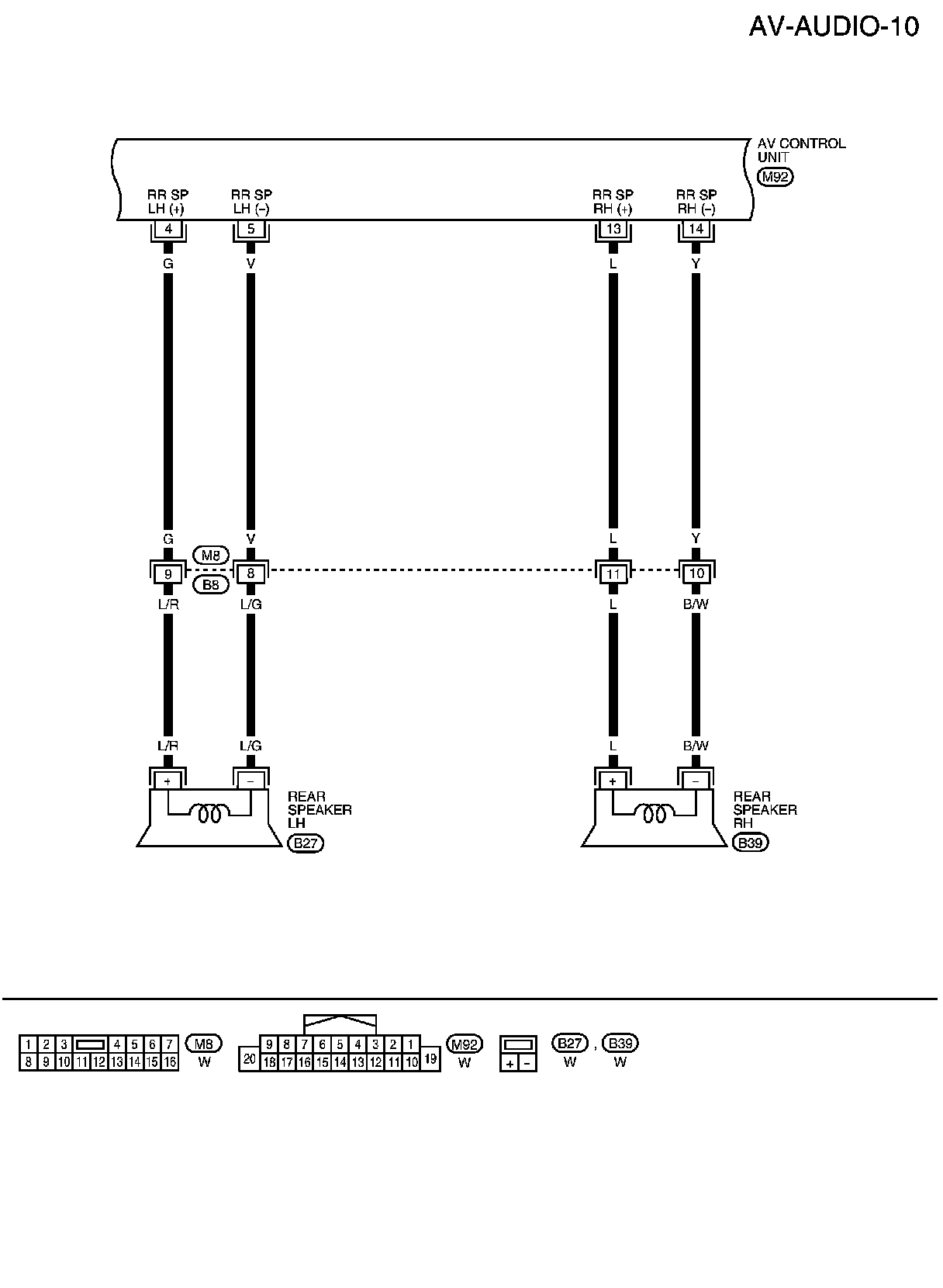

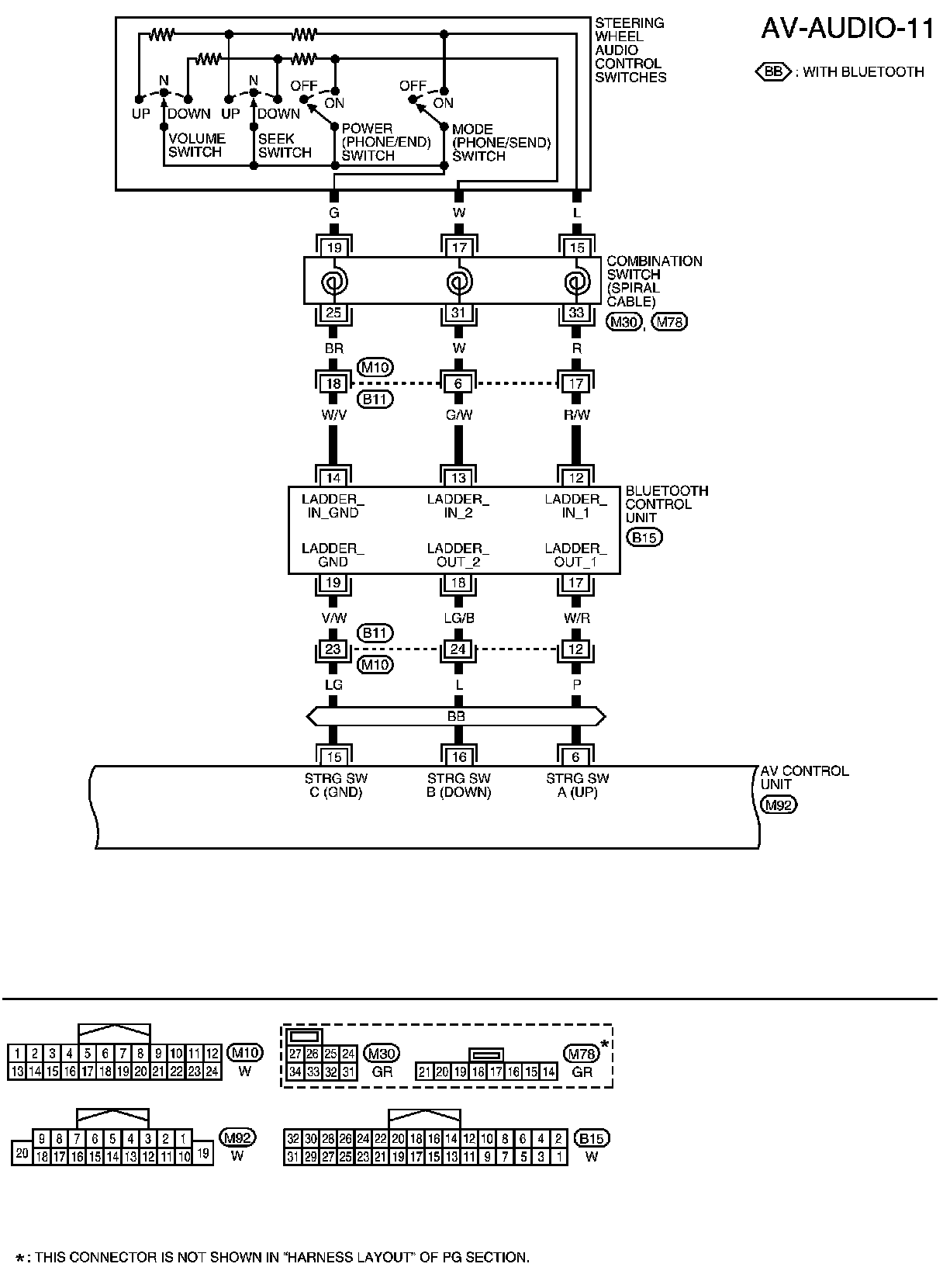

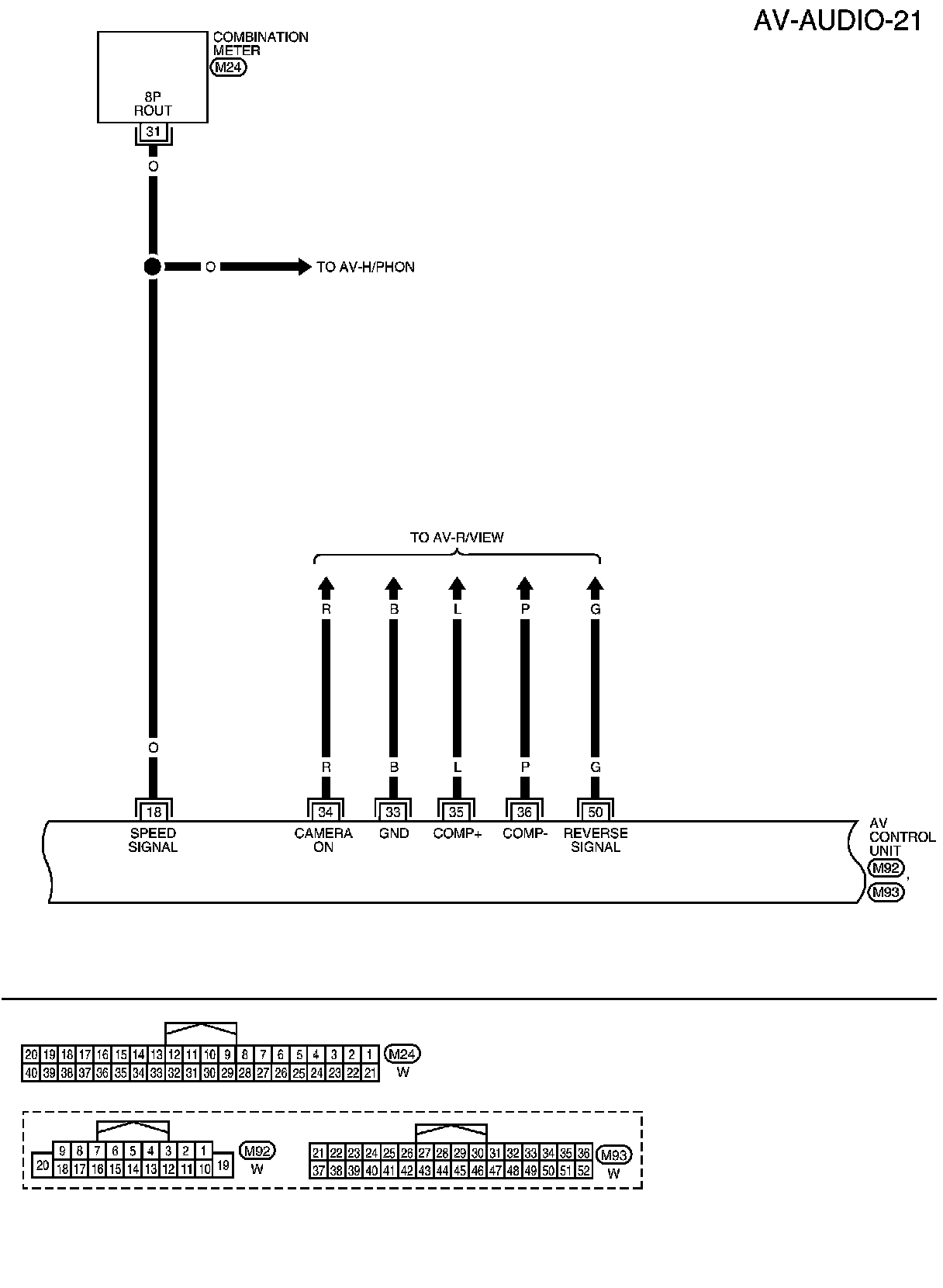

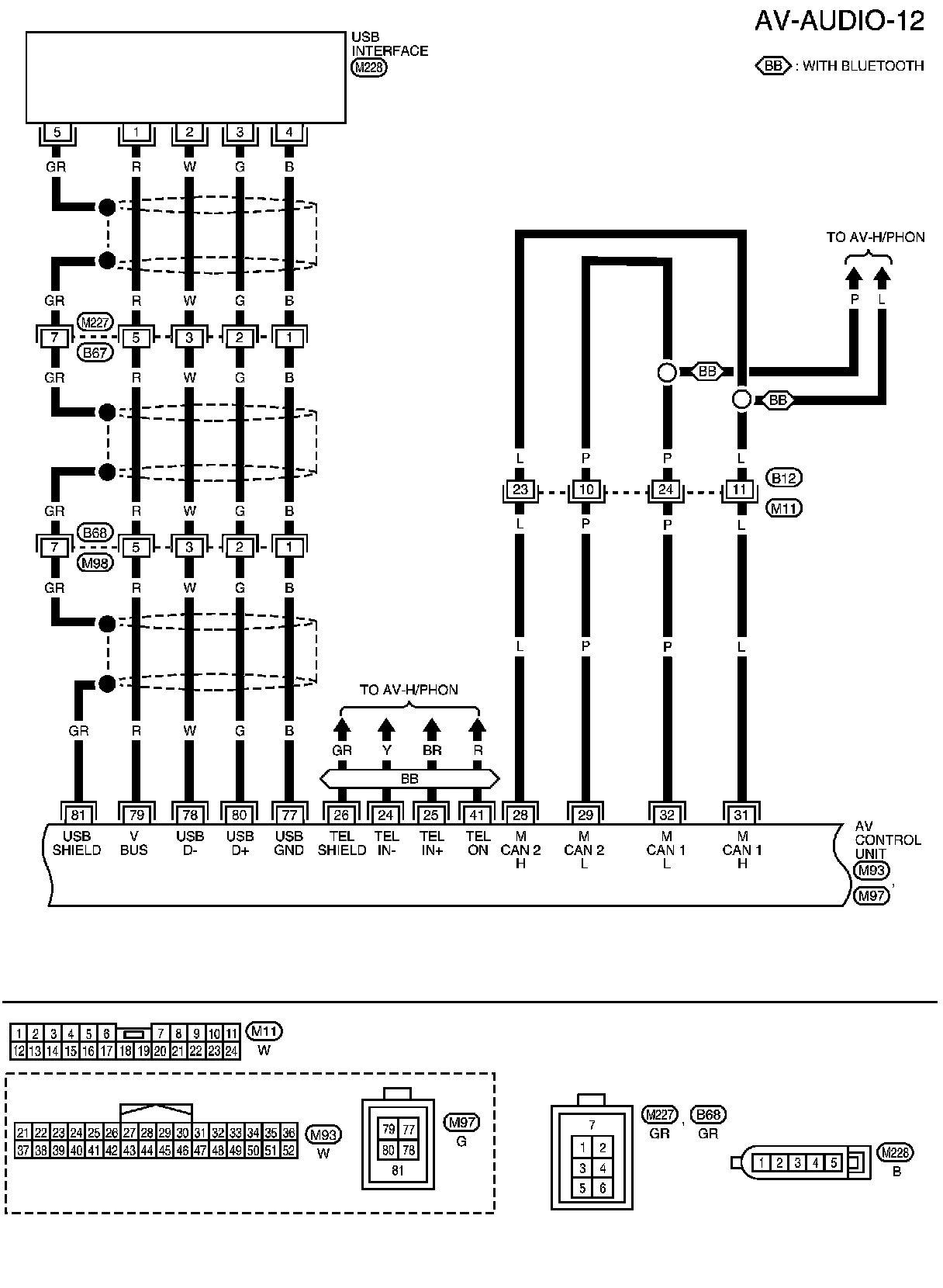

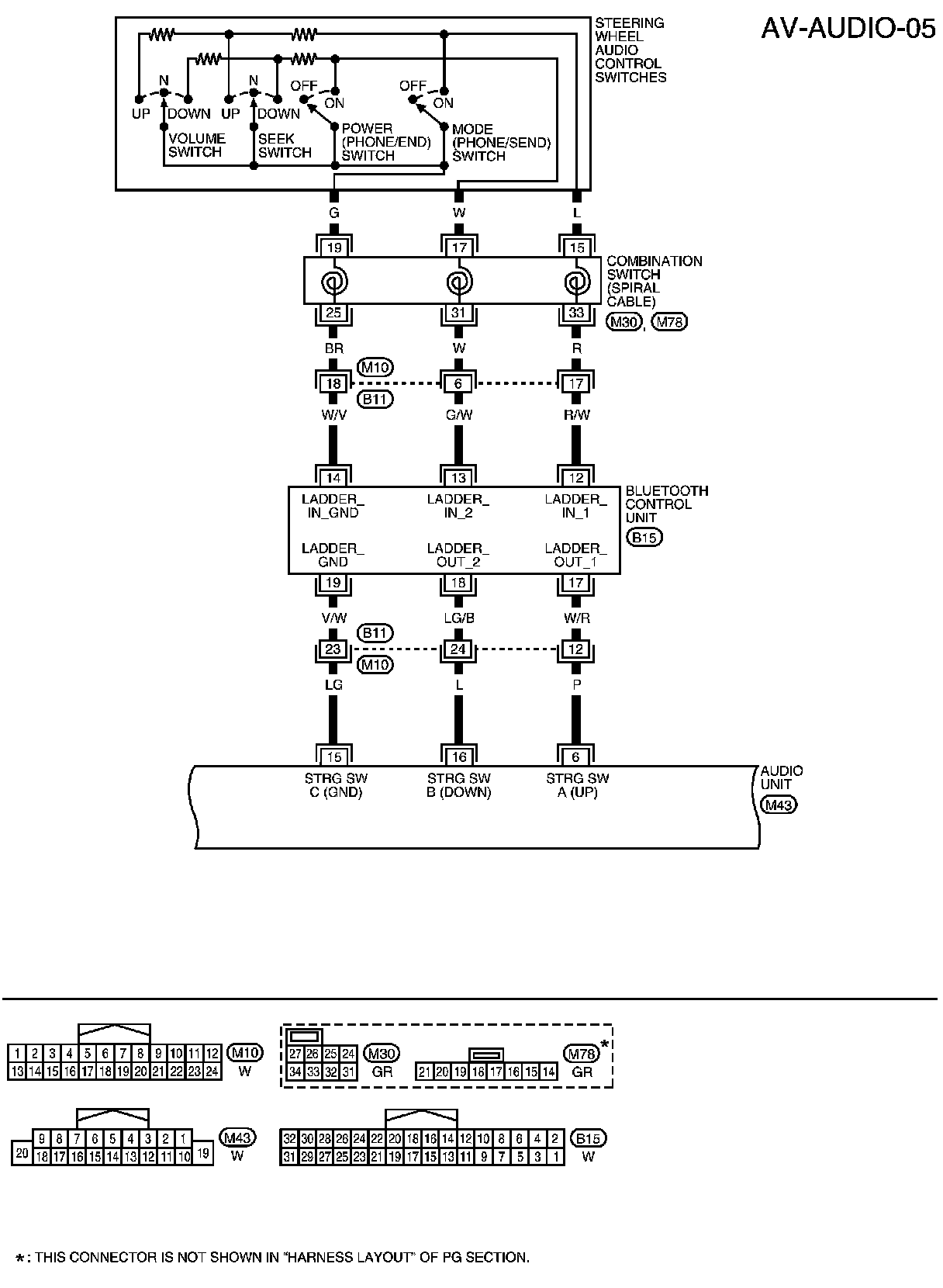

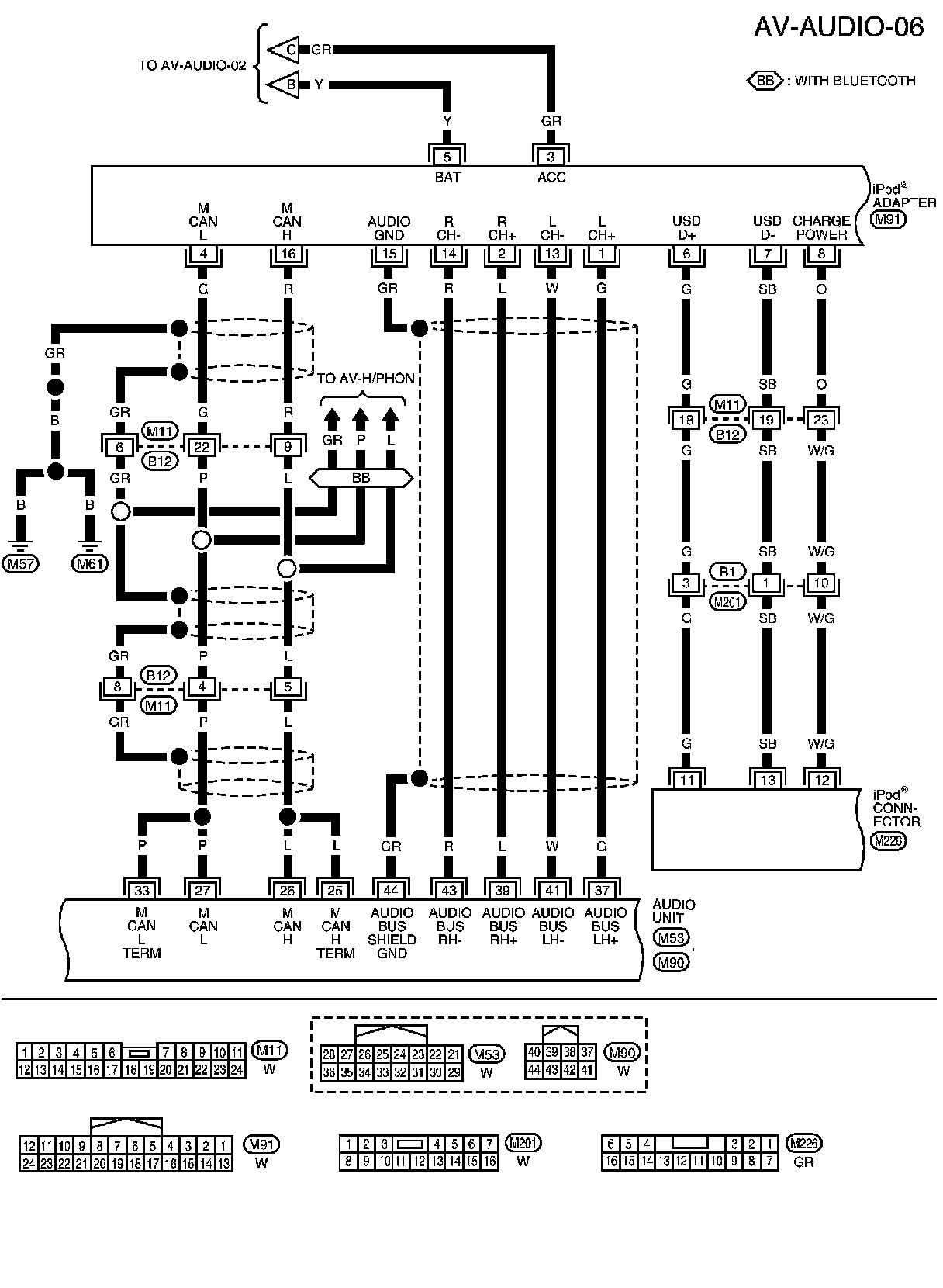

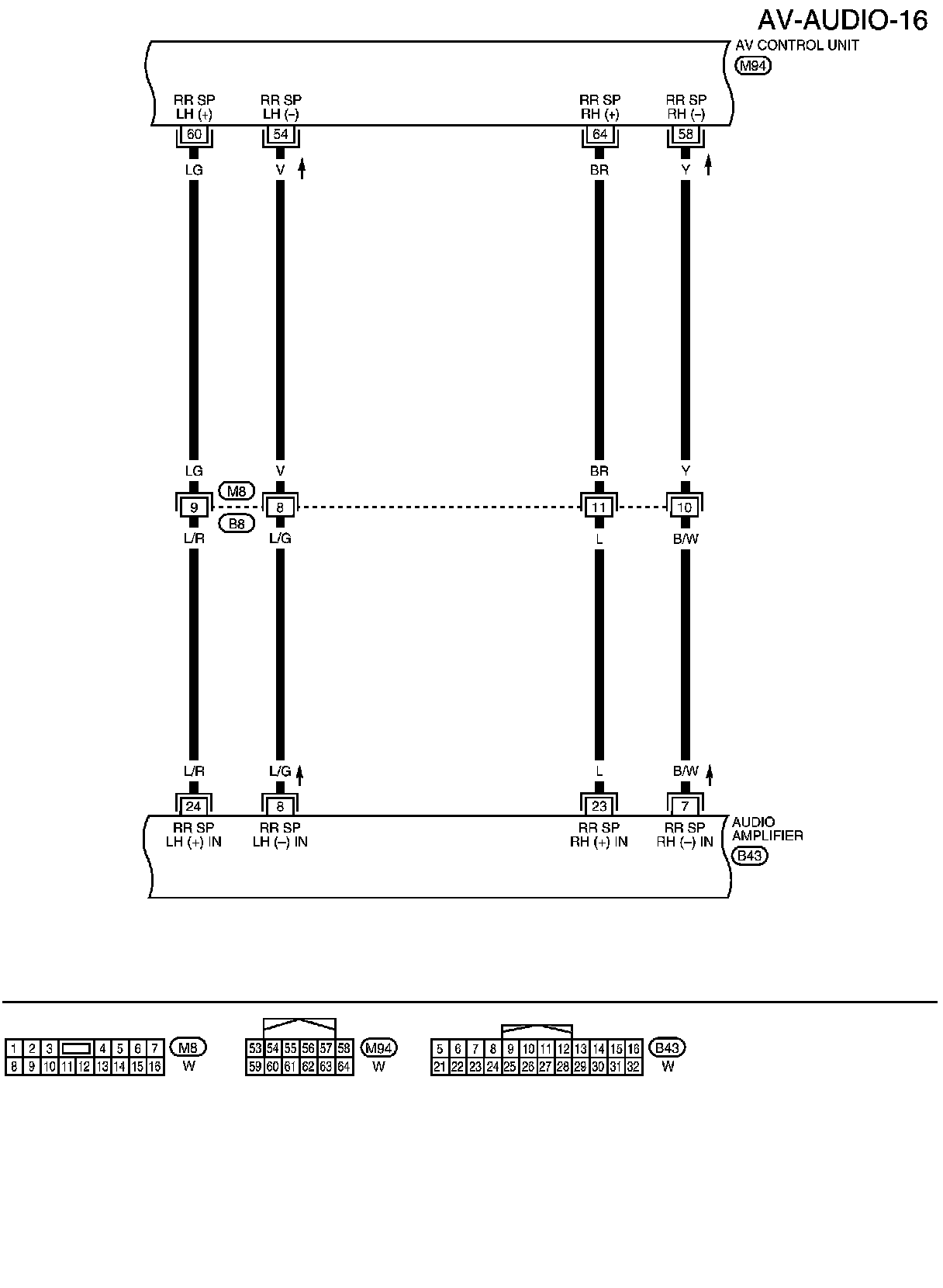

Wiring Diagram - AUDIO

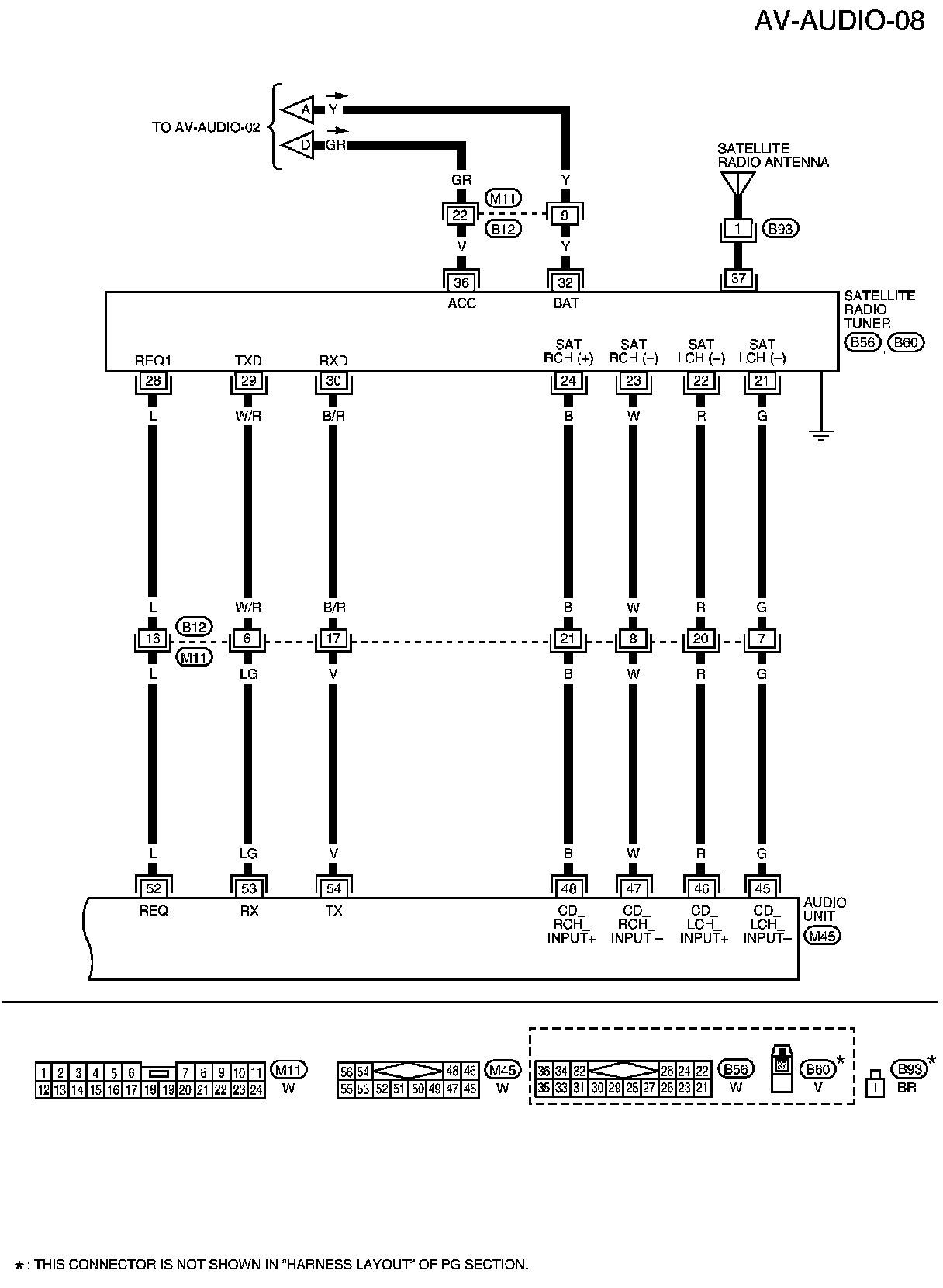

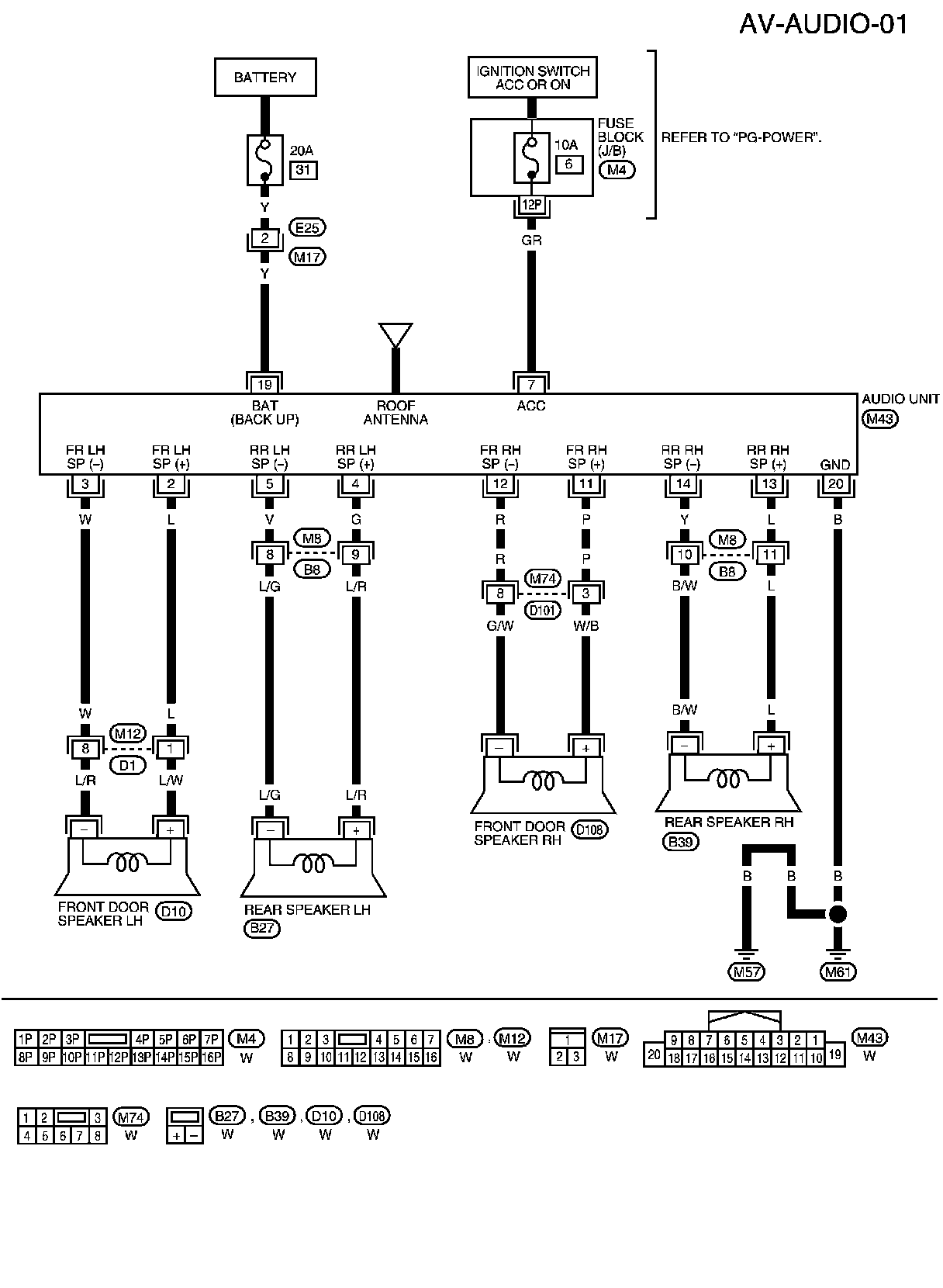

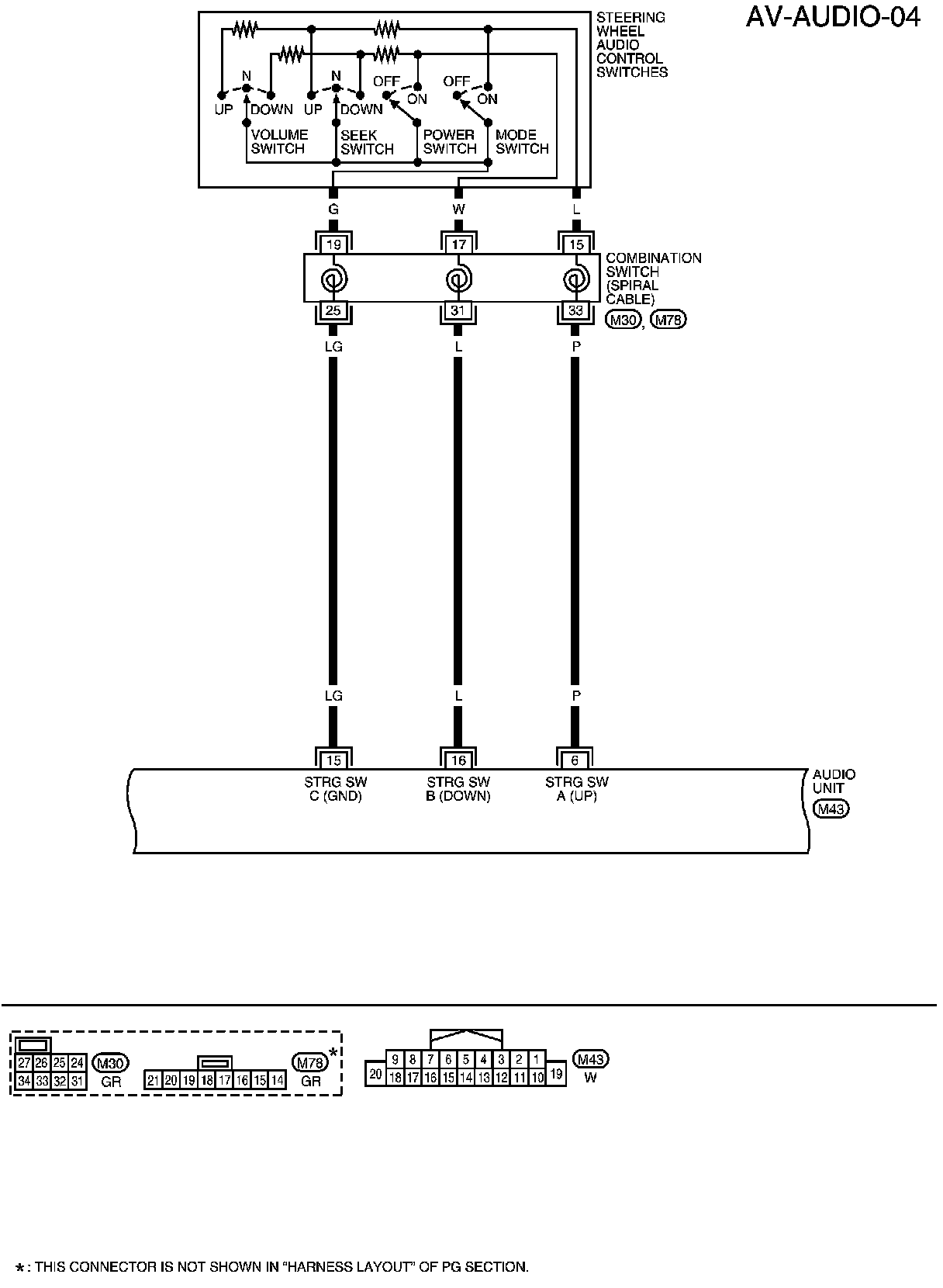

BASE SYSTEM

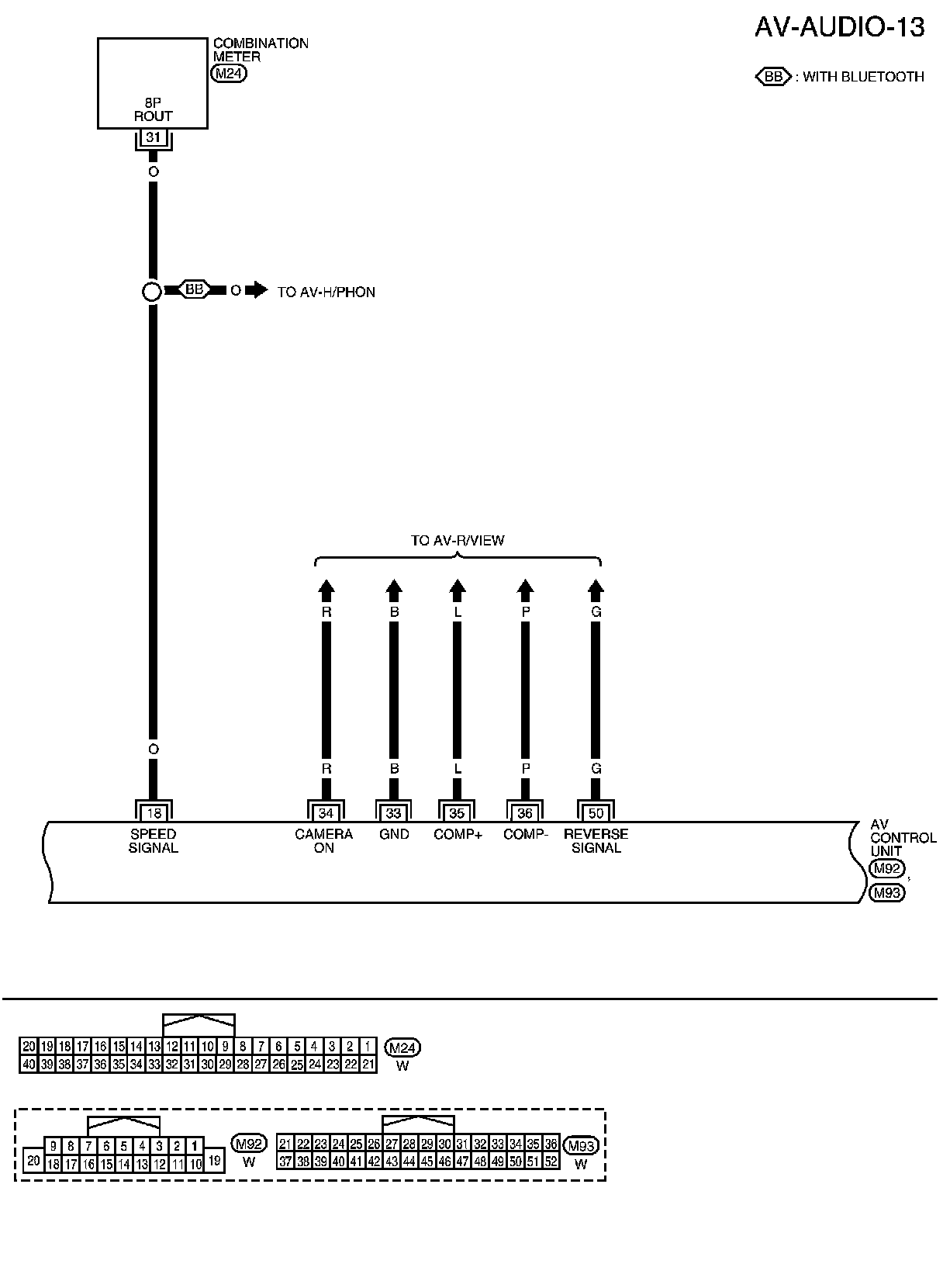

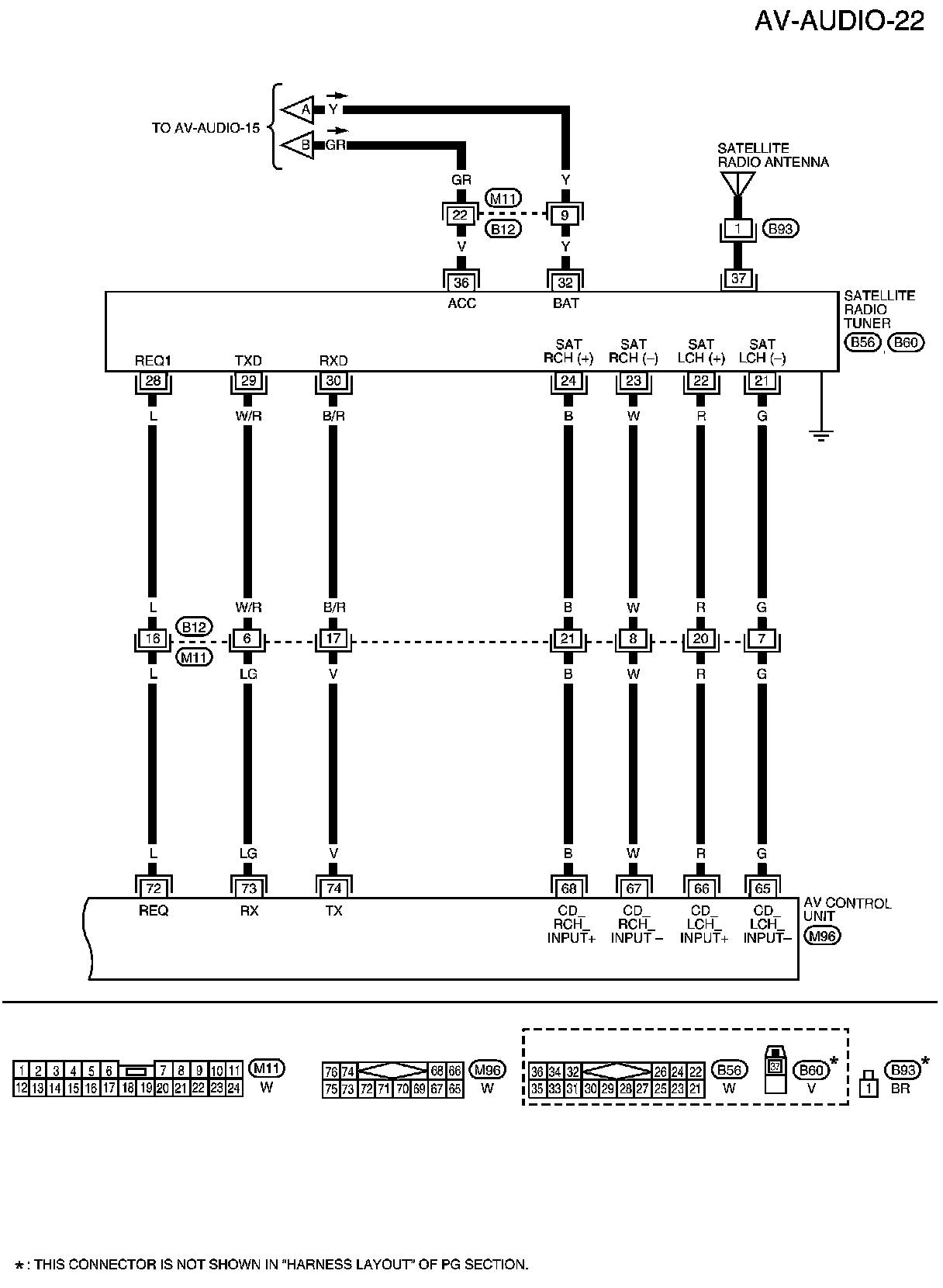

MID SYSTEM











Without Bluetooth





With Bluetooth





















PREMIUM SYSTEM - WITHOUT ROCKFORD FOSGATE

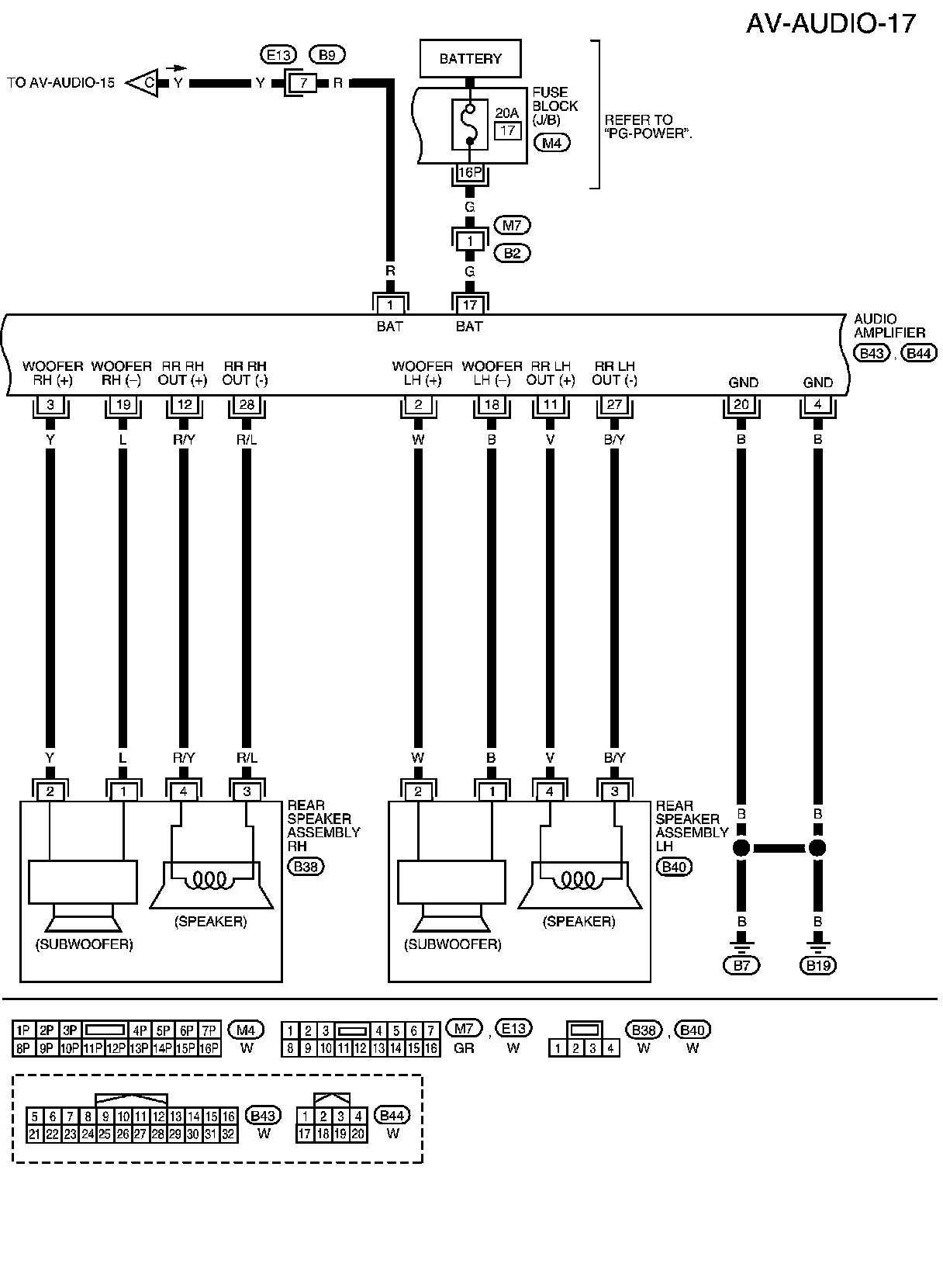

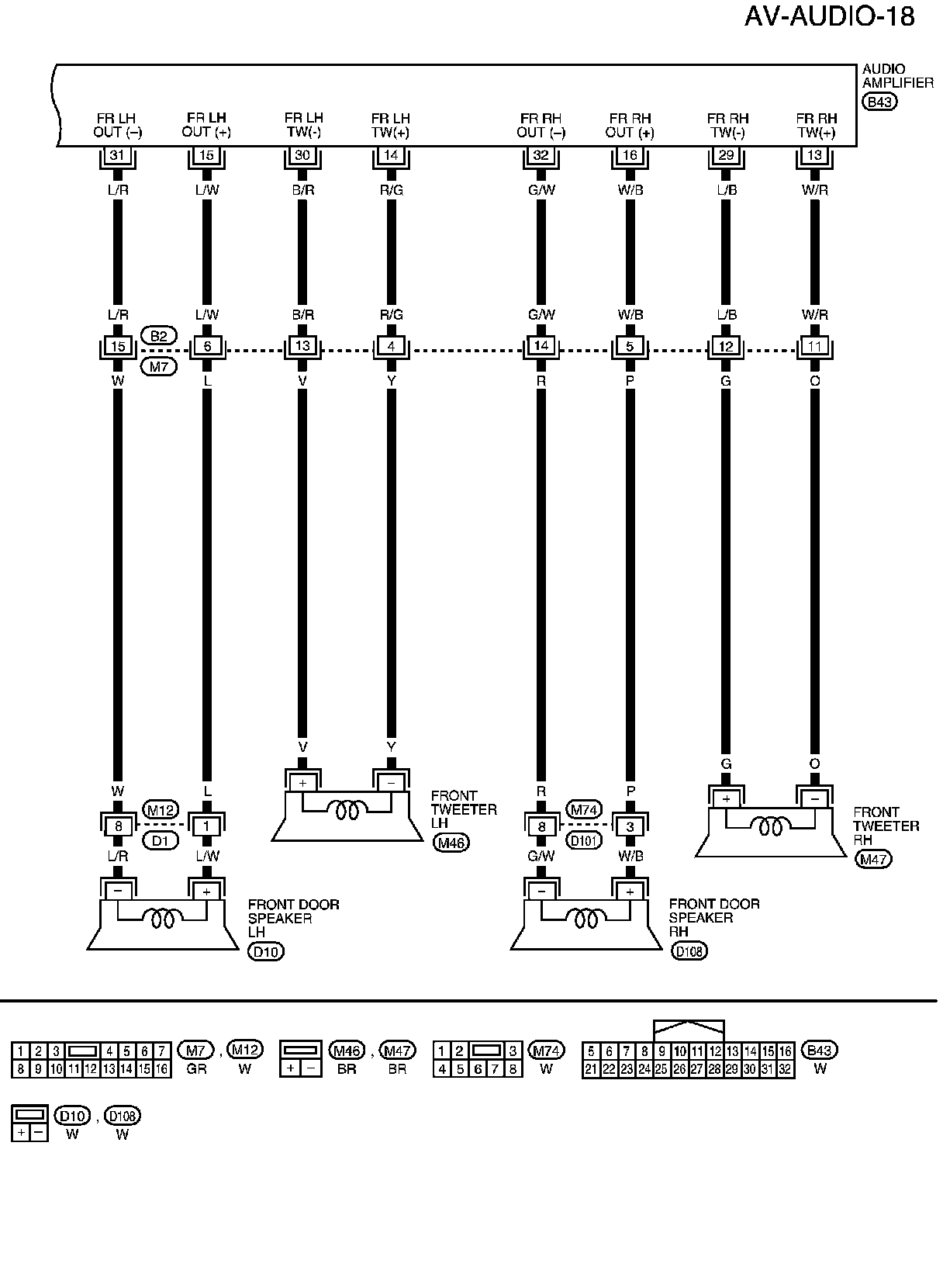

PREMIUM SYSTEM - WITH ROCKFORD FOSGATE

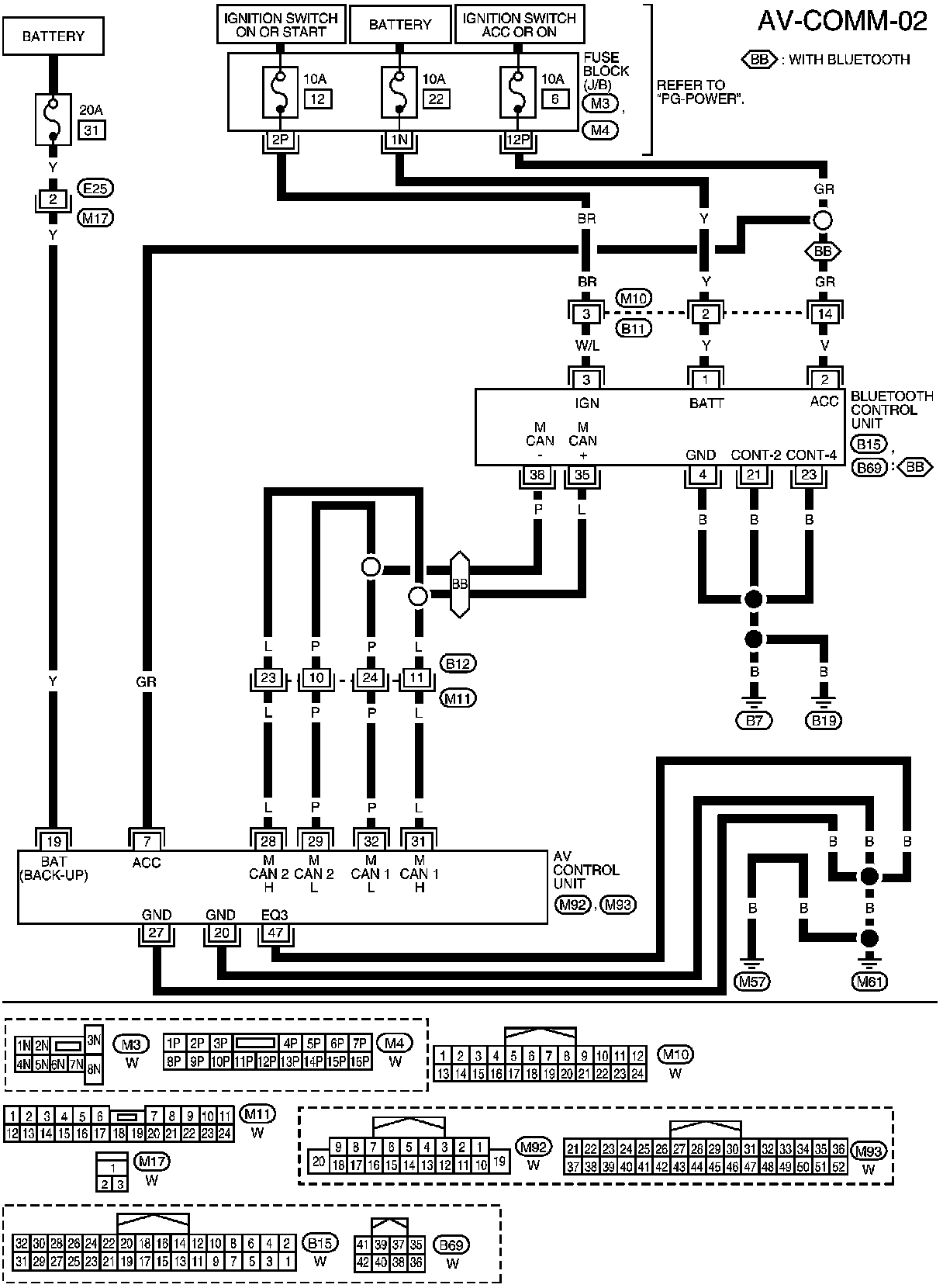

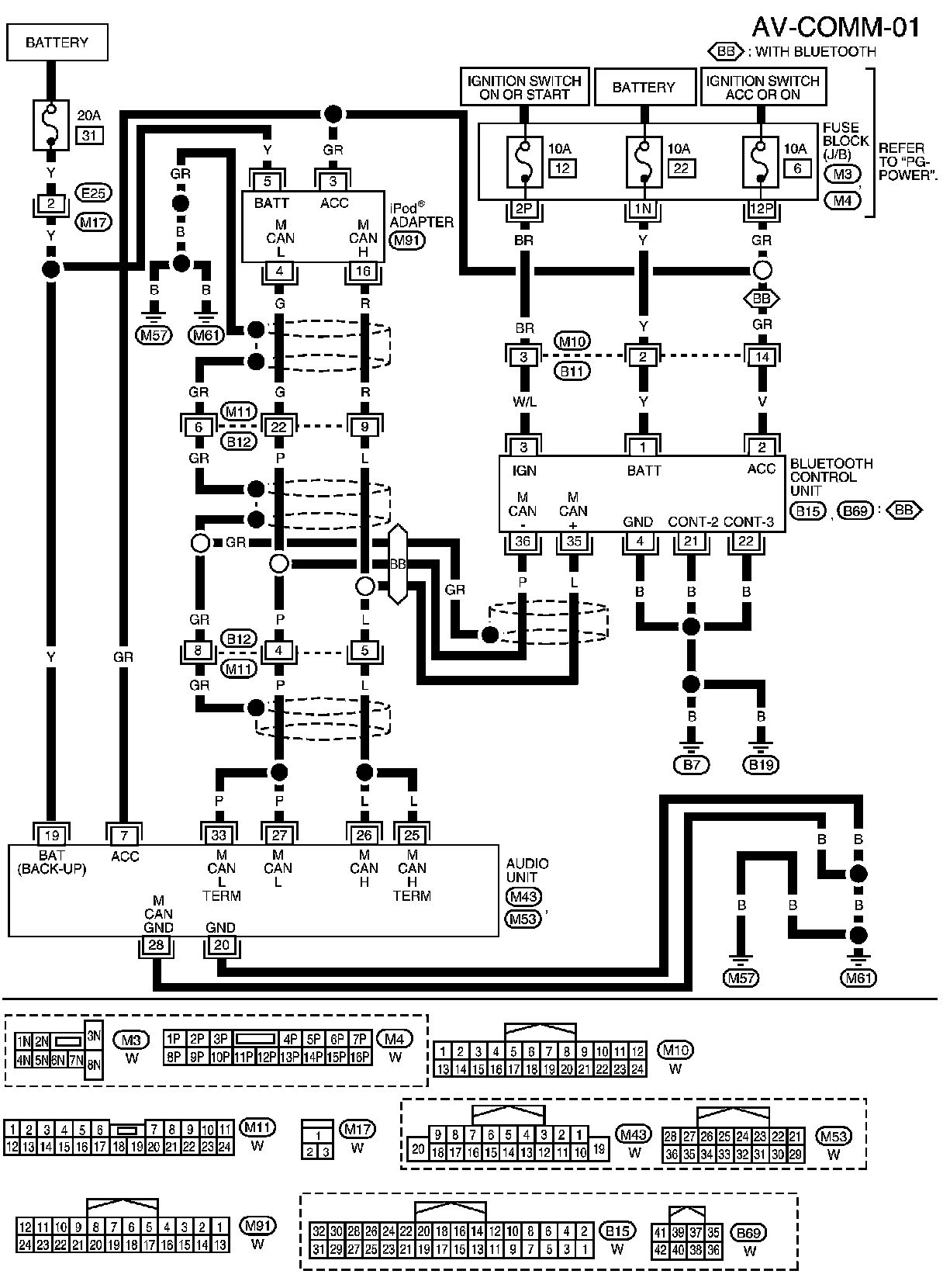

AV COMMUNICATION - WITH MID SYSTEM







AV COMMUNICATION - WITH PREMIUM SYSTEM
