System Diagram




POWER SUPPLY ROUTING CIRCUIT

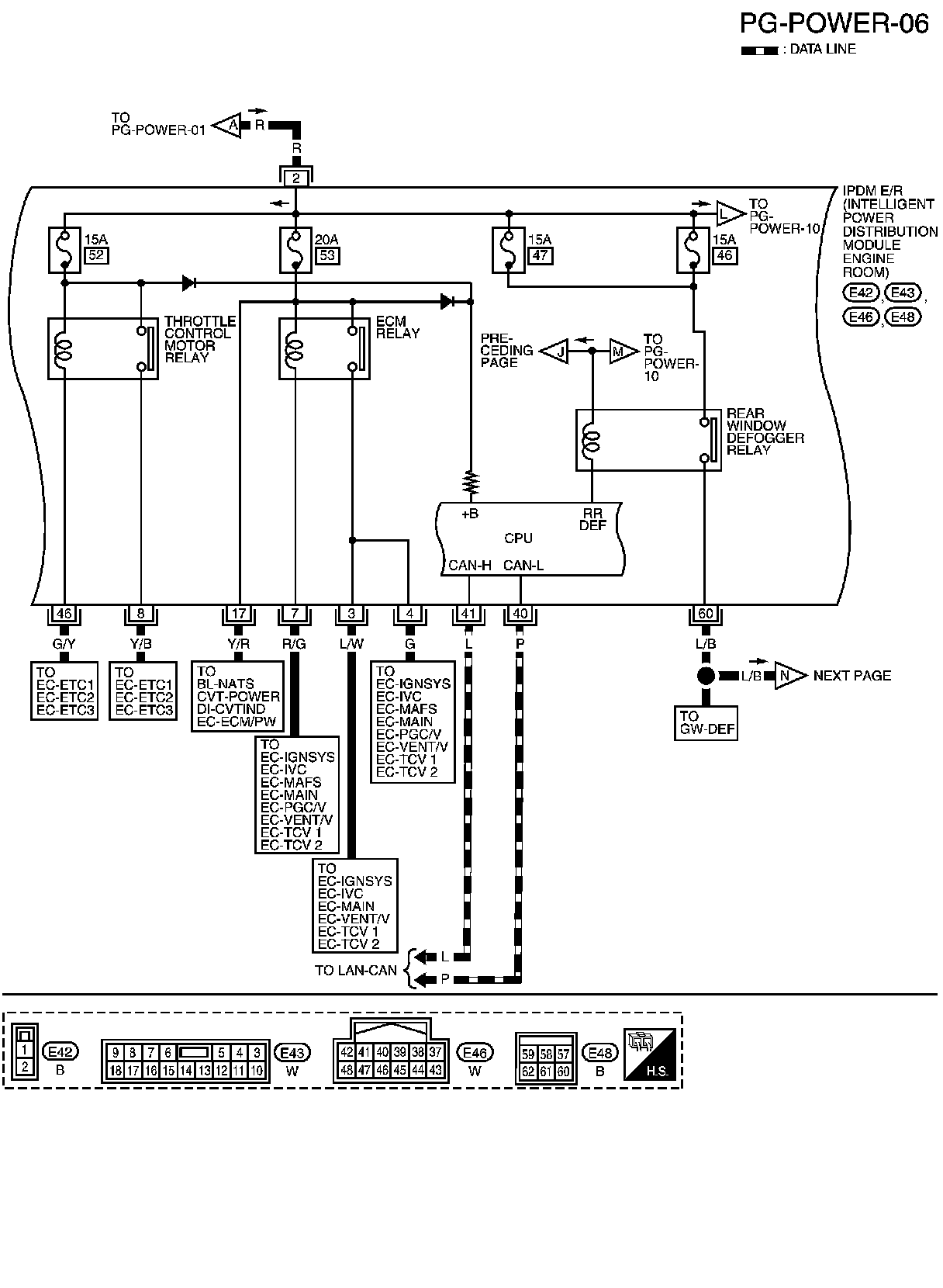

Wiring Diagram - POWER

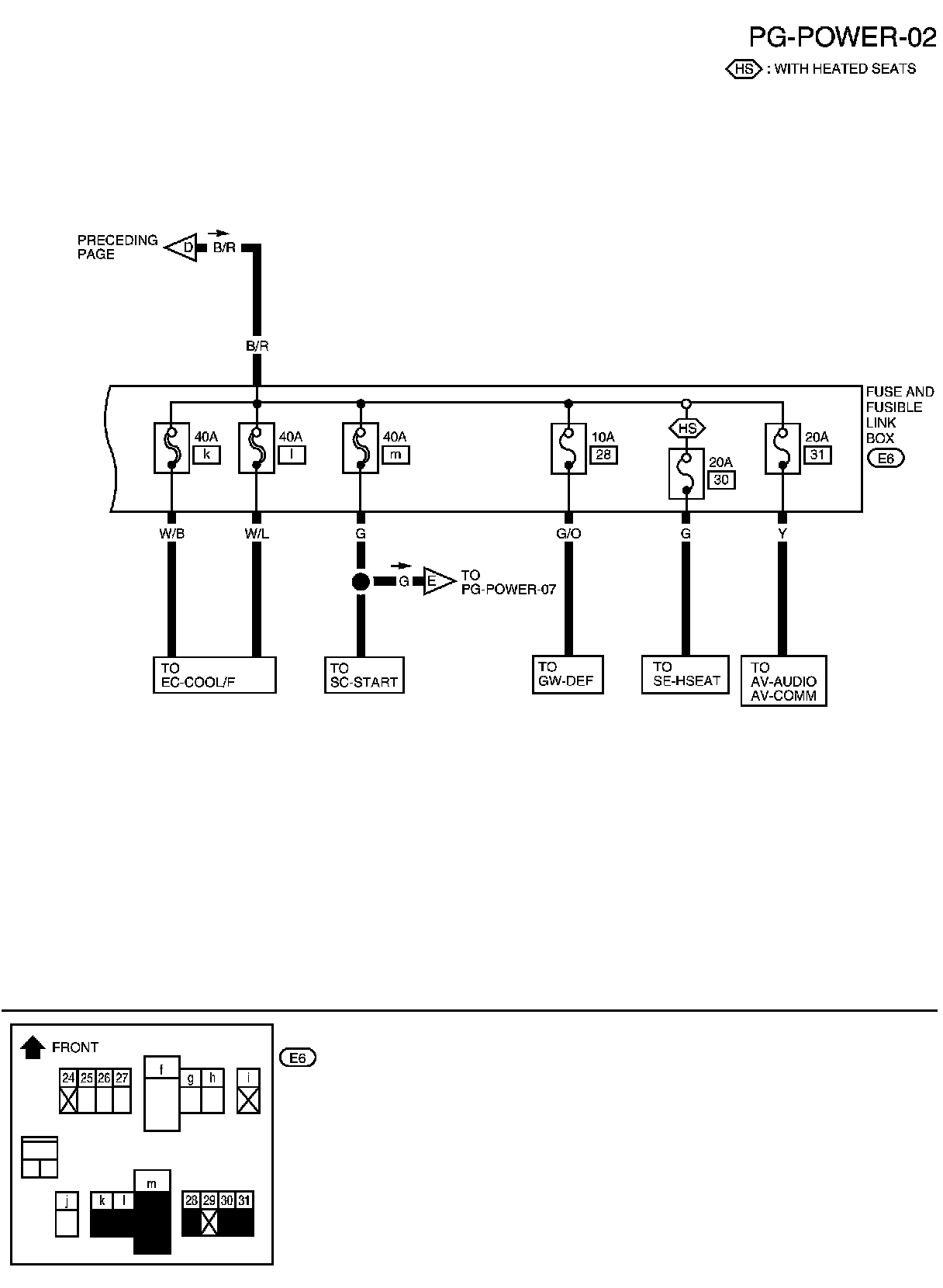

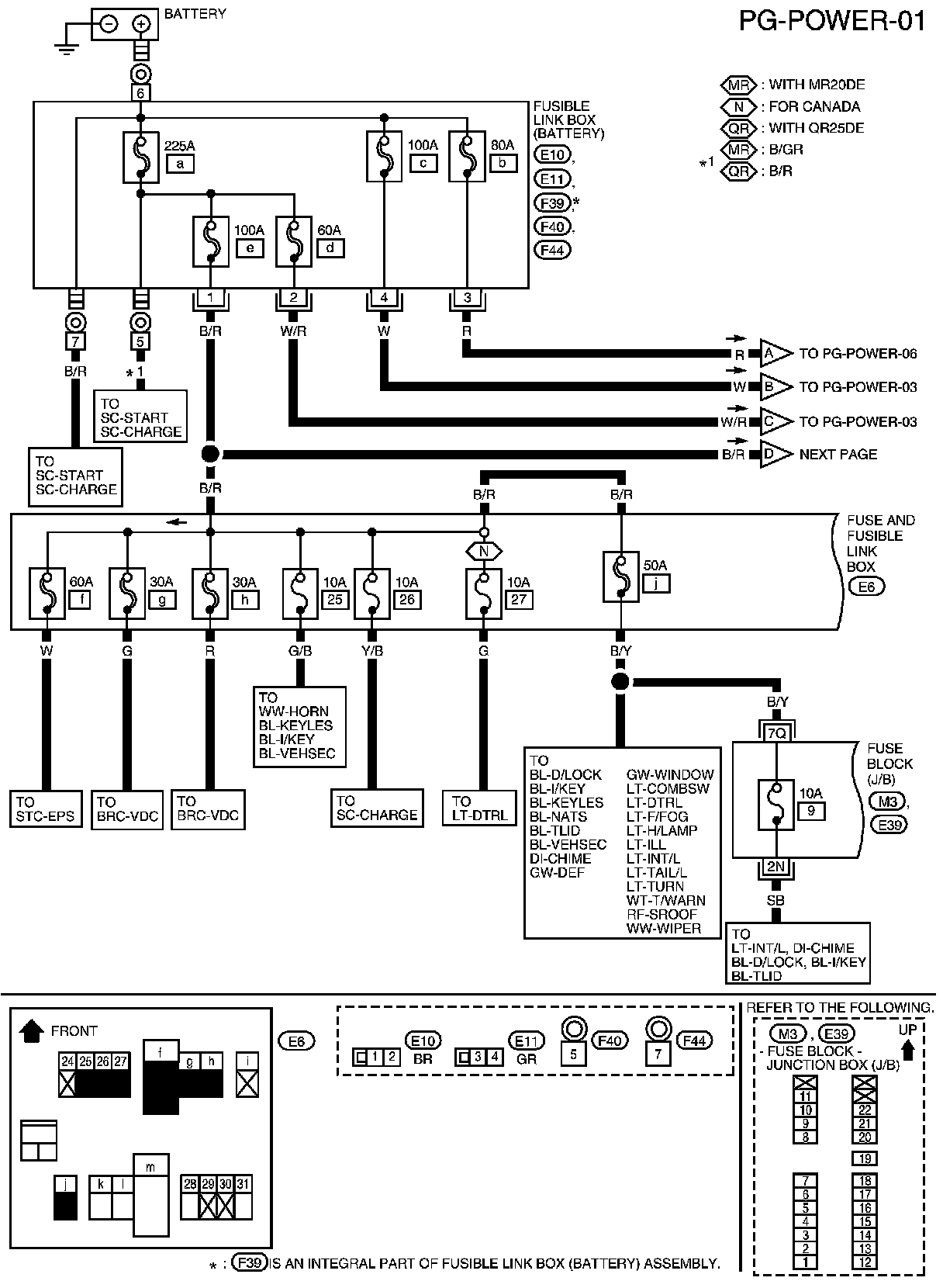

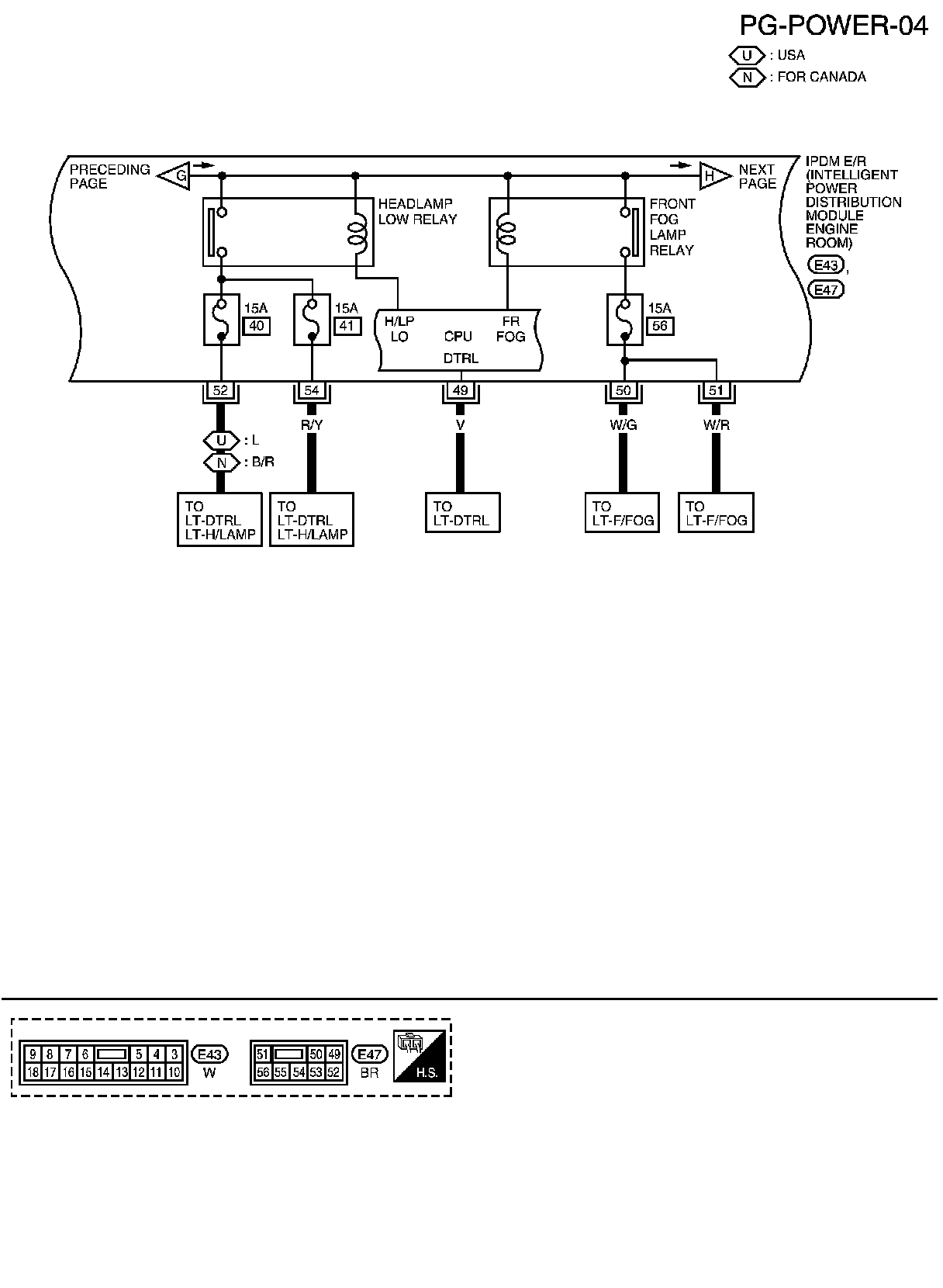

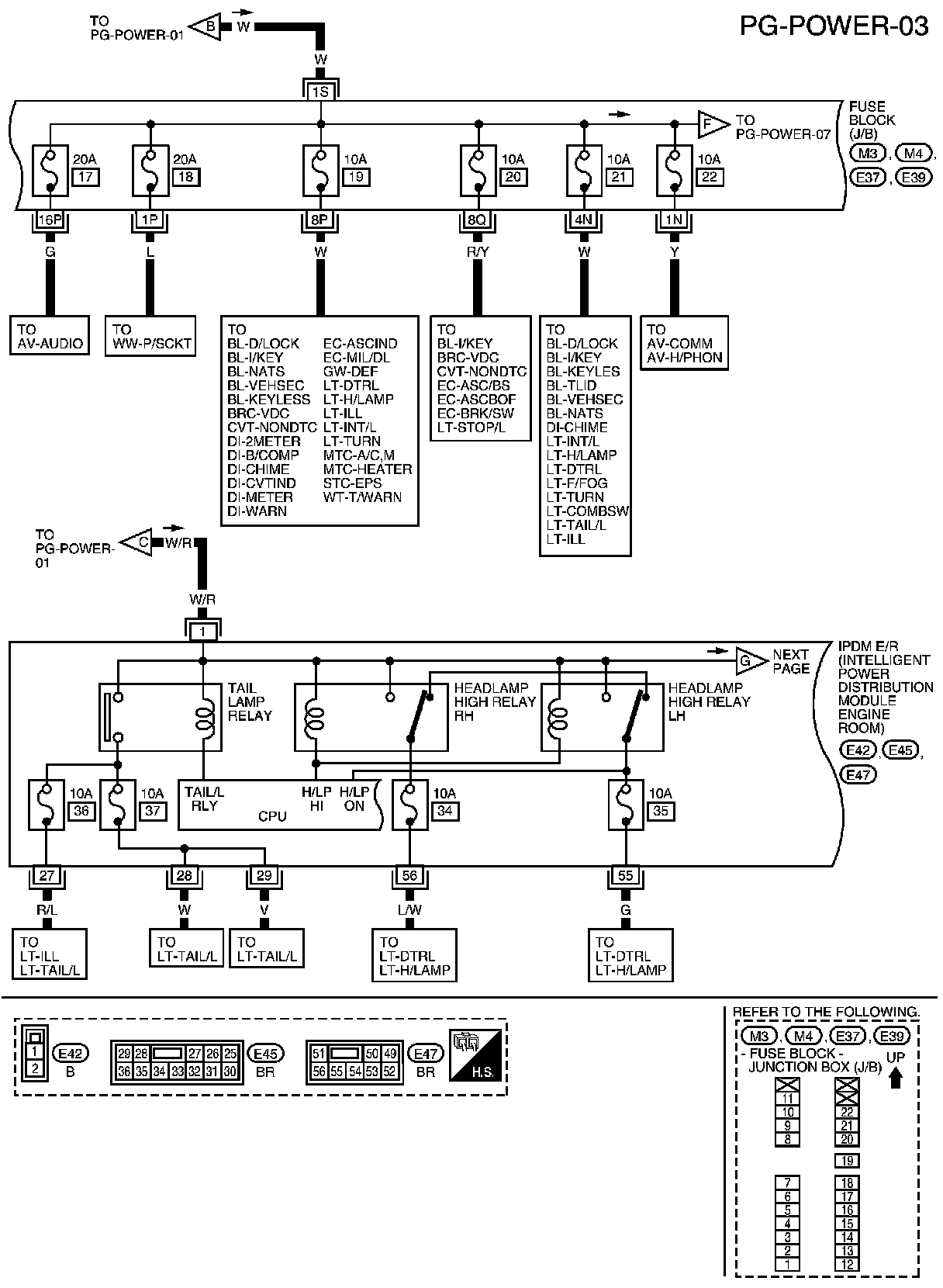

BATTERY POWER SUPPLY - IGNITION SWITCH IN ANY POSITION

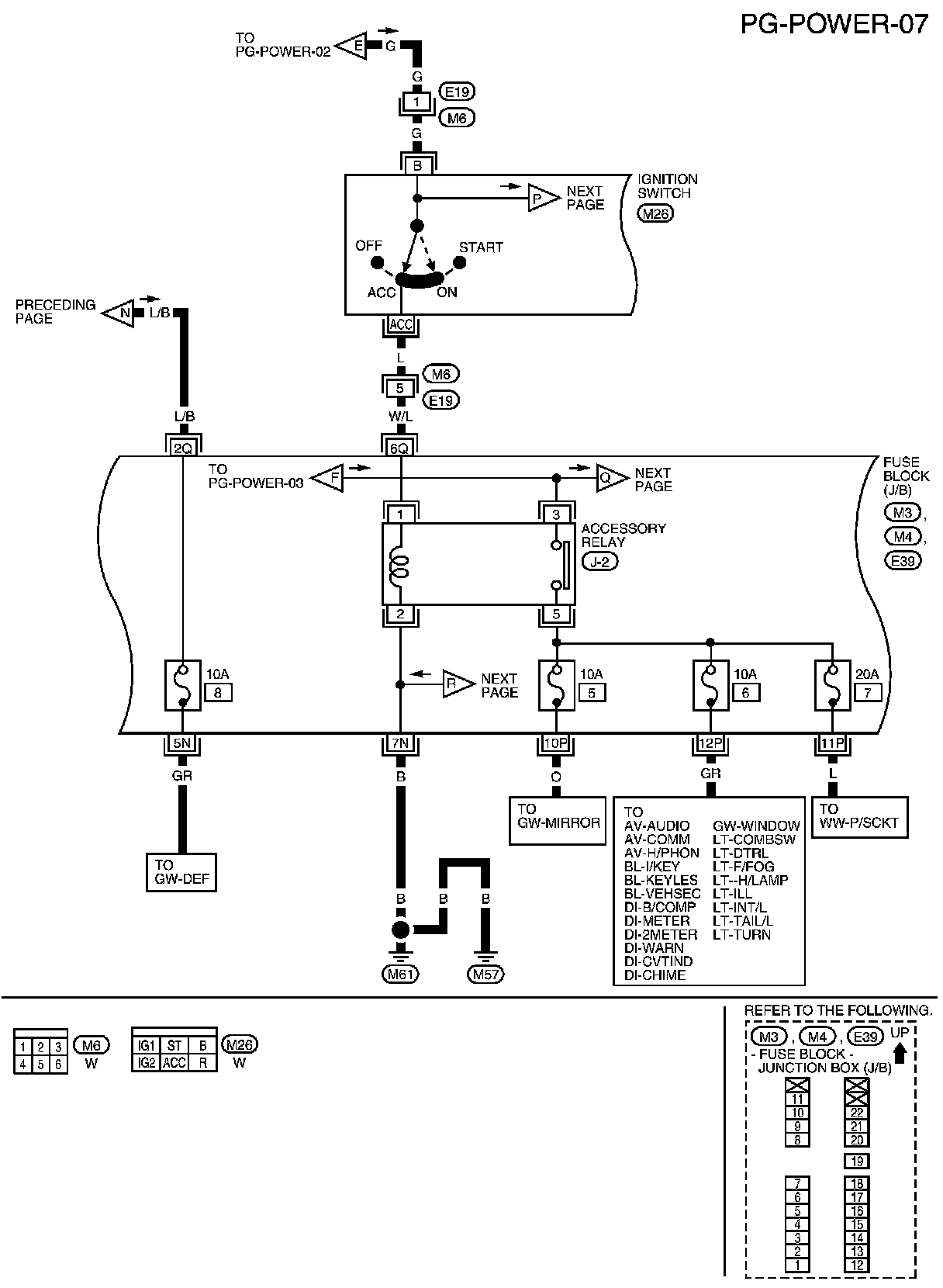

ACCESSORY POWER SUPPLY - IGNITION SWITCH IN ACC AND/OR ON

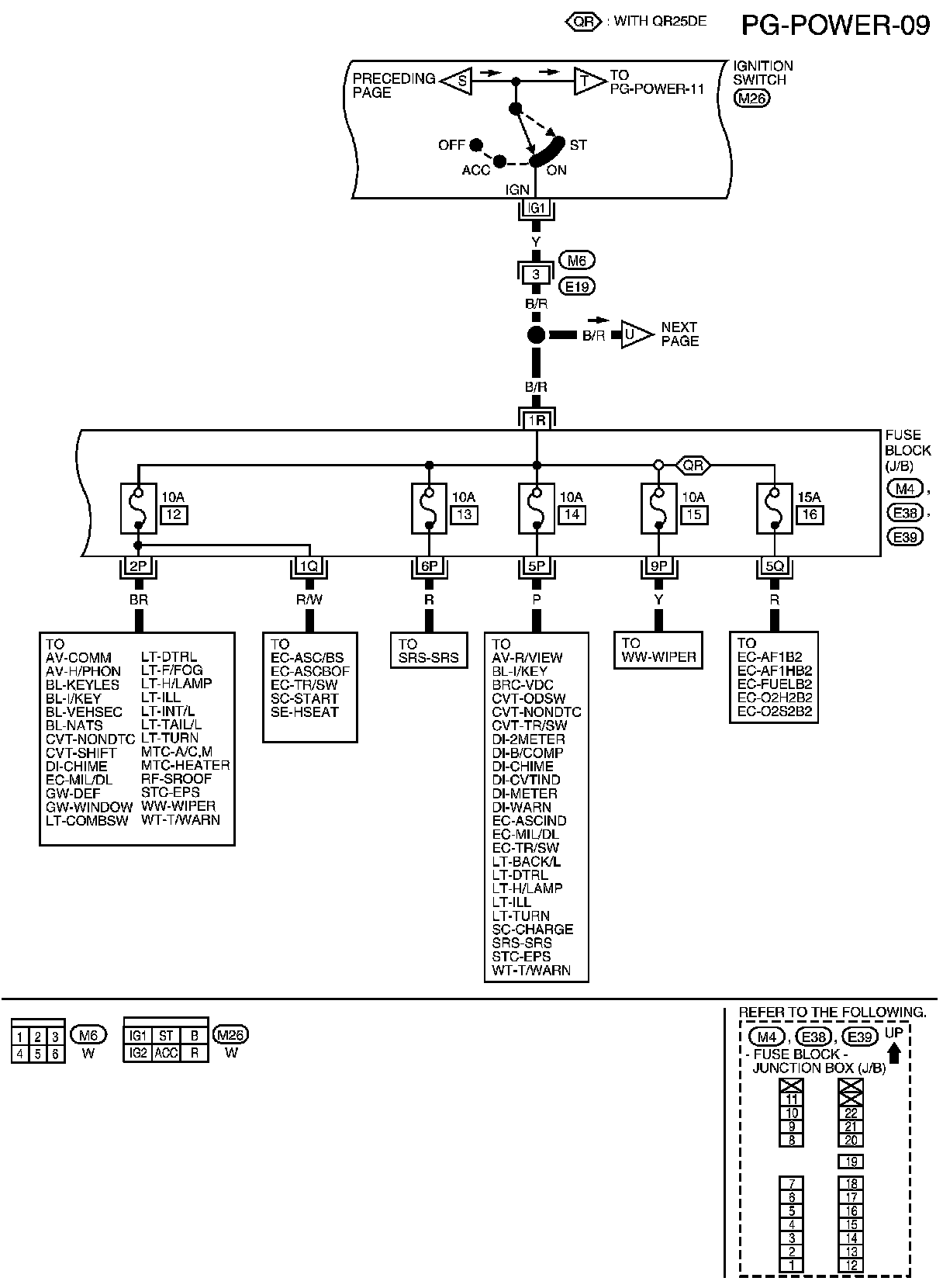

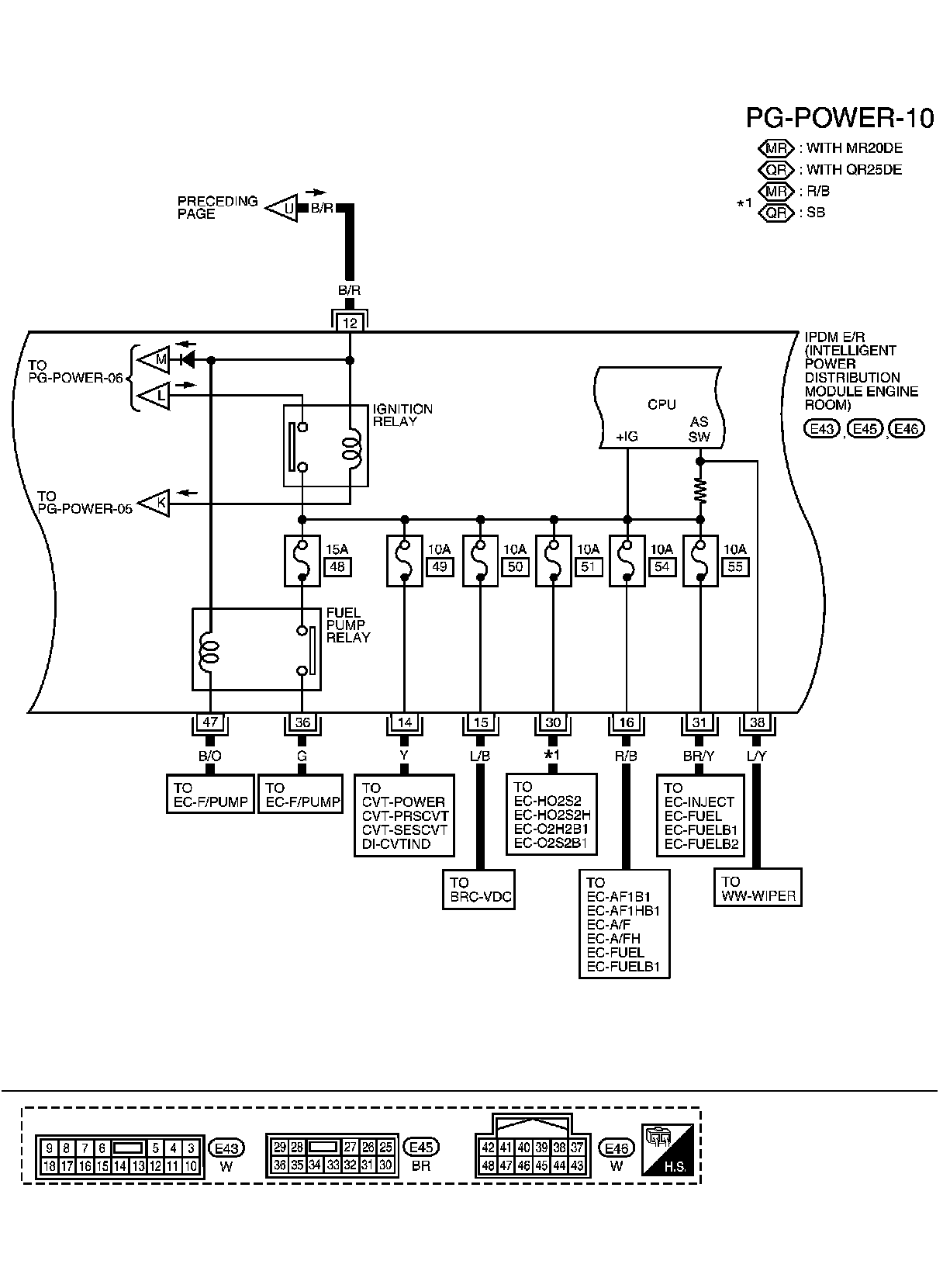

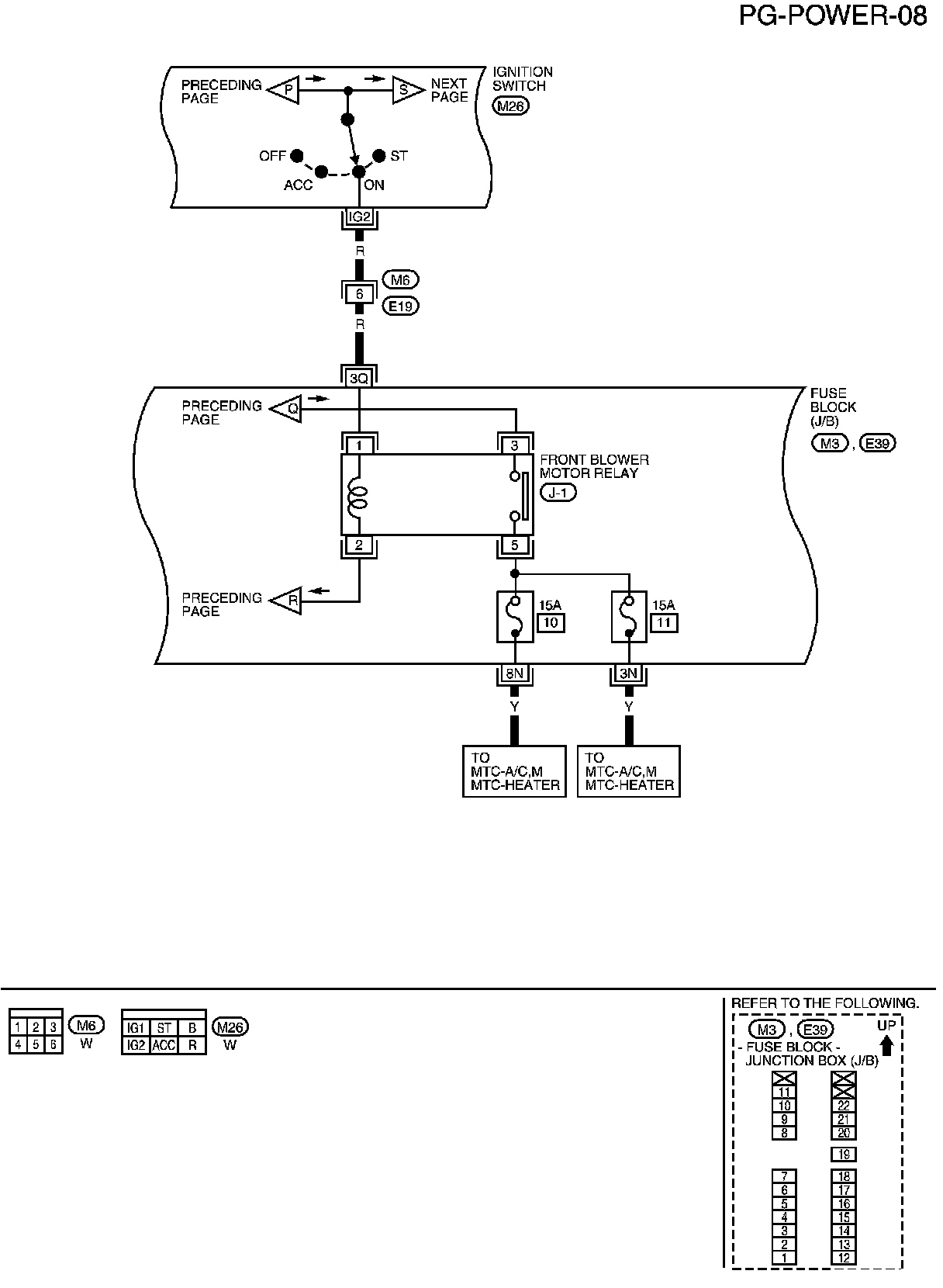

IGNITION POWER SUPPLY - IGNITION SWITCH IN ON







IGNITION POWER SUPPLY - IGNITION SWITCH IN ON AND/OR START.

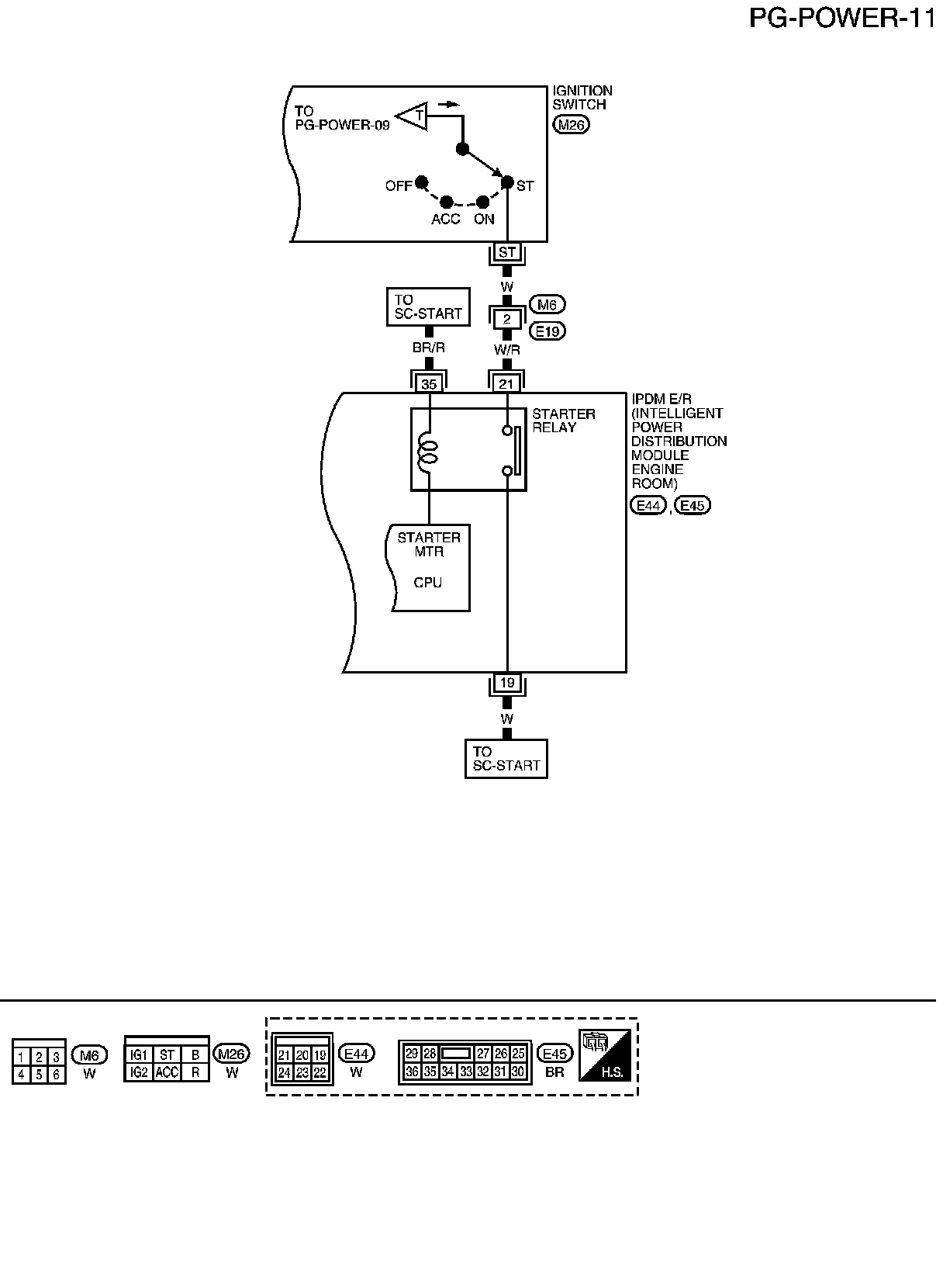

IGNITION POWER SUPPLY - IGNITION SWITCH IN START
