ASCD Indicator Except For California

ASCD INDICATOR

Component Description

ASCD indicator lamp illuminates to indicate ASCD operation status. Lamp has two indicators, CRUISE and
SET, and is integrated in combination meter.
CRUISE indicator illuminates when MAIN switch on ASCD steering switch is turned ON to indicate that ASCD
system is ready for operation.
SET indicator illuminates when following conditions are met.
- CRUISE indicator is illuminated.
- SET/COAST switch on ASCD steering switch is turned ON while vehicle speed is within the range of ASCD
setting.
SET indicator remains lit during ASCD control.
Refer to the ASCD function.

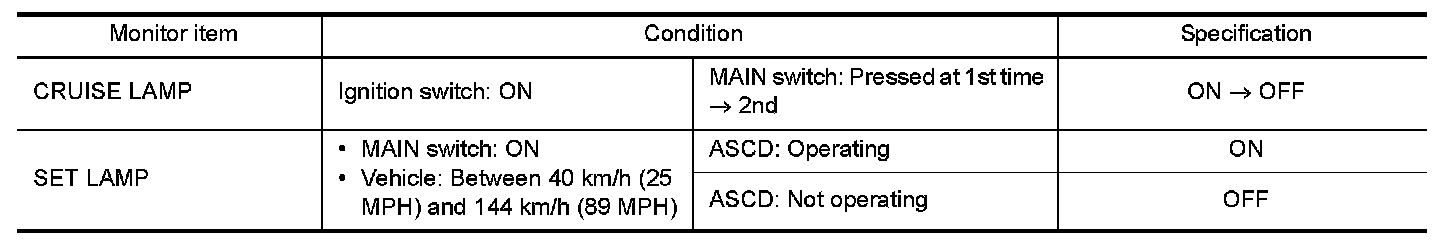

CONSULT Reference Value in Data Monitor Mode

Specification data are reference value.

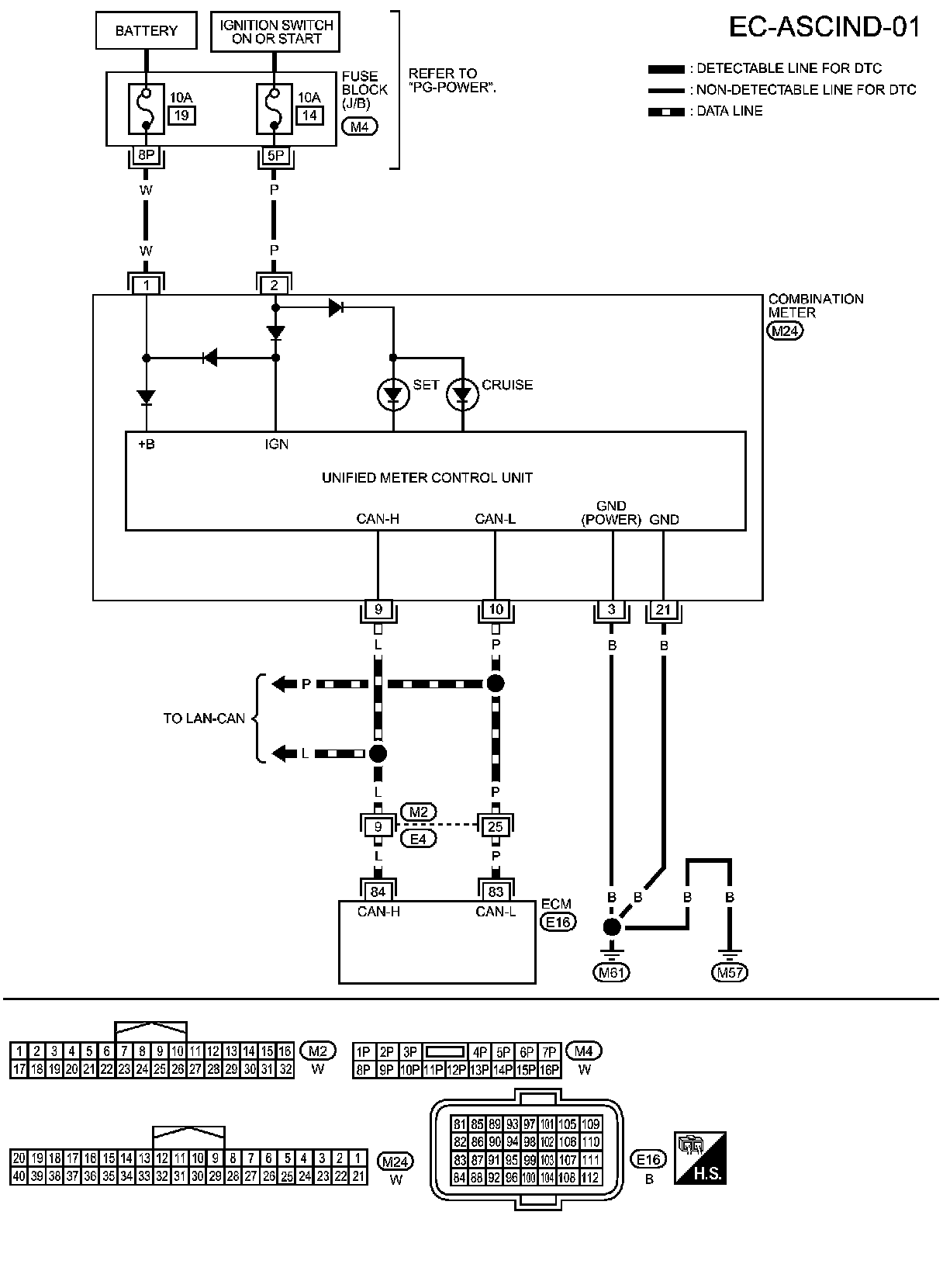

Wiring Diagram








Diagnosis Procedure


1. CHECK OVERALL FUNCTION

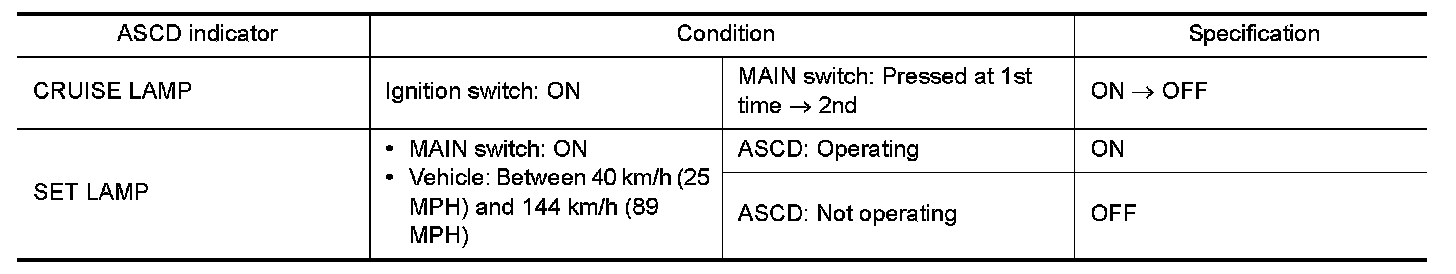

Check ASCD indicator under the following conditions.





OK or NG
OK-INSPECTION END
NG- GO TO 2.

2. CHECK DTC

Check that DTC UXXXX is not displayed.
Is the DTC UXXXX displayed?
YES- Perform trouble diagnoses for DTC UXXXX.
NO- GO TO 3.

3. CHECK COMBINATION METER OPERATION

Check the combination meter operation.
Does combination meter operate normally?
YES- GO TO 4.
NO- Check combination meter circuit.

4. CHECK INTERMITTENT INCIDENT

-INSPECTION END
