FRONT DISC BRAKE

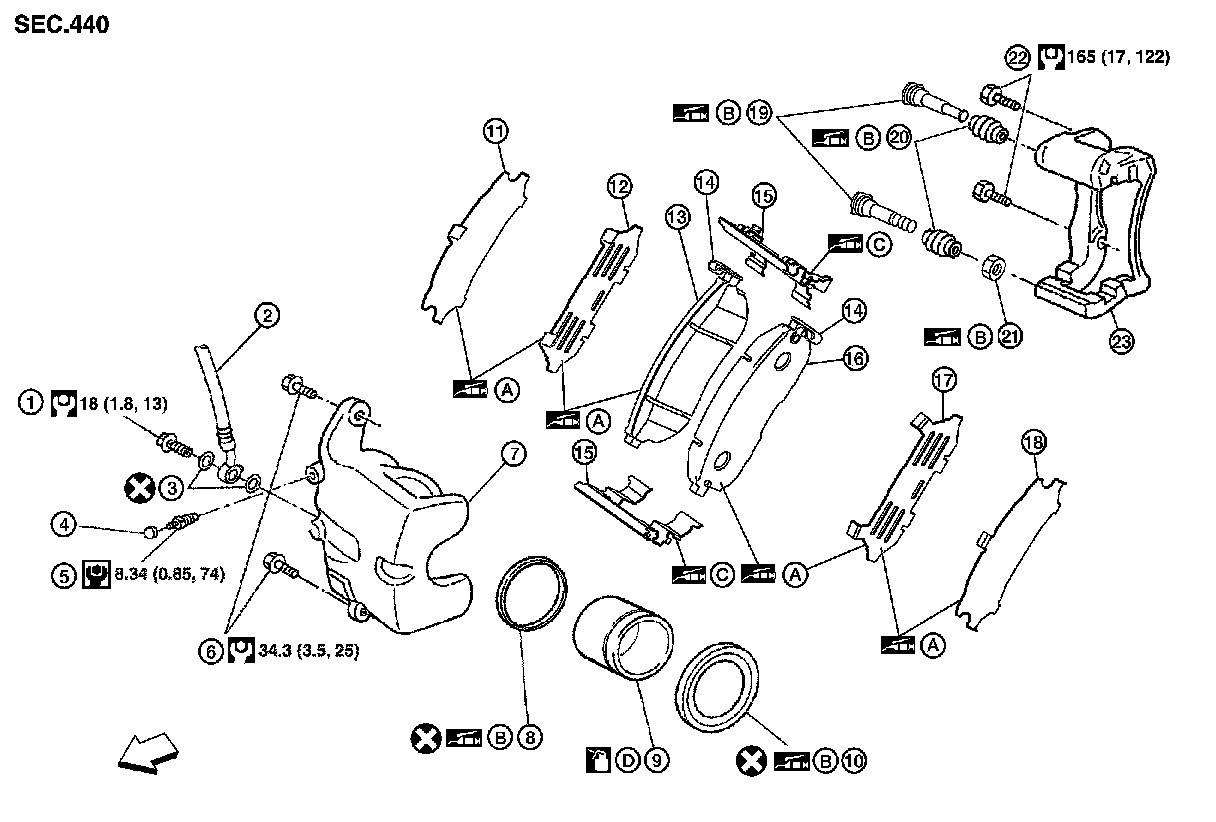

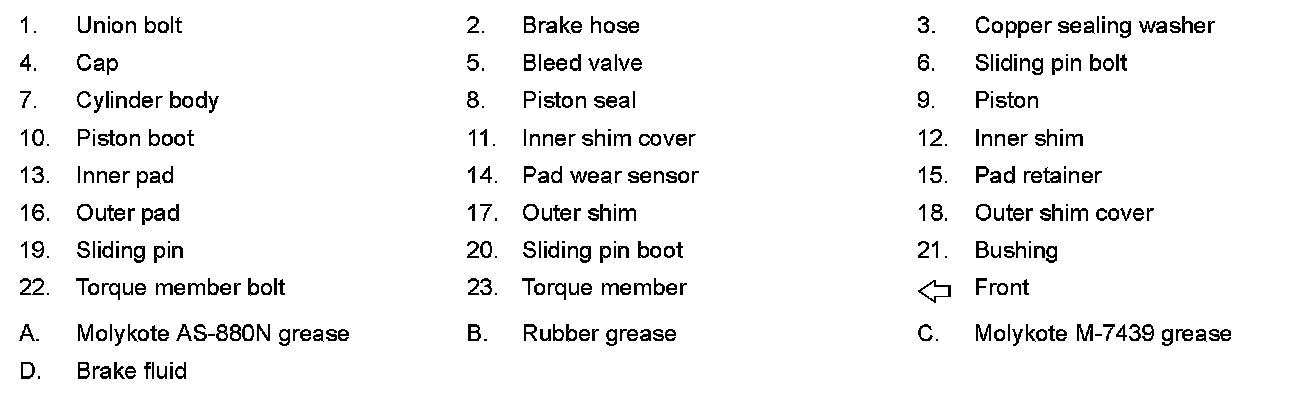

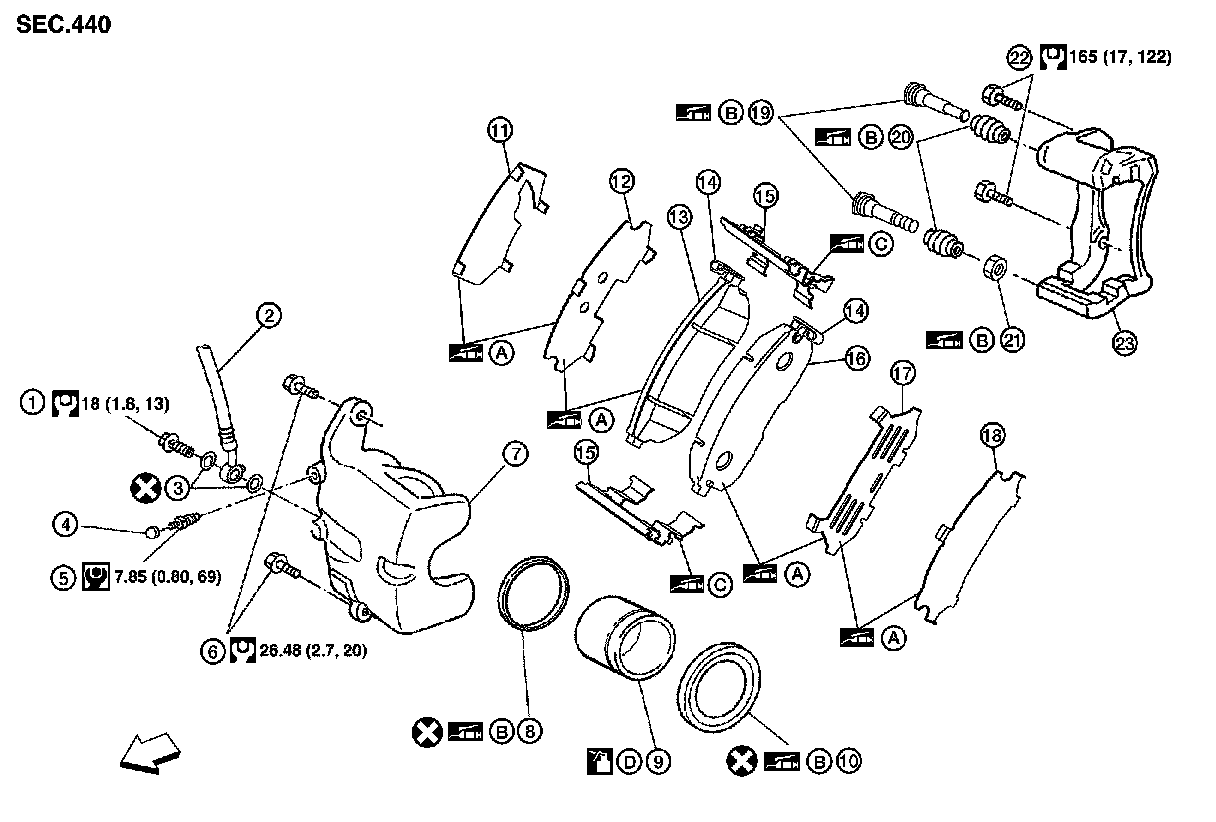

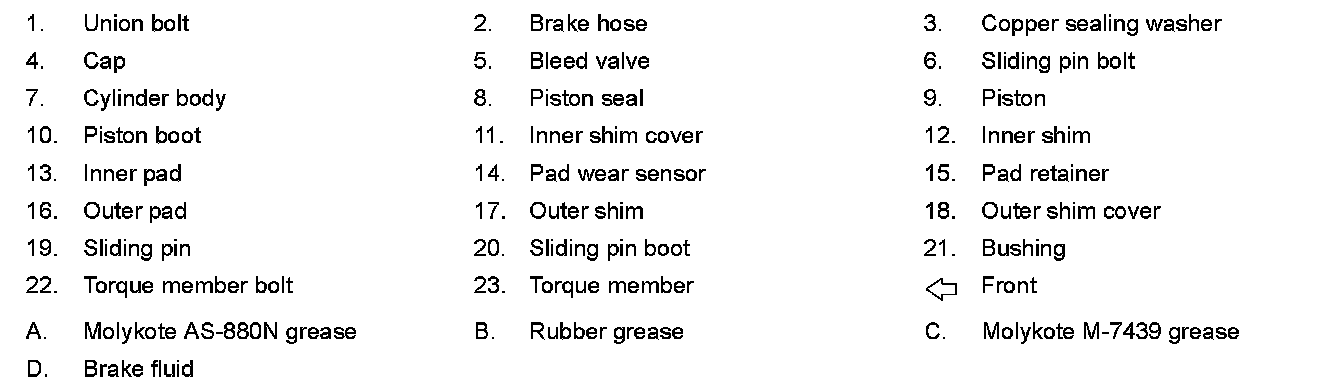

Component
CAUTION:
Clean dust with a vacuum dust collector. Do not blow with compressed air.
