Component Inspection

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS

Component Inspection


VDC OFF SWITCH






Check the continuity between terminals 1 and 2.
1 -2: Continuity should exist when switch is
pressed.
Continuity should not exist when switch is
released.

PARKING BRAKE SWITCH


1. CHECK PARKING BRAKE SWITCH






1.Turn ignition switch OFF.
2.Disconnect parking brake switch connector.

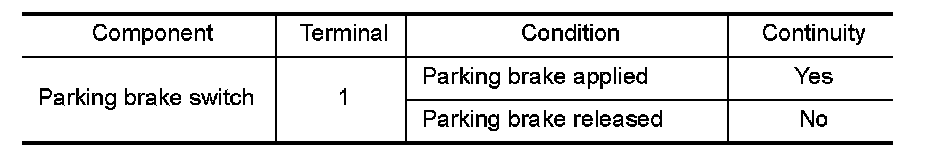

3.Check continuity between parking brake switch terminal 1 and ground.





Is the inspection result normal?
YES- Inspection End.
NO- Replace parking brake switch.
