Scan Tool Testing and Procedures

POWER DOOR LOCK SYSTEM

CONSULT Function (BCM)

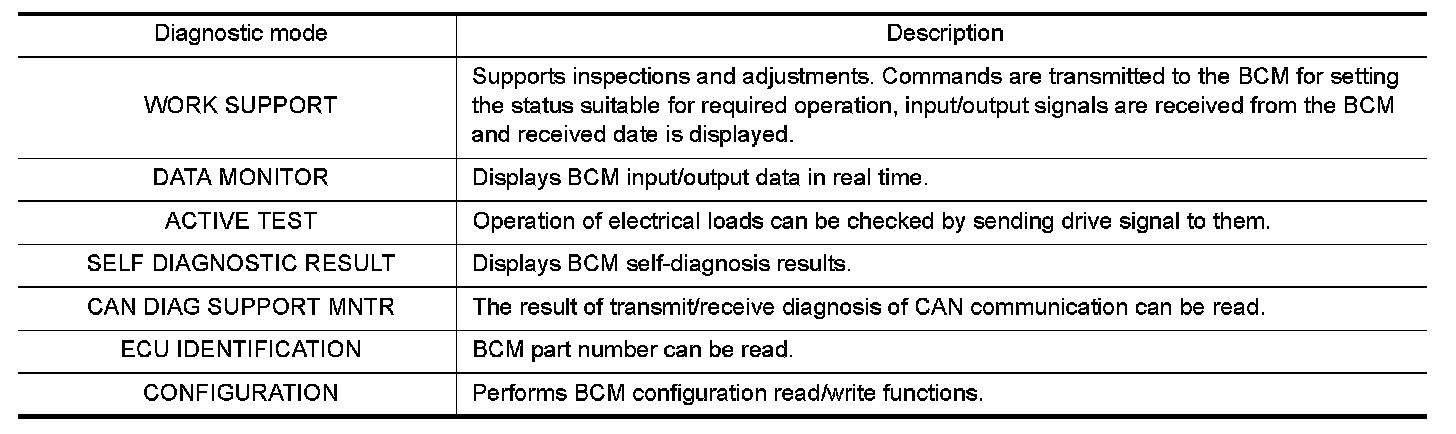

CONSULT can display each diagnostic item using the diagnostic test modes shown following.

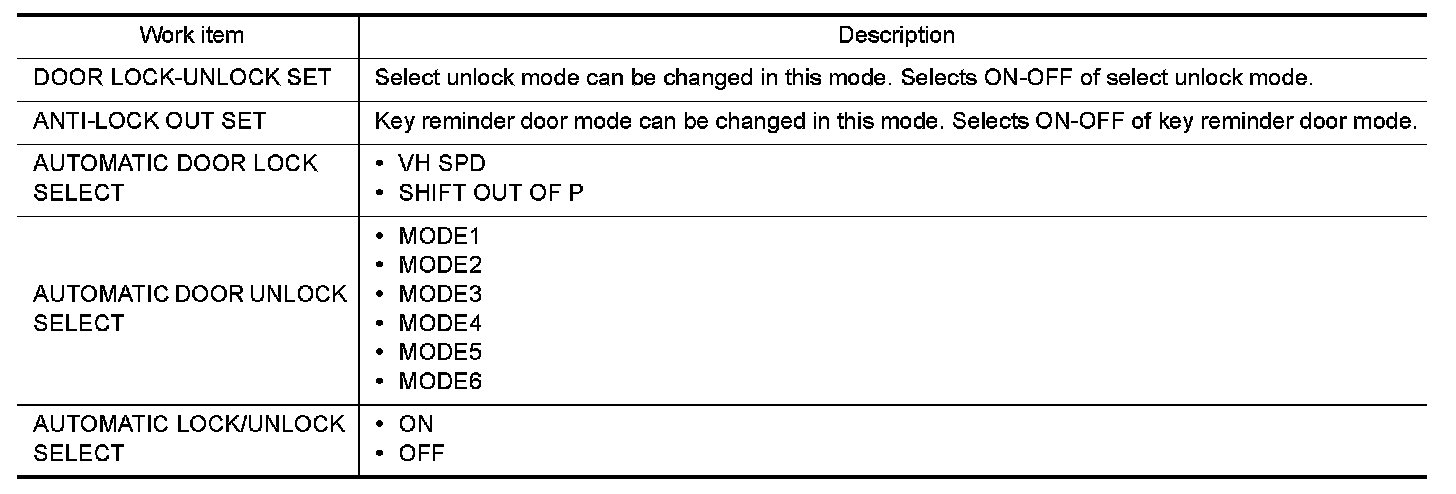

WORK SUPPORT

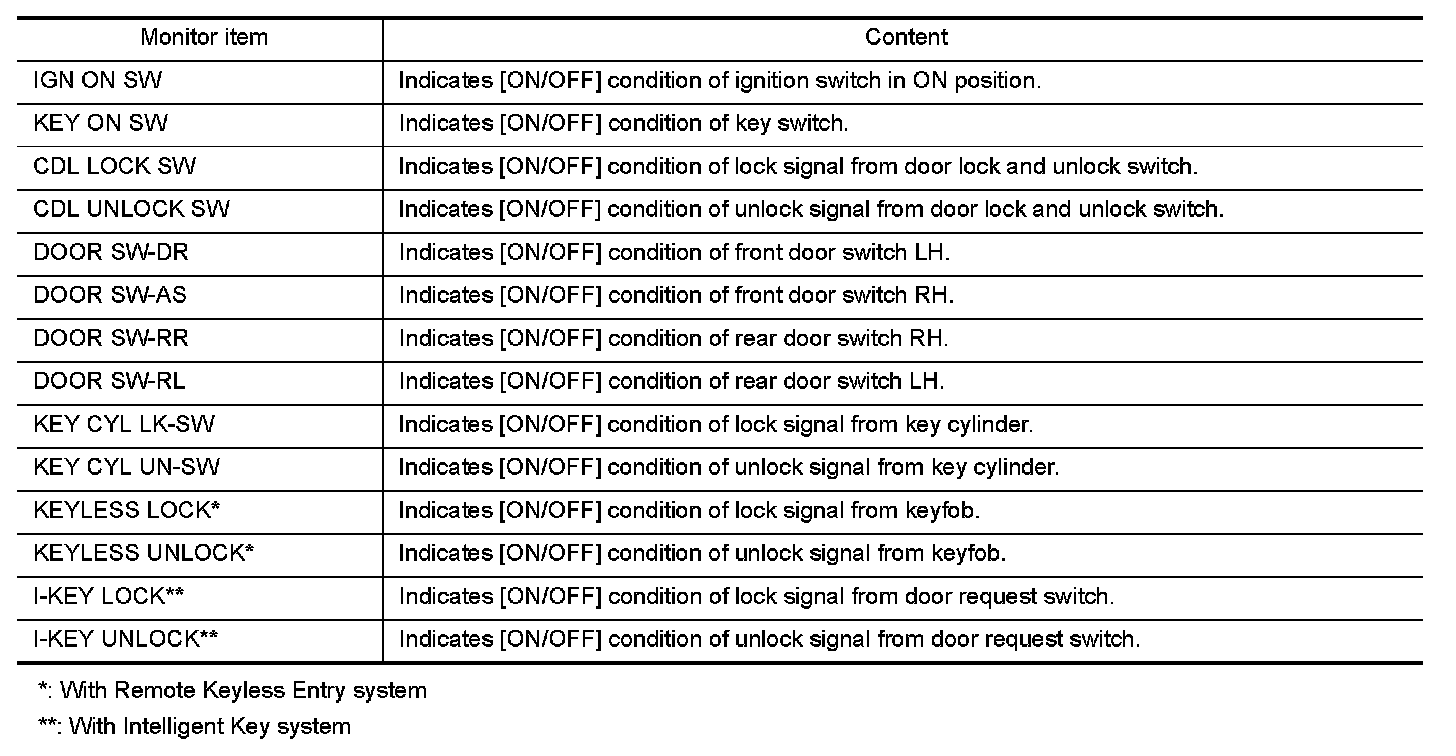

DATA MONITOR

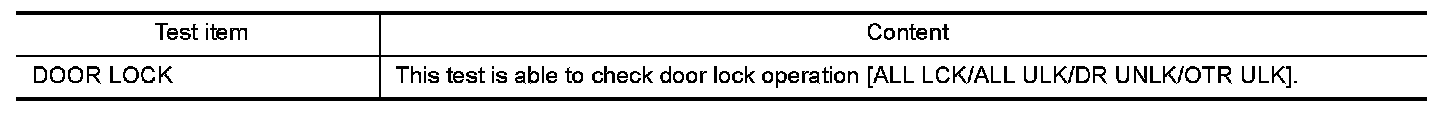

ACTIVE TEST
