Without Intelligent Key




POWER DOOR LOCK SYSTEM

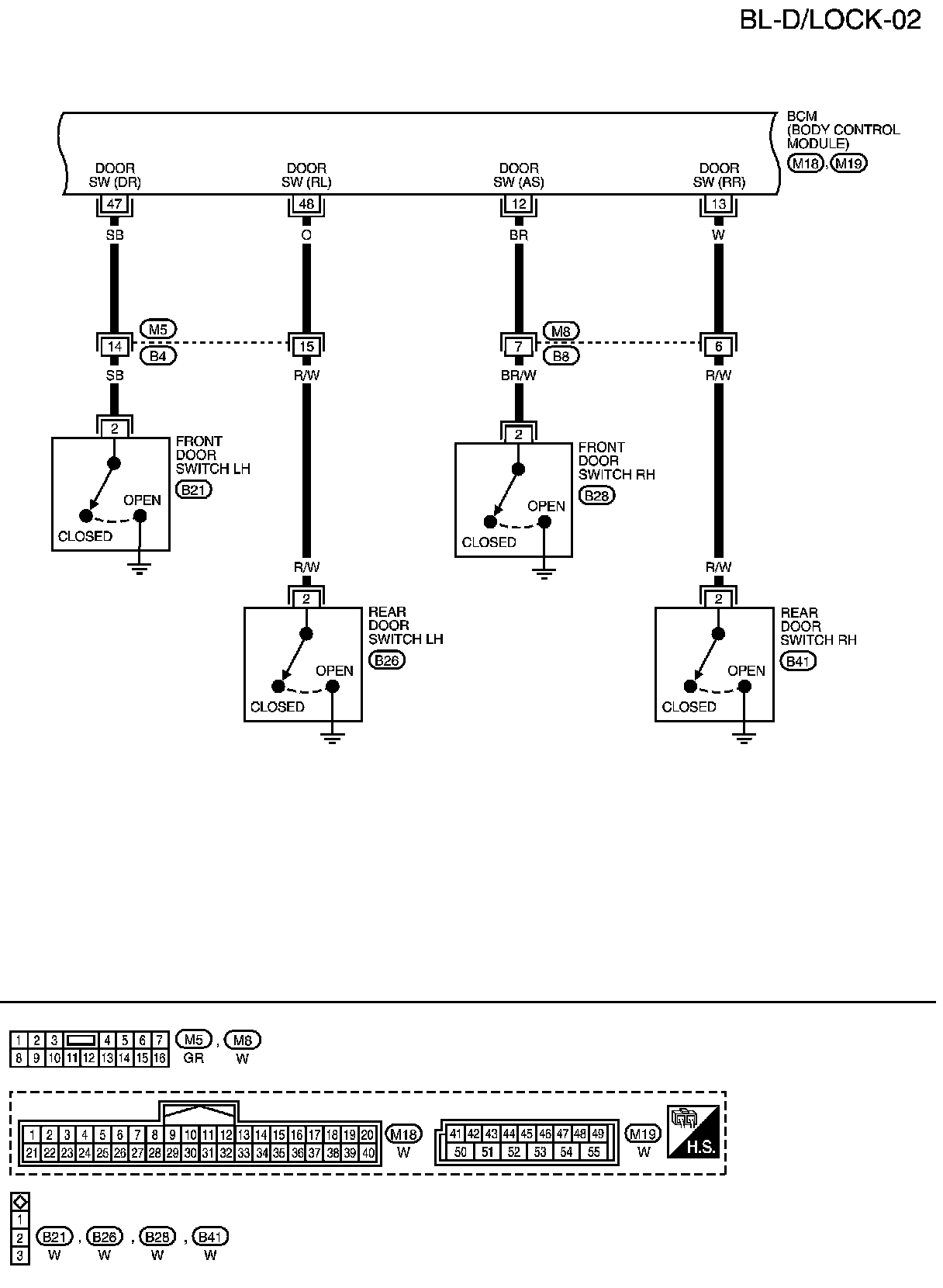

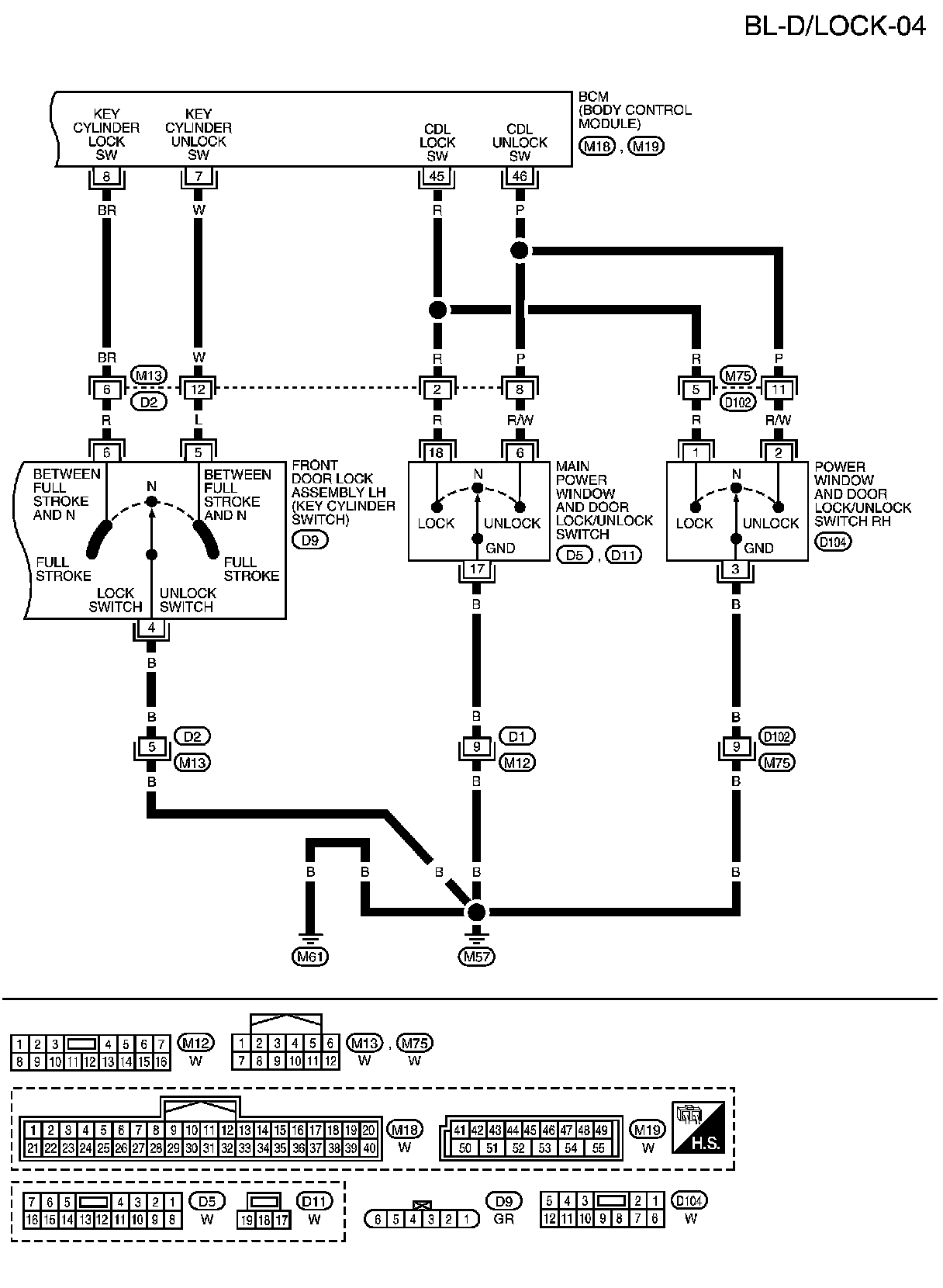

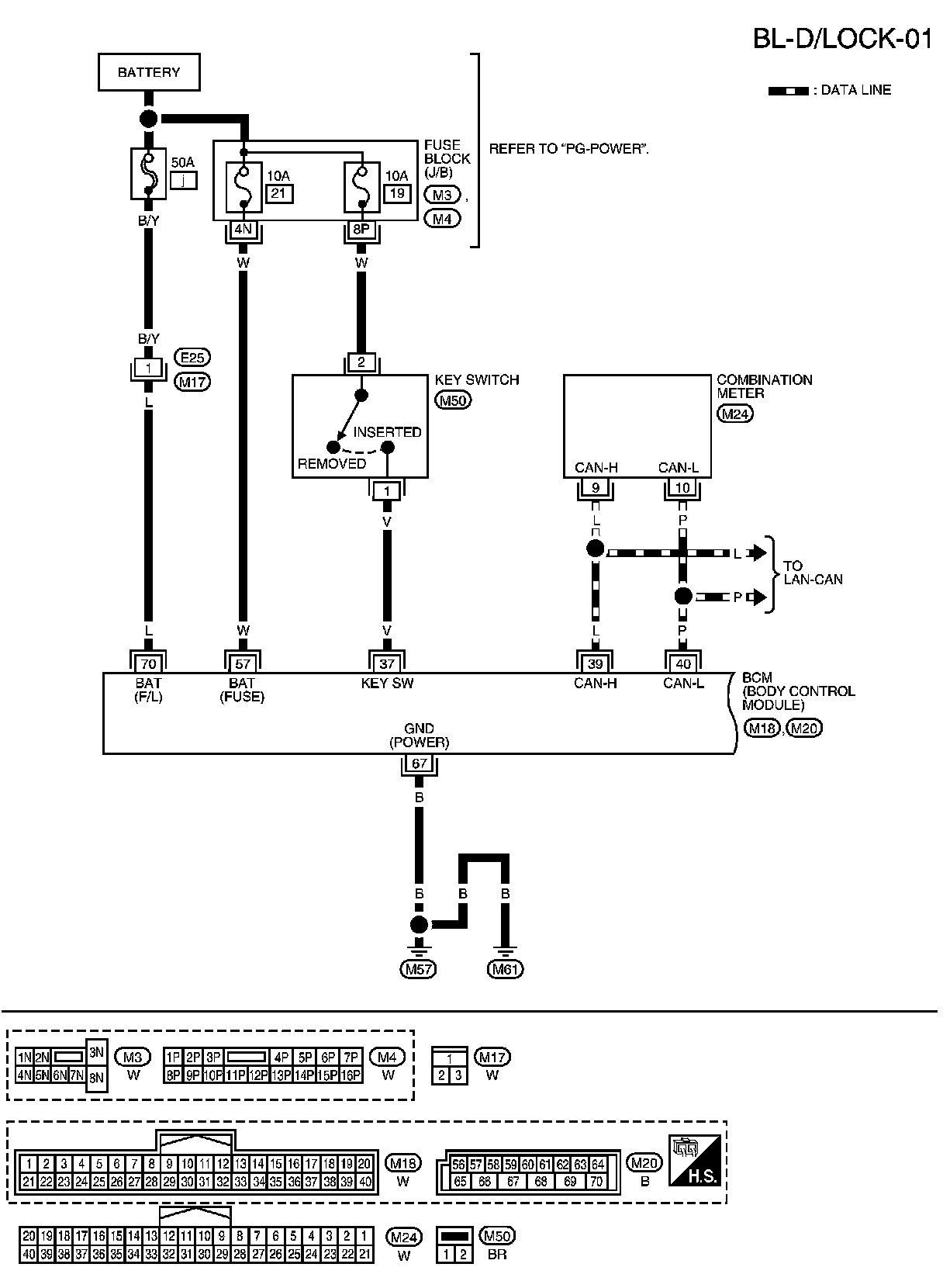

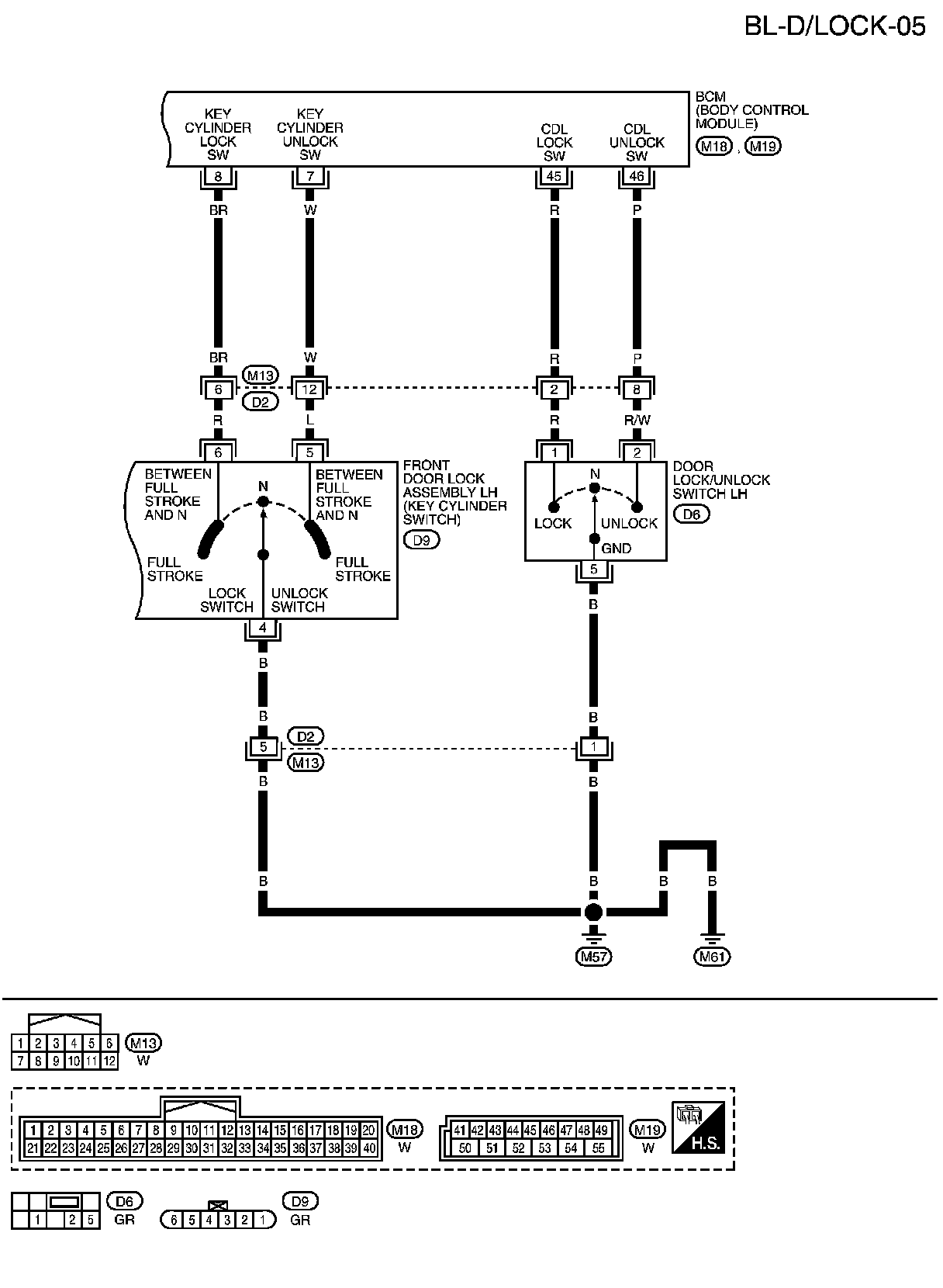

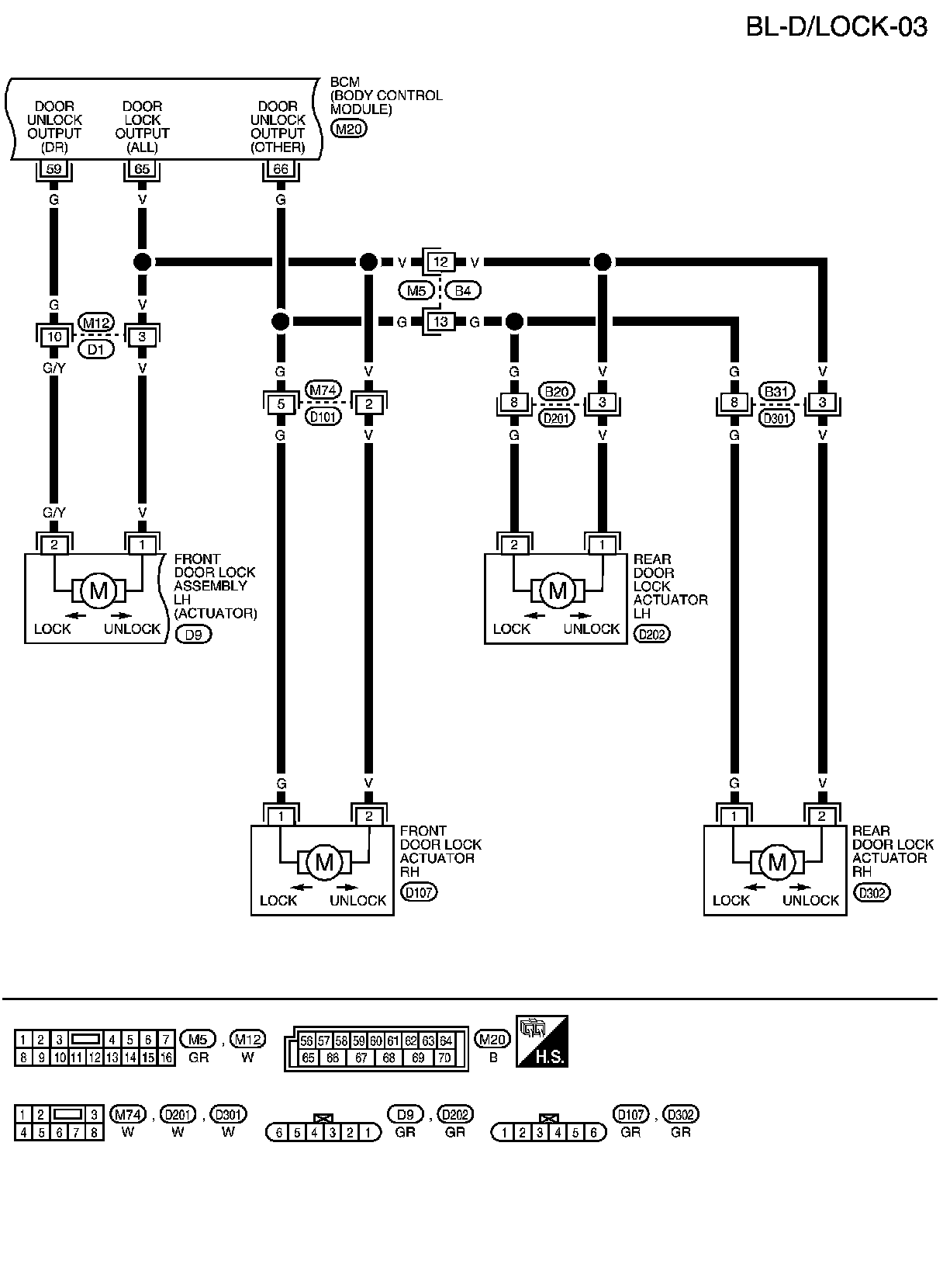

Wiring Diagram - D/LOCK - (Without Intelligent Key)
