D/Lock (With Intelligent Key)
D/Lock (With Intelligent Key)
POWER DOOR LOCK SYSTEM

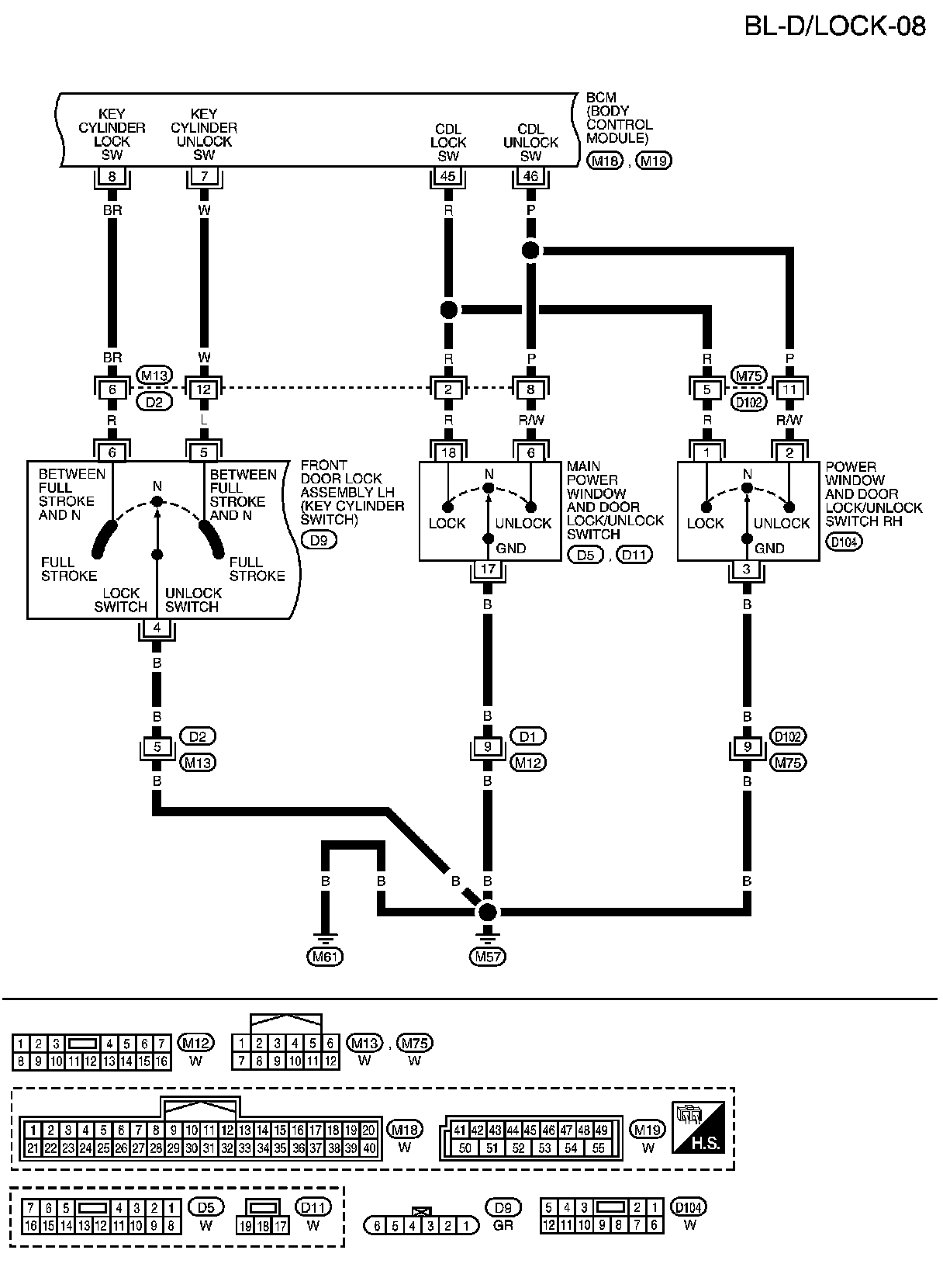

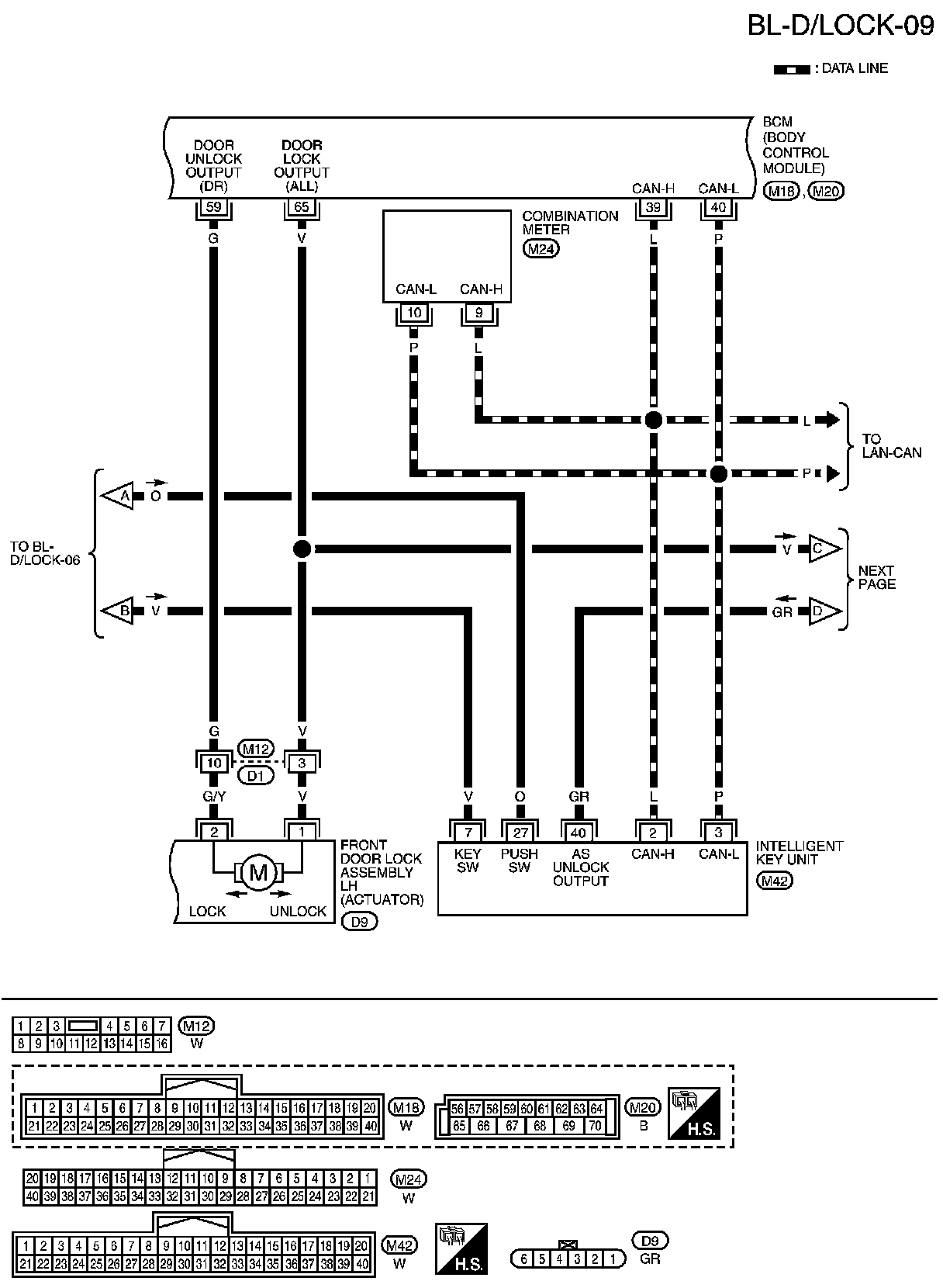

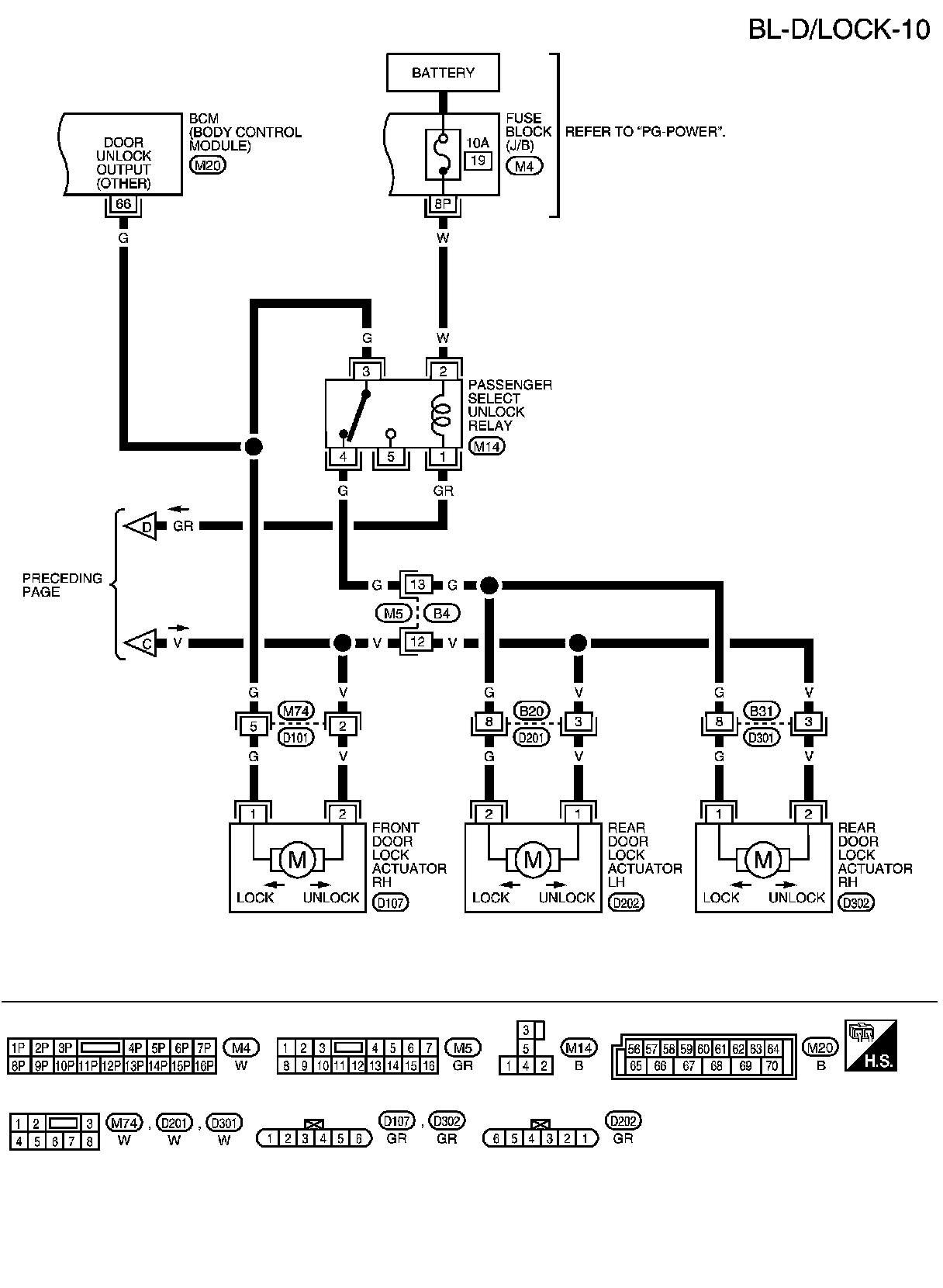

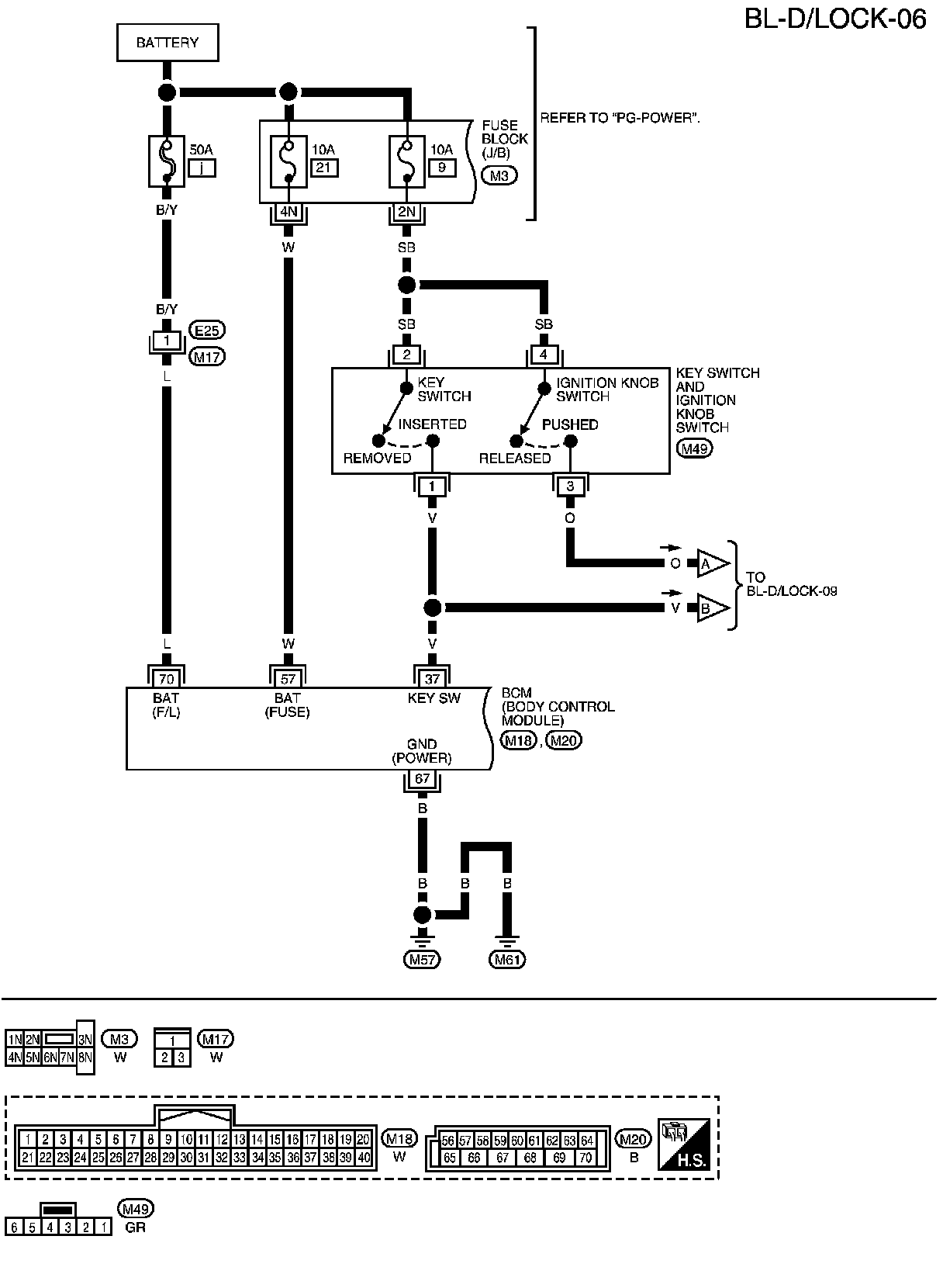

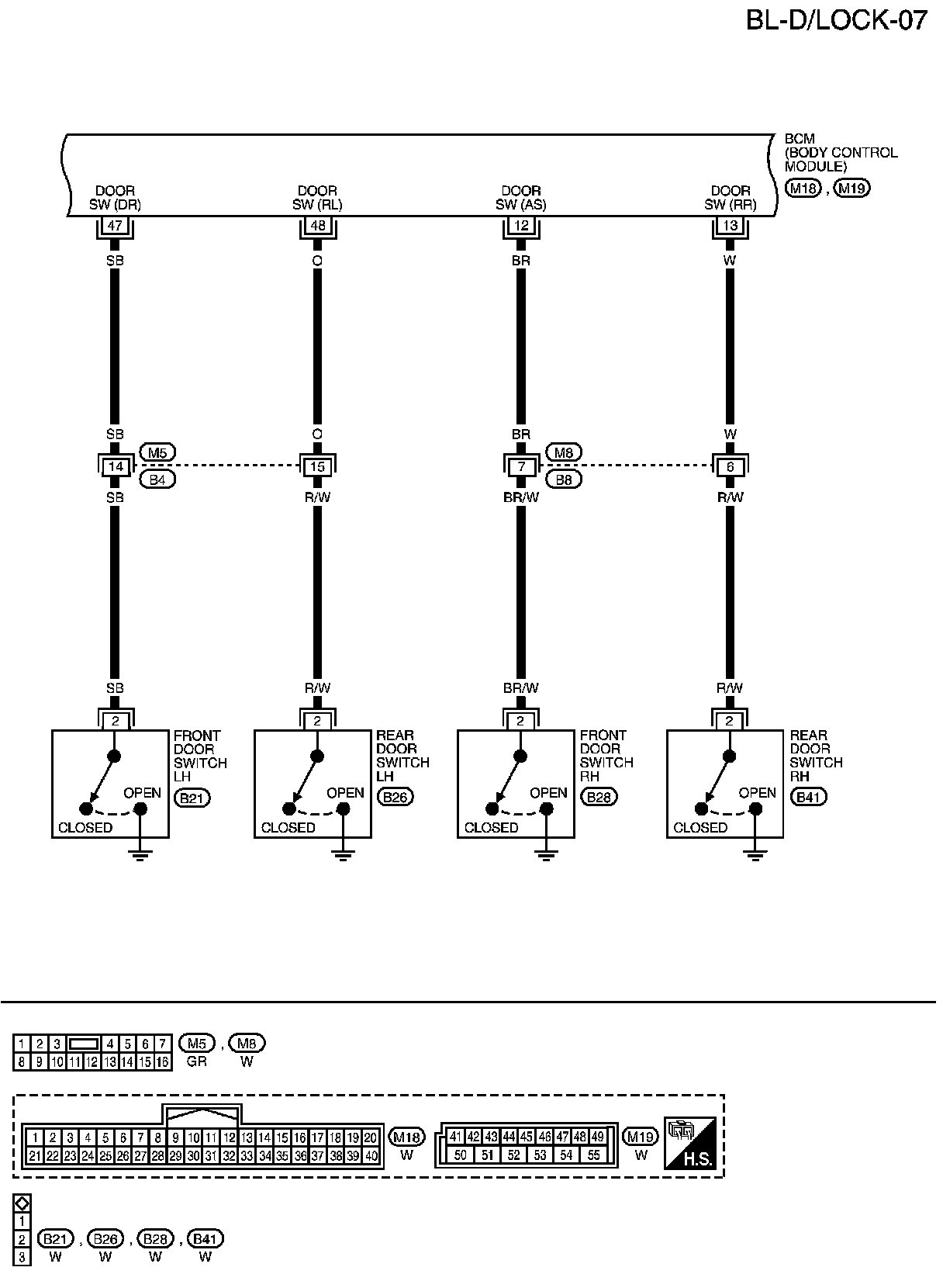

Wiring Diagram - D/LOCK - (With Intelligent Key)
