Schematic Without Intelligent Key
Schematic Without Intelligent Key

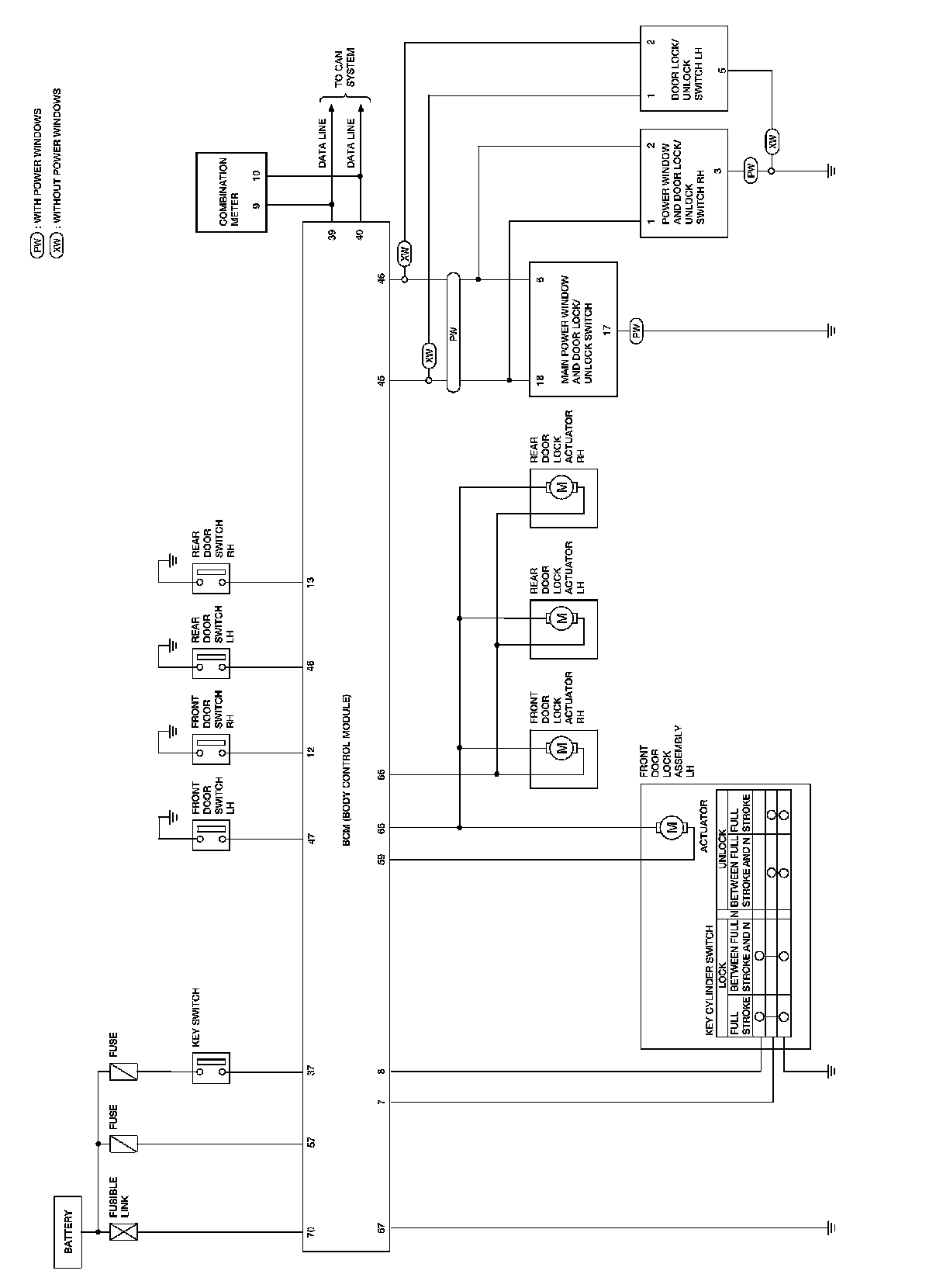

POWER DOOR LOCK SYSTEM
Schematic (Without Intelligent Key)
