Schematic With Intelligent Key
Schematic With Intelligent Key

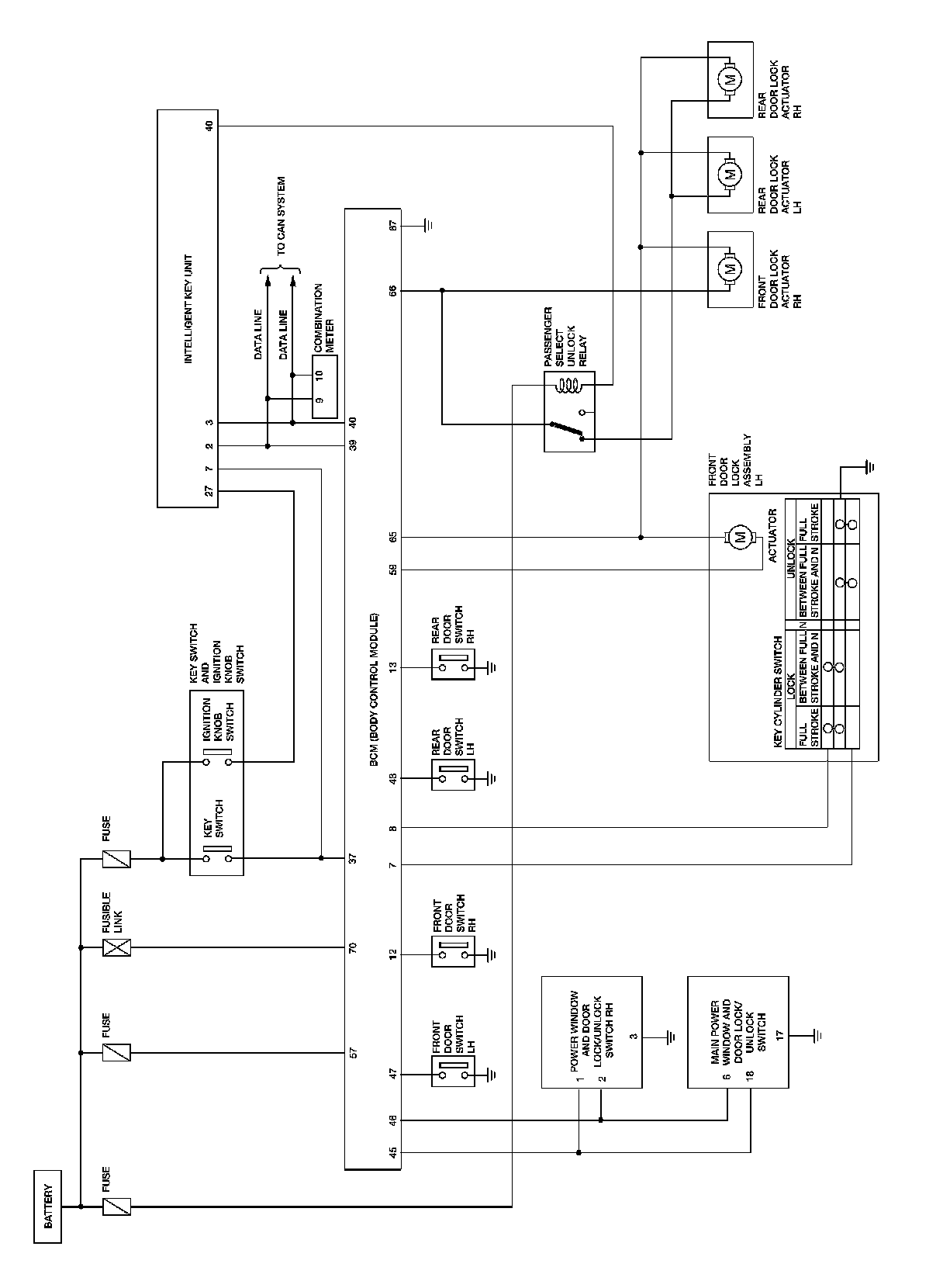

POWER DOOR LOCK SYSTEM
Schematic (With Intelligent Key)
