Intelligent Key System
>>
CONSULT Application Item
CONSULT Application Item
INTELLIGENT KEY SYSTEM
CONSULT Application Item

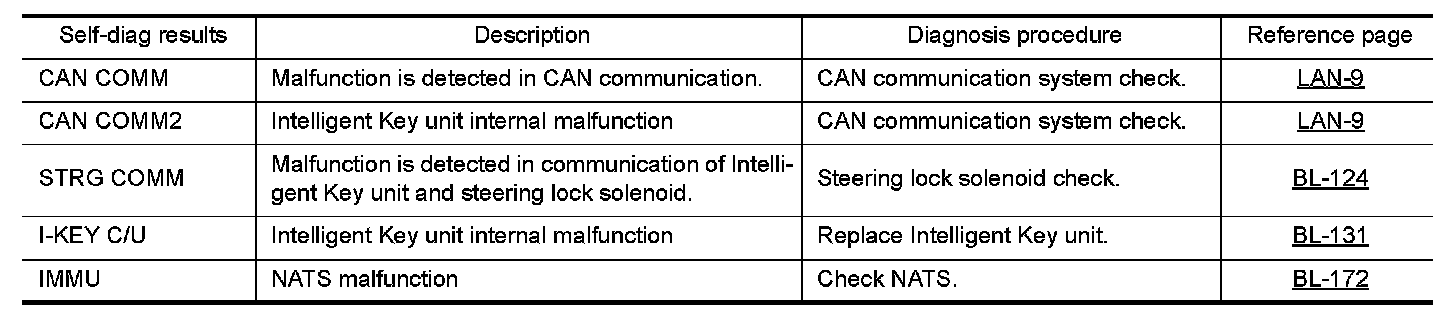

SELF-DIAGNOSTIC RESULTS

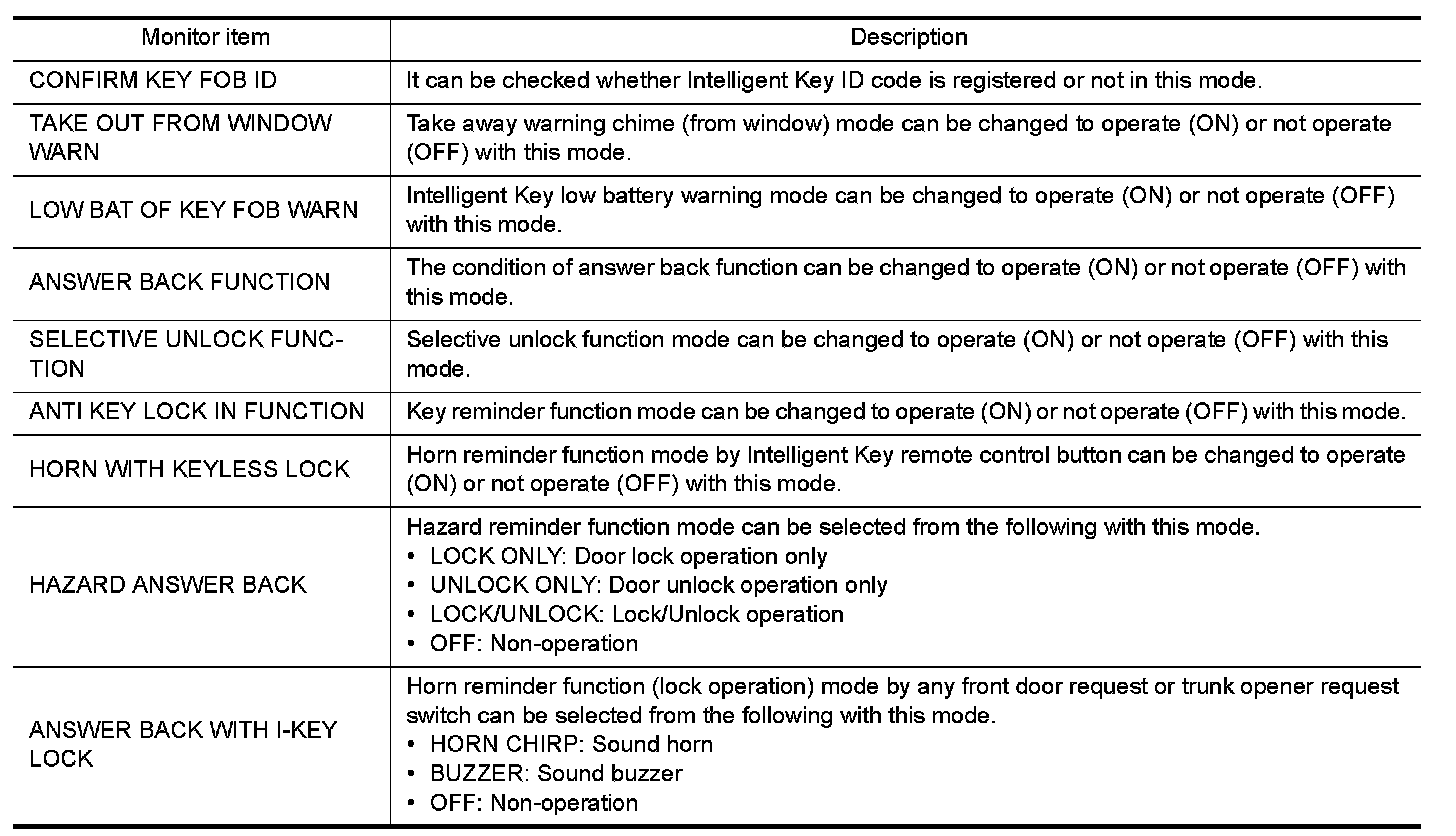

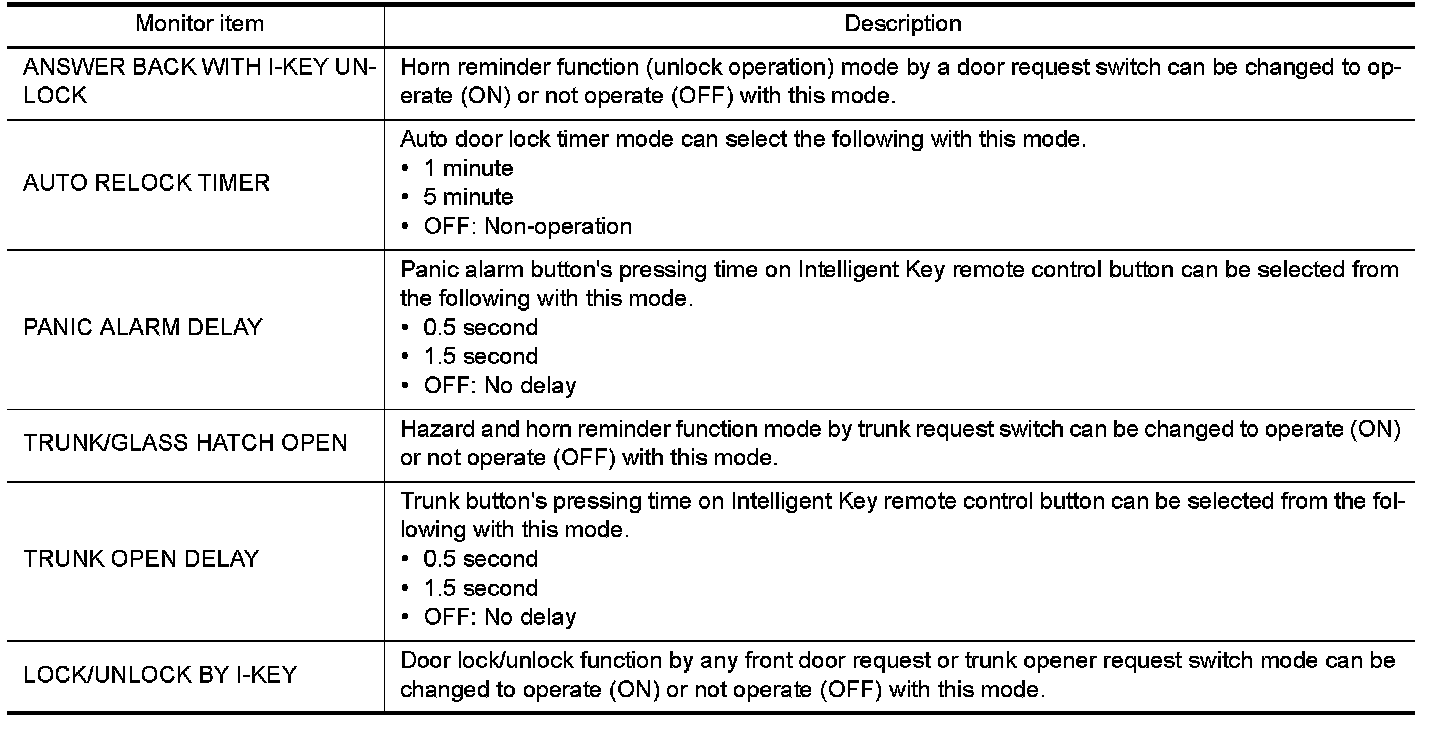

WORK SUPPORT

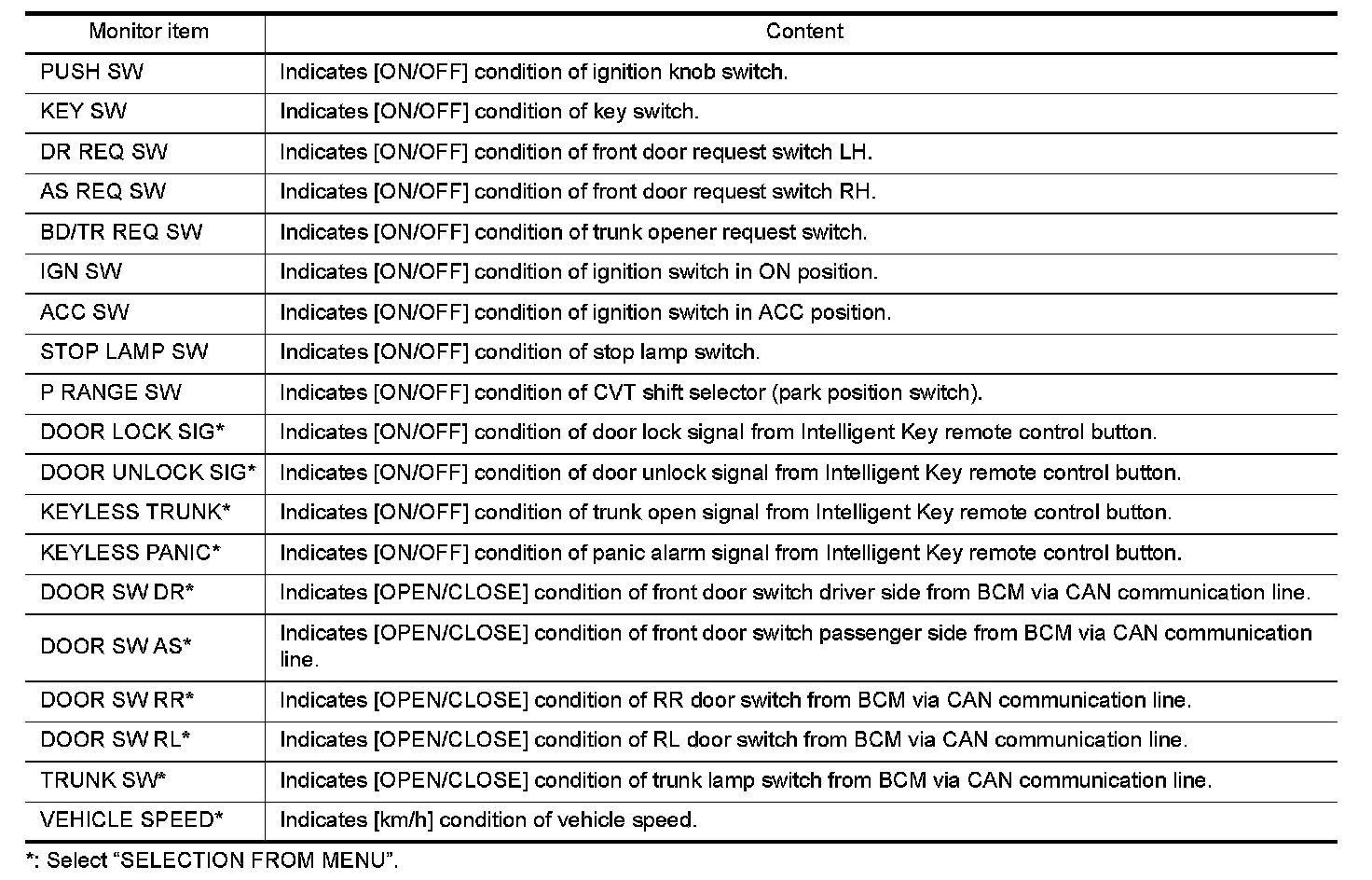

DATA MONITOR

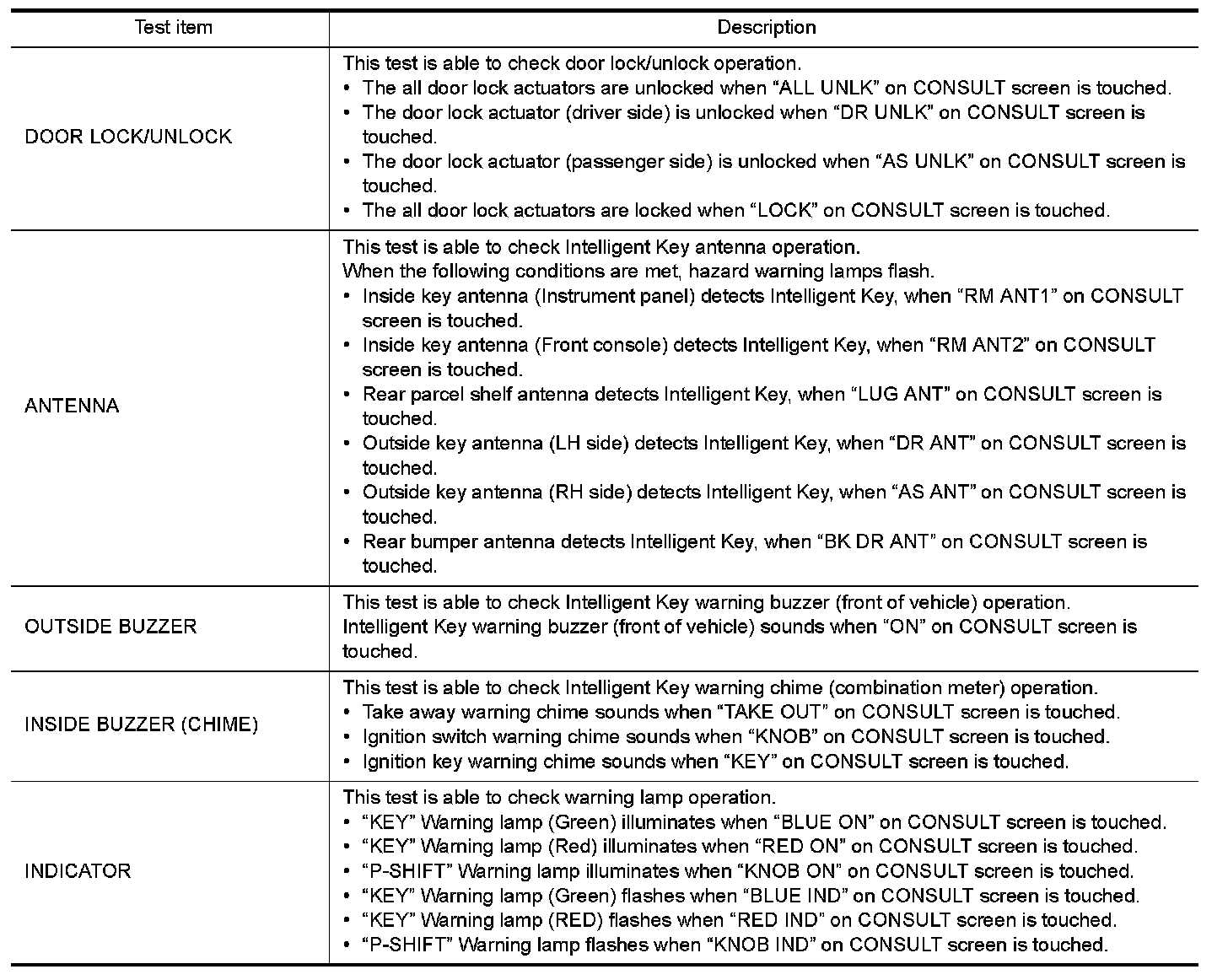

ACTIVE TEST
