Combination Meter

COMBINATION METER

Removal and Installation


REMOVAL

1.Remove instrument lower panel LH screw, position instrument lower panel LH to disconnect diagnostic
connector and hood release cable, and then remove instrument lower panel LH.

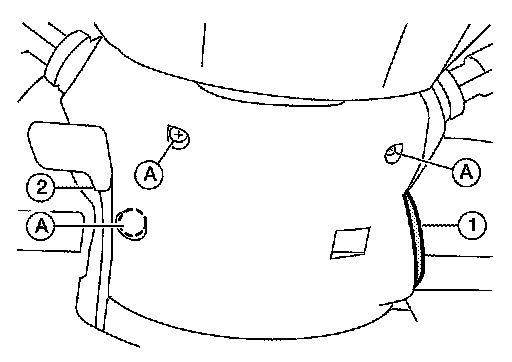

2.Remove steering lock escutcheon (1).
3.Remove steering column cover screws (A), then remove steering column upper cover and lower cover (2).
4.Disengage the metal clips, and then remove cluster lid A.

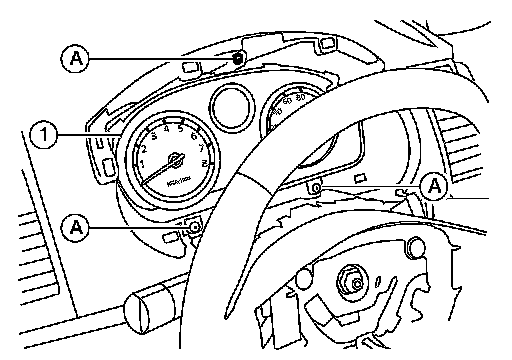

5.Remove the combination meter screws (A), pull out the combination meter (1) to disconnect the connector, remove the combination meter (1).

INSTALLATION

Installation is in the reverse order of removal.
