Front Fender: Service and Repair

FRONT FENDER

Removal and Installation












REMOVAL


CAUTION:
While removing use a shop cloth to protect the vehicle body from damage.
1.Remove the front bumper fascia. Service and Repair.
2.Remove the cowl top cover (LH/RH). Service and Repair.
3.Remove the front fender protector. Removal And Installation.

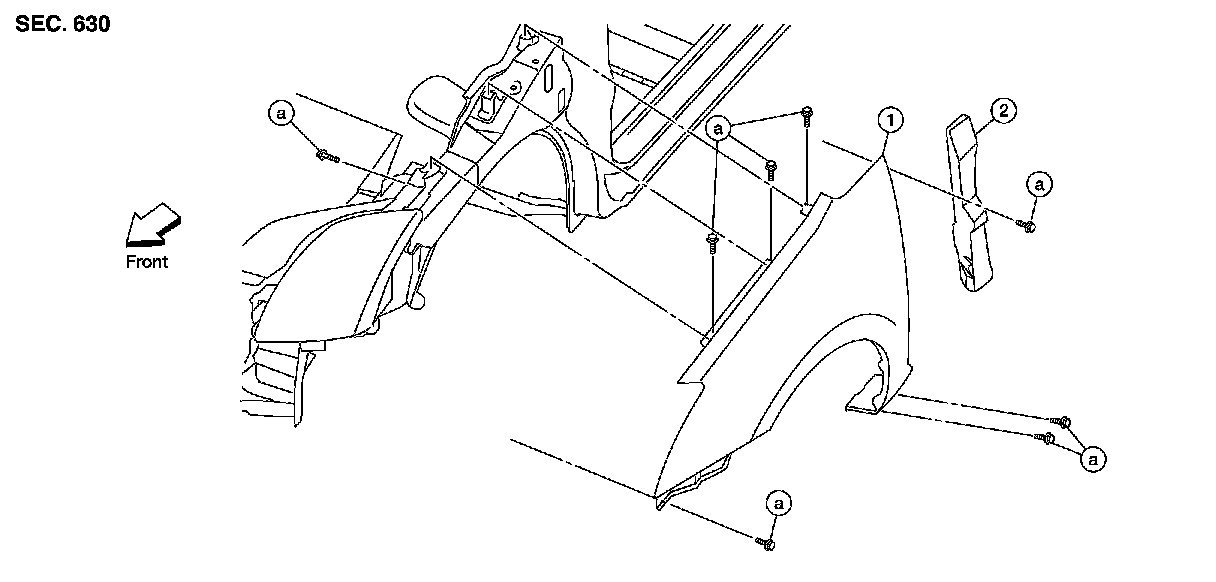

4.Remove the bolts and the front fender.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:
- After installing, apply touch-up paint onto the head of the front fender bolts.
