Trunk / Liftgate Shock / Support: Service and Repair

TRUNK LID

Trunk Lid Stay Disposal

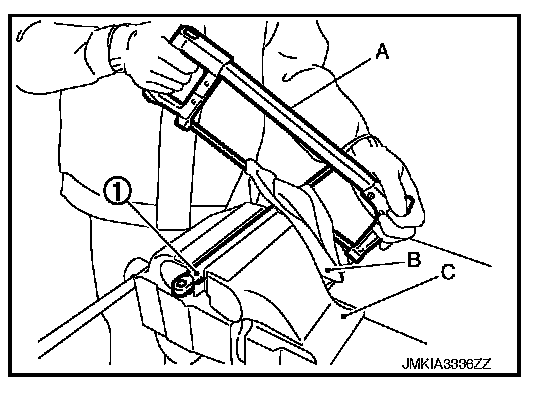

1.Secure trunk lid stay (1) using a vise (C).

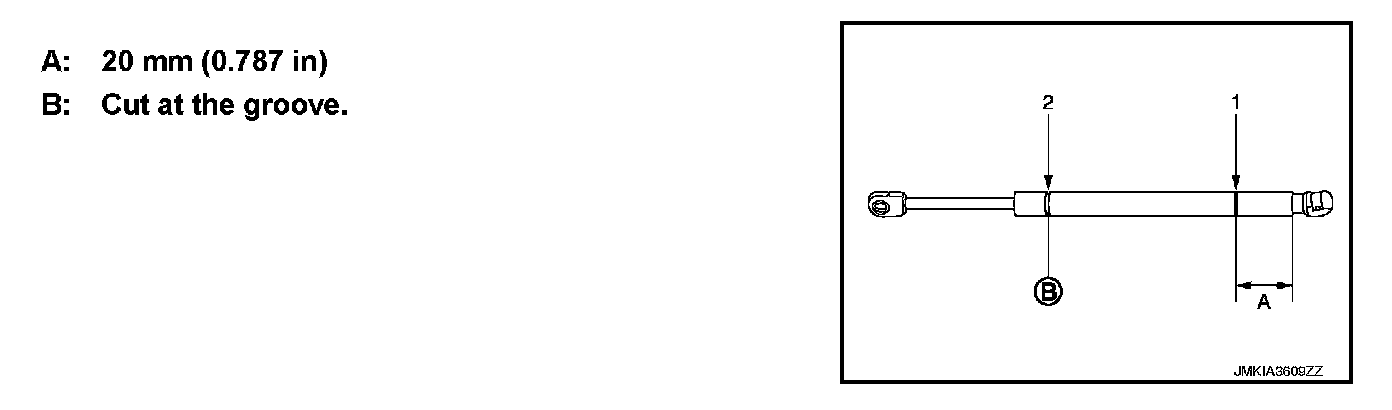

2.Using hacksaw (A) slowly make 2 holes in the trunk lid stay, in numerical order as shown in the figure.

CAUTION:
- When cutting a hole on trunk lid stay, always cover a hacksaw using a shop cloth (B) to avoid scattering metal fragments or oil.
- Wear eye protection (safety glasses).
- Wear gloves.
