Body and Frame: Description and Operation

CLIP AND FASTENER

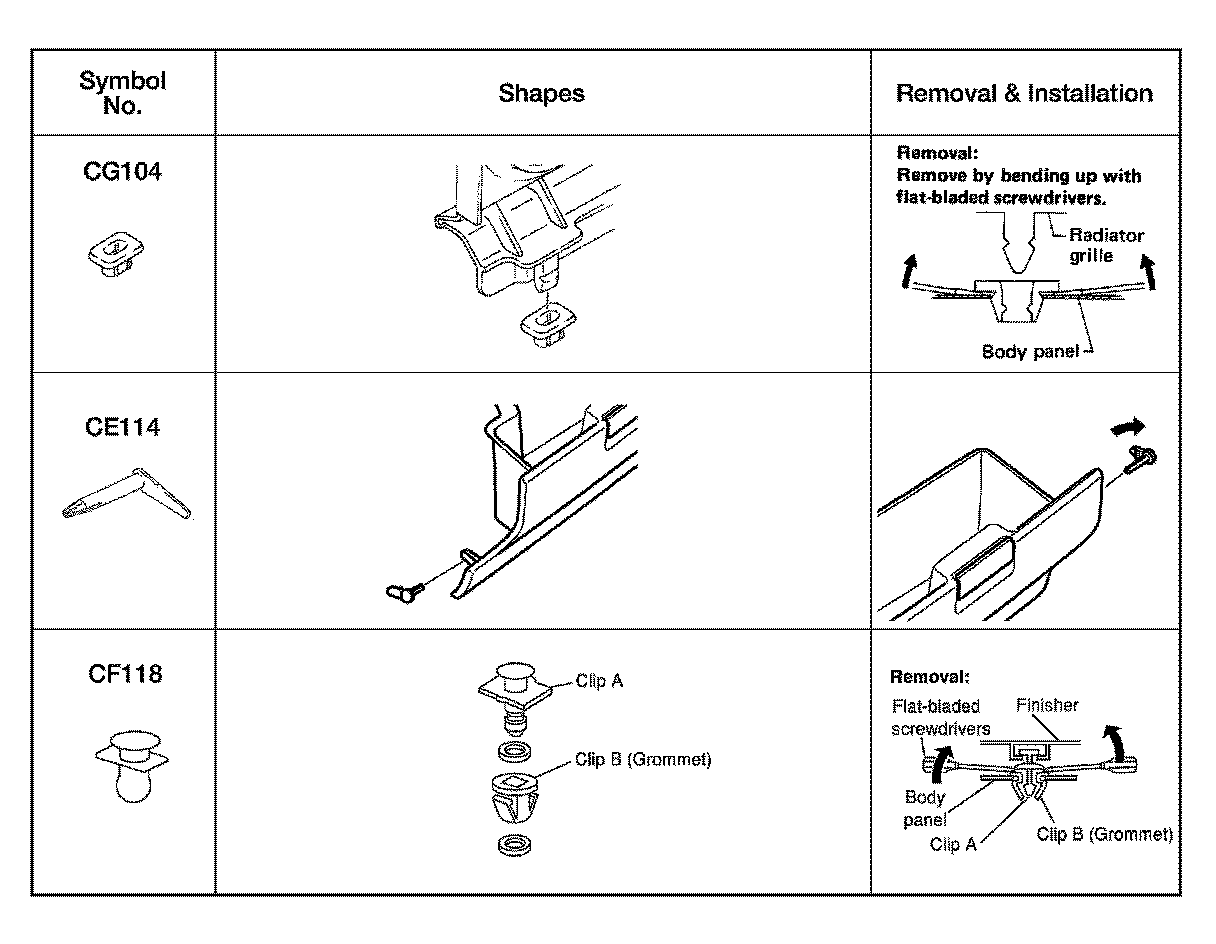

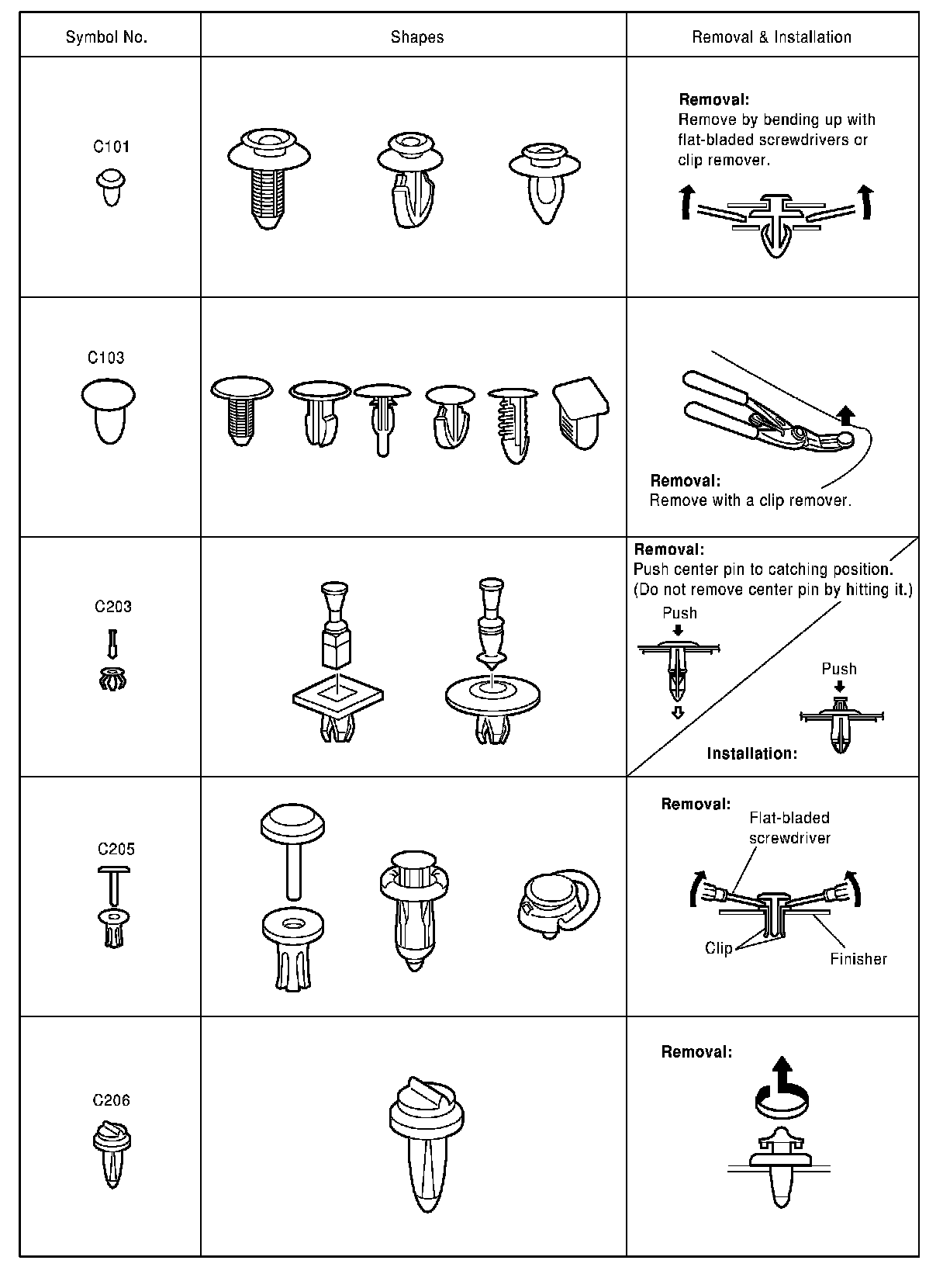

Descriptions for Clips and Fasteners

Replace any clips and fasteners which are damaged during removal or installation.
