FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2012
>>
Sentra L4-2.0L (MR20DE)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
Terminal And Reference Value
>>
Audio Unit
>>
Mid System
Mid System
AUDIO

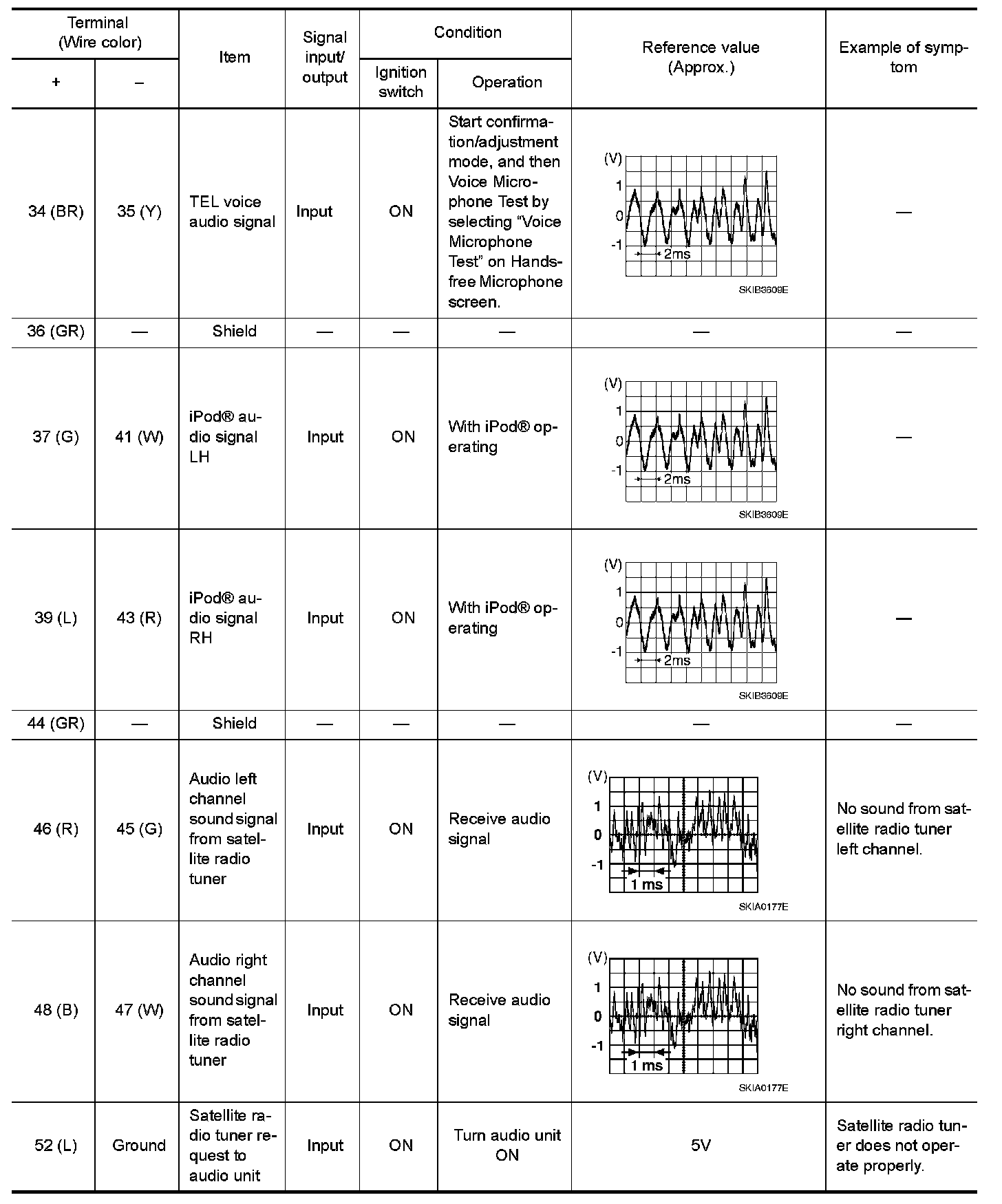

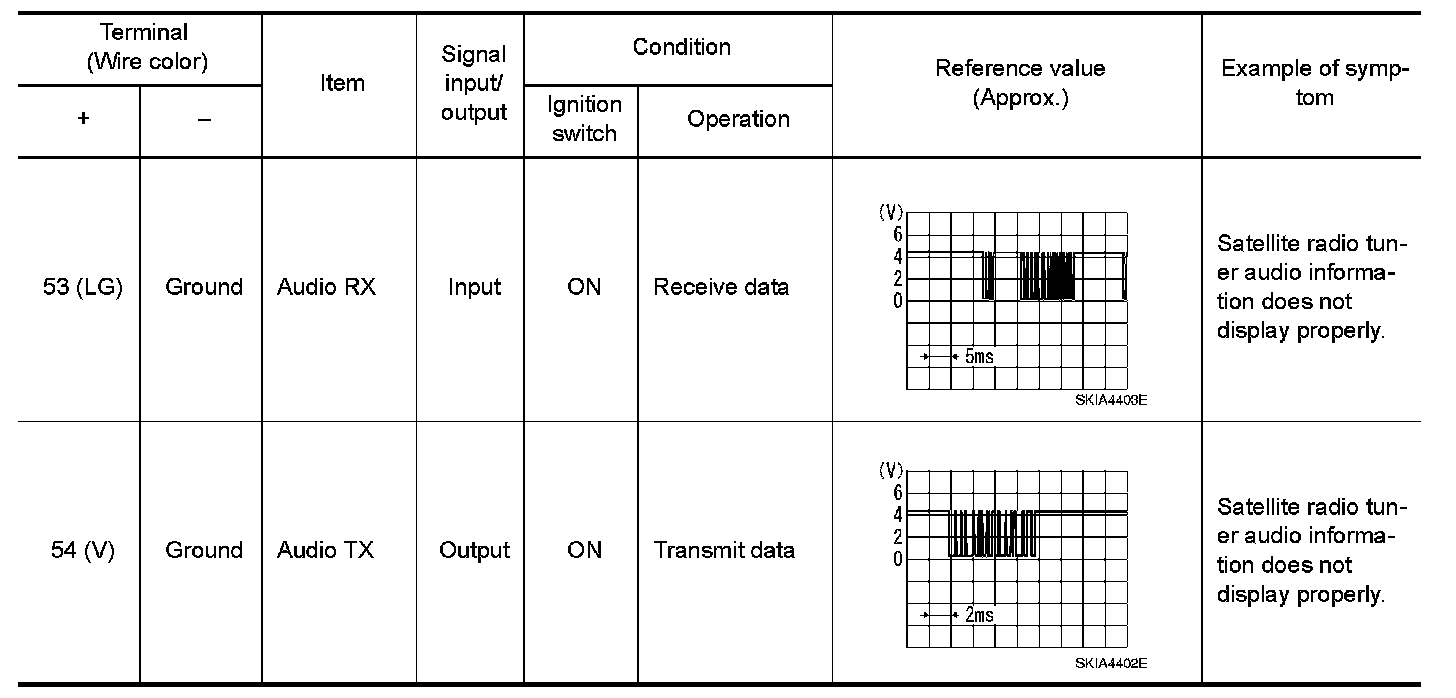

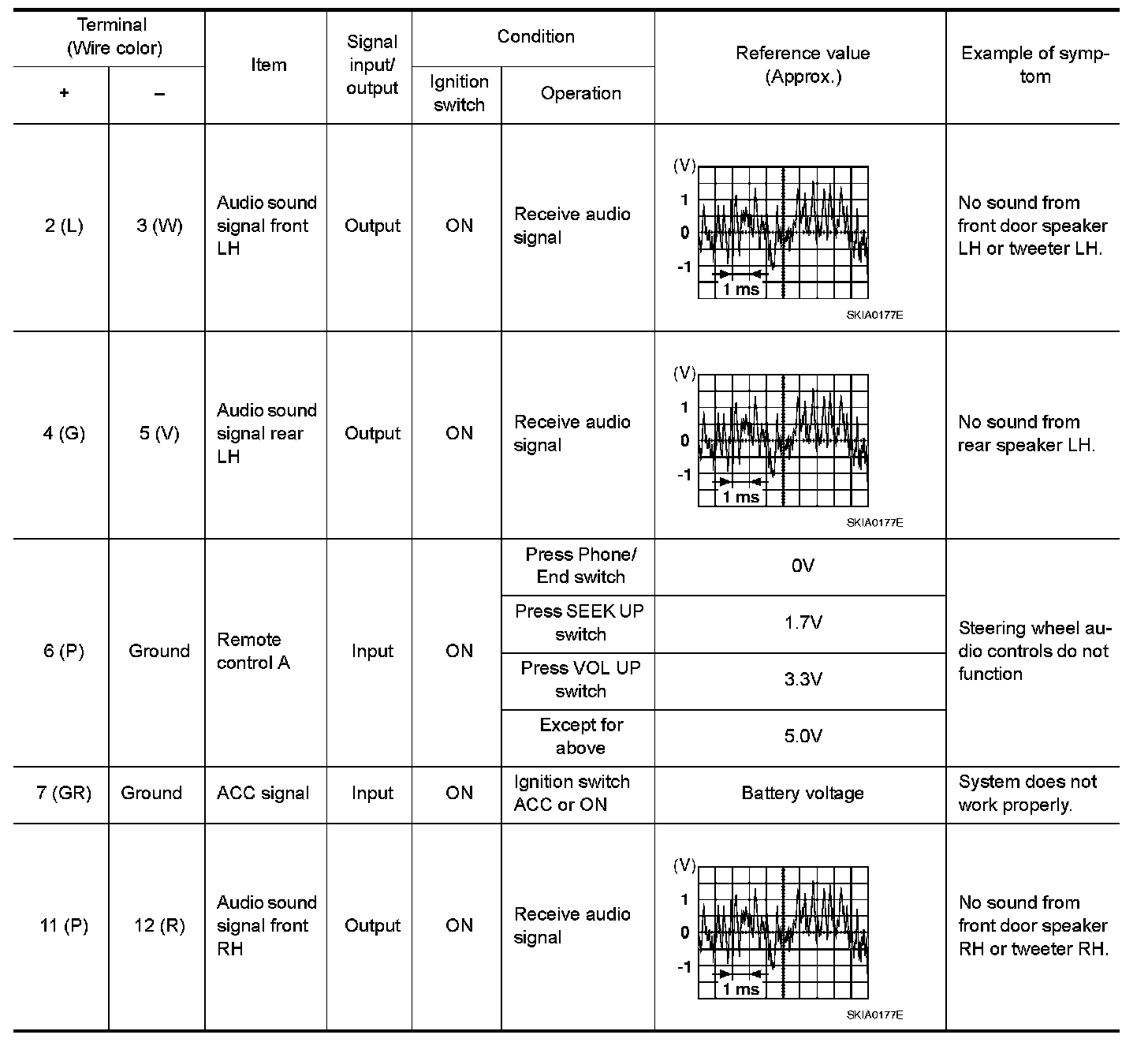

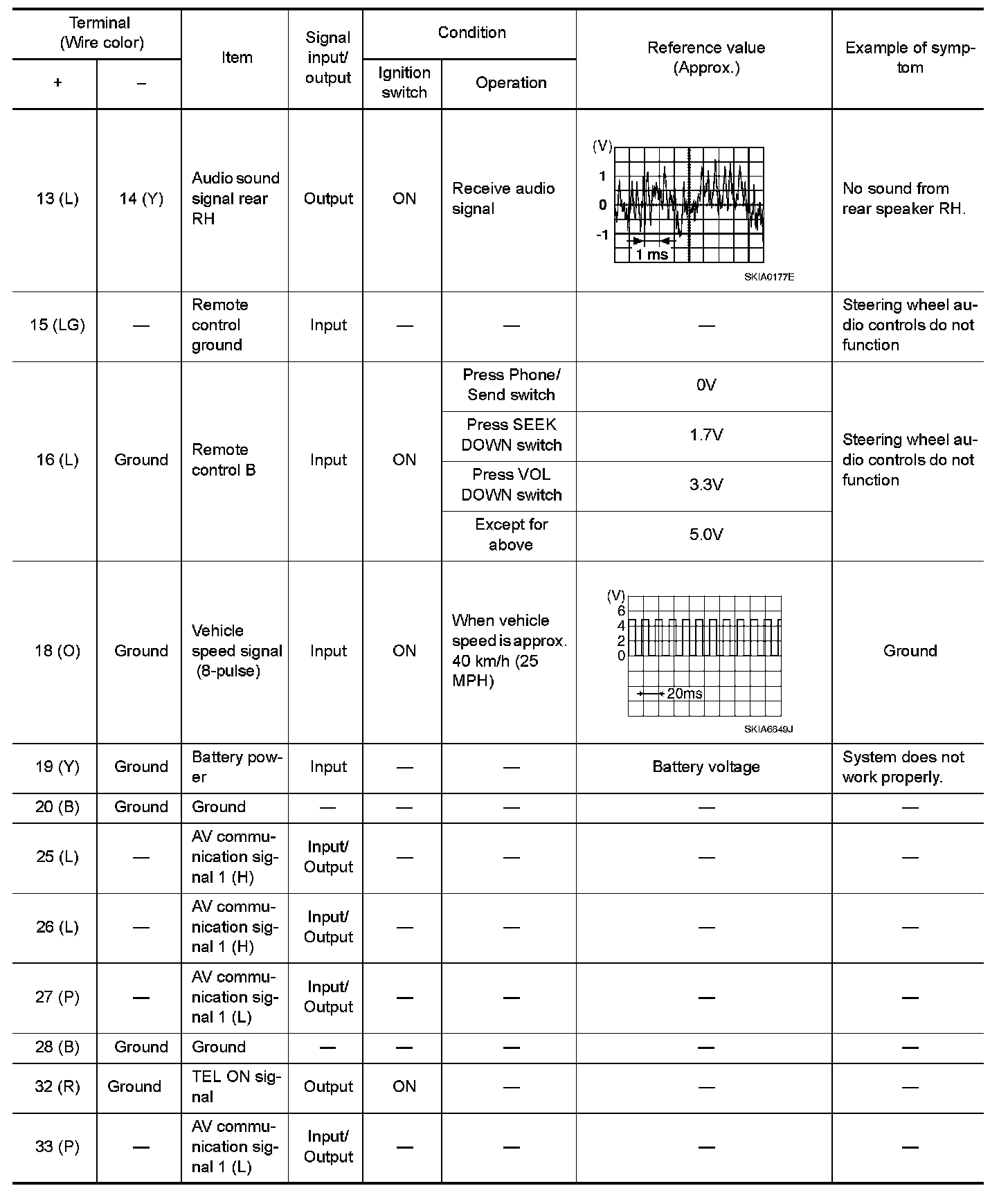

Terminal and Reference Value for Audio Unit (Mid System)
