Without Rockford Fosgate




AUDIO

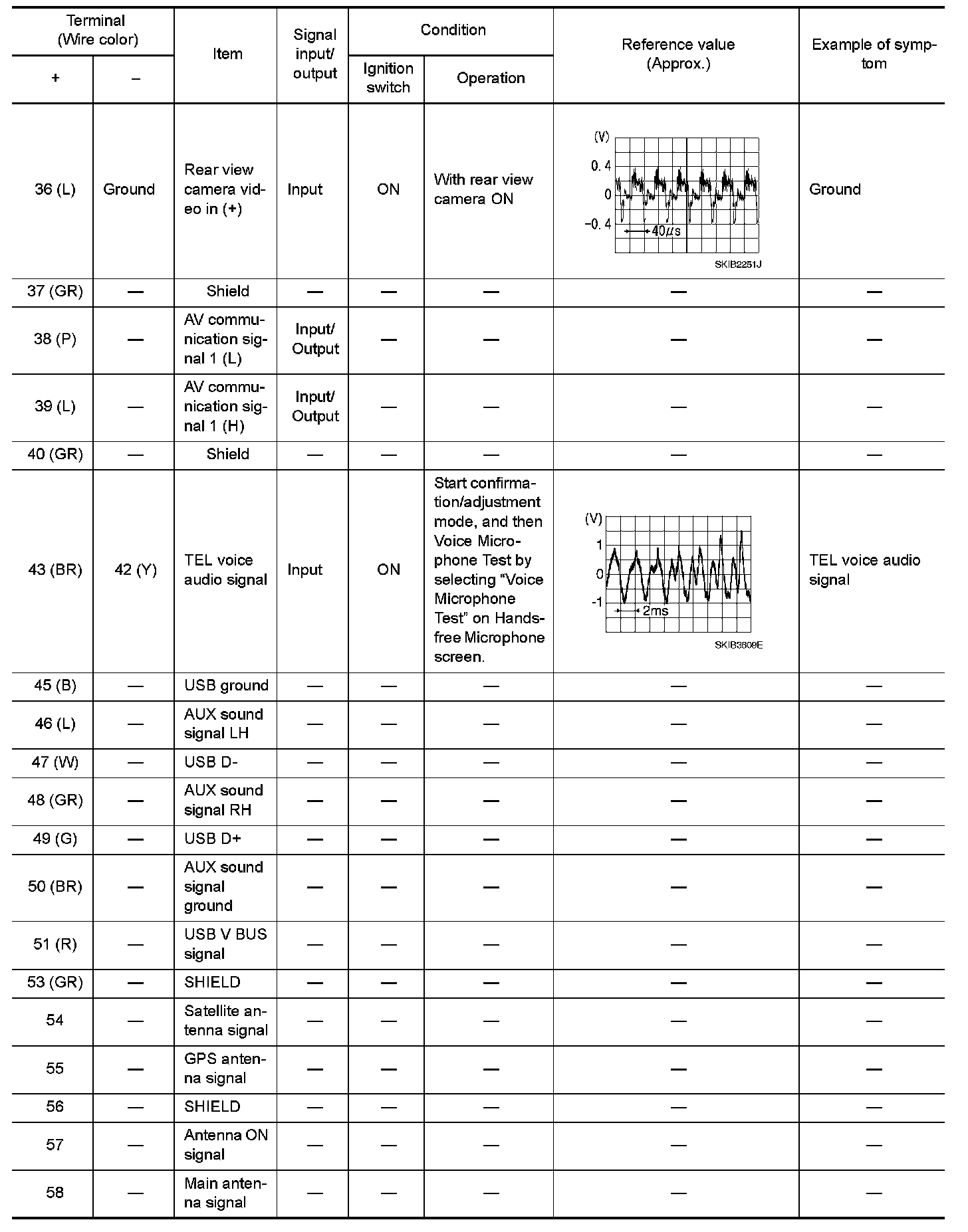

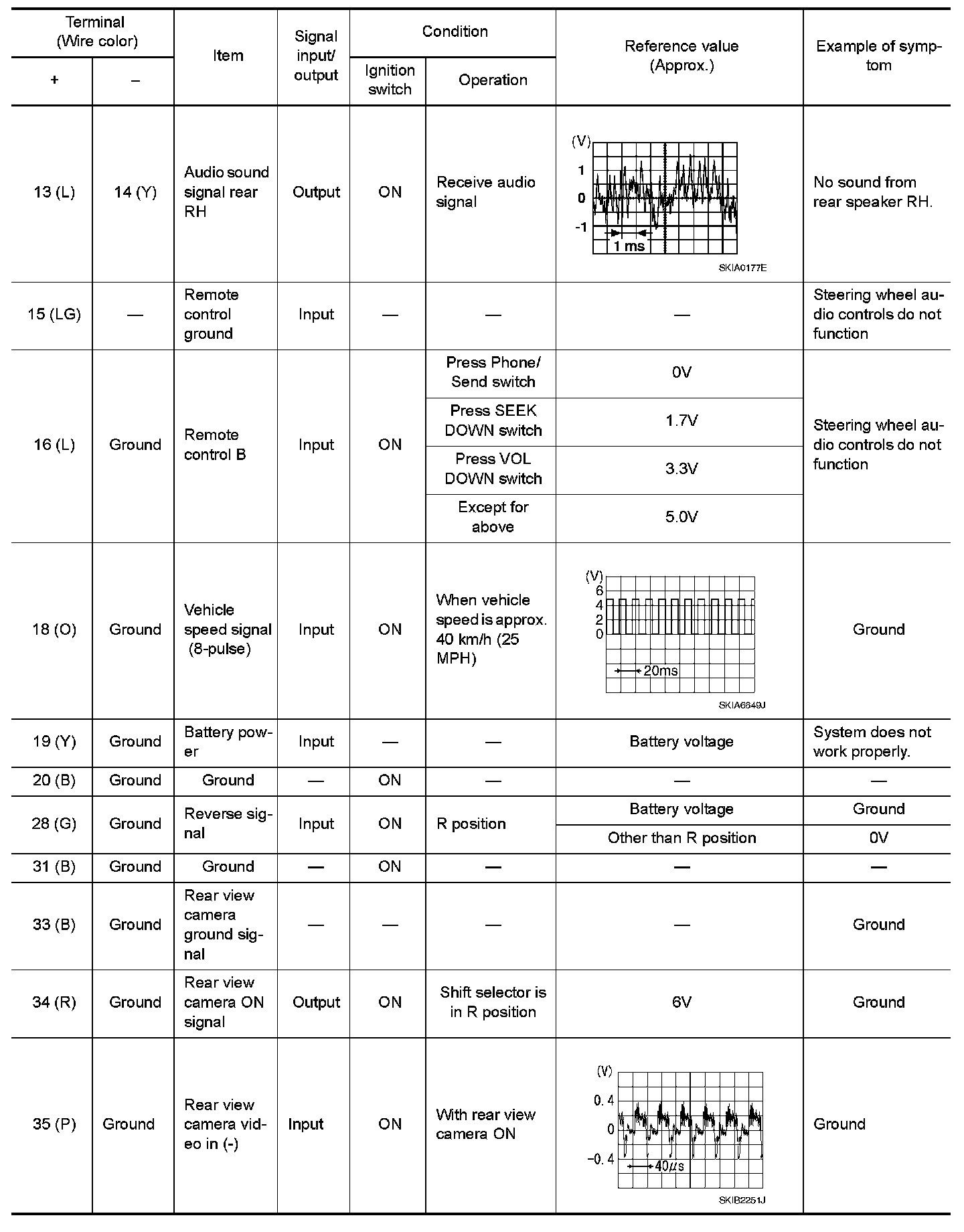

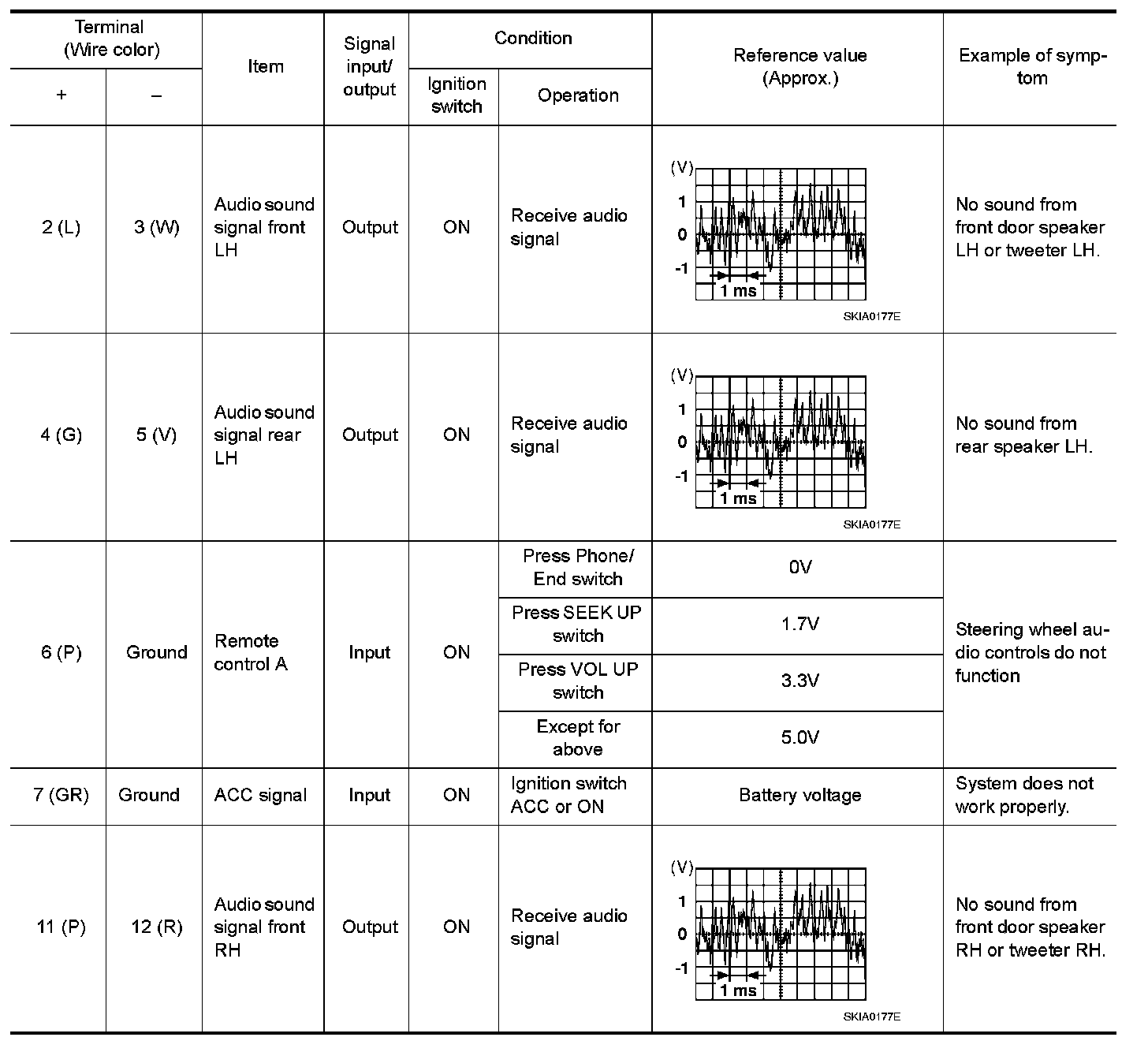

Terminal and Reference Value for AV Control Unit (Without Rockford Fosgate)
