Premium System Without Rockford Fosgate




AUDIO

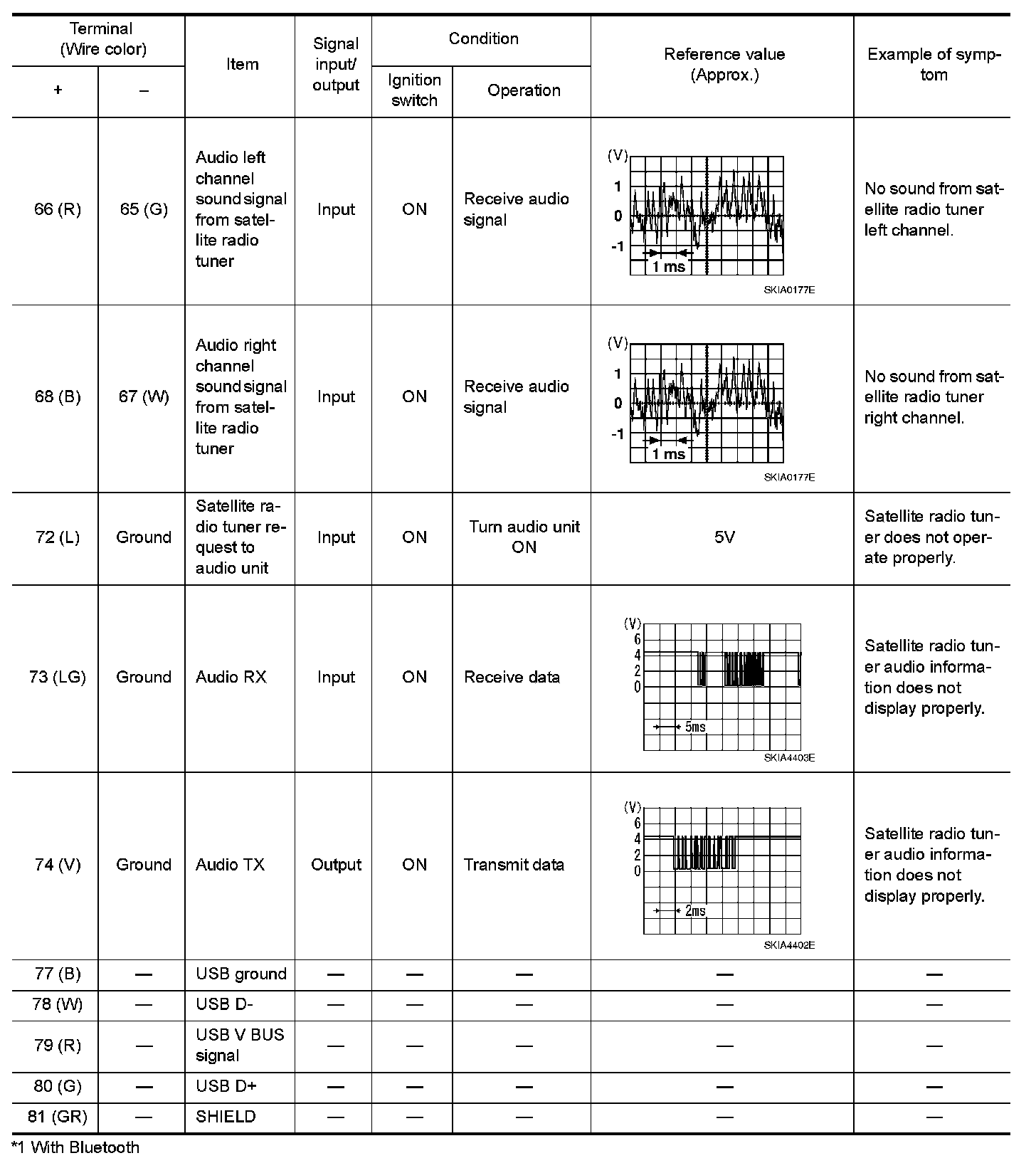

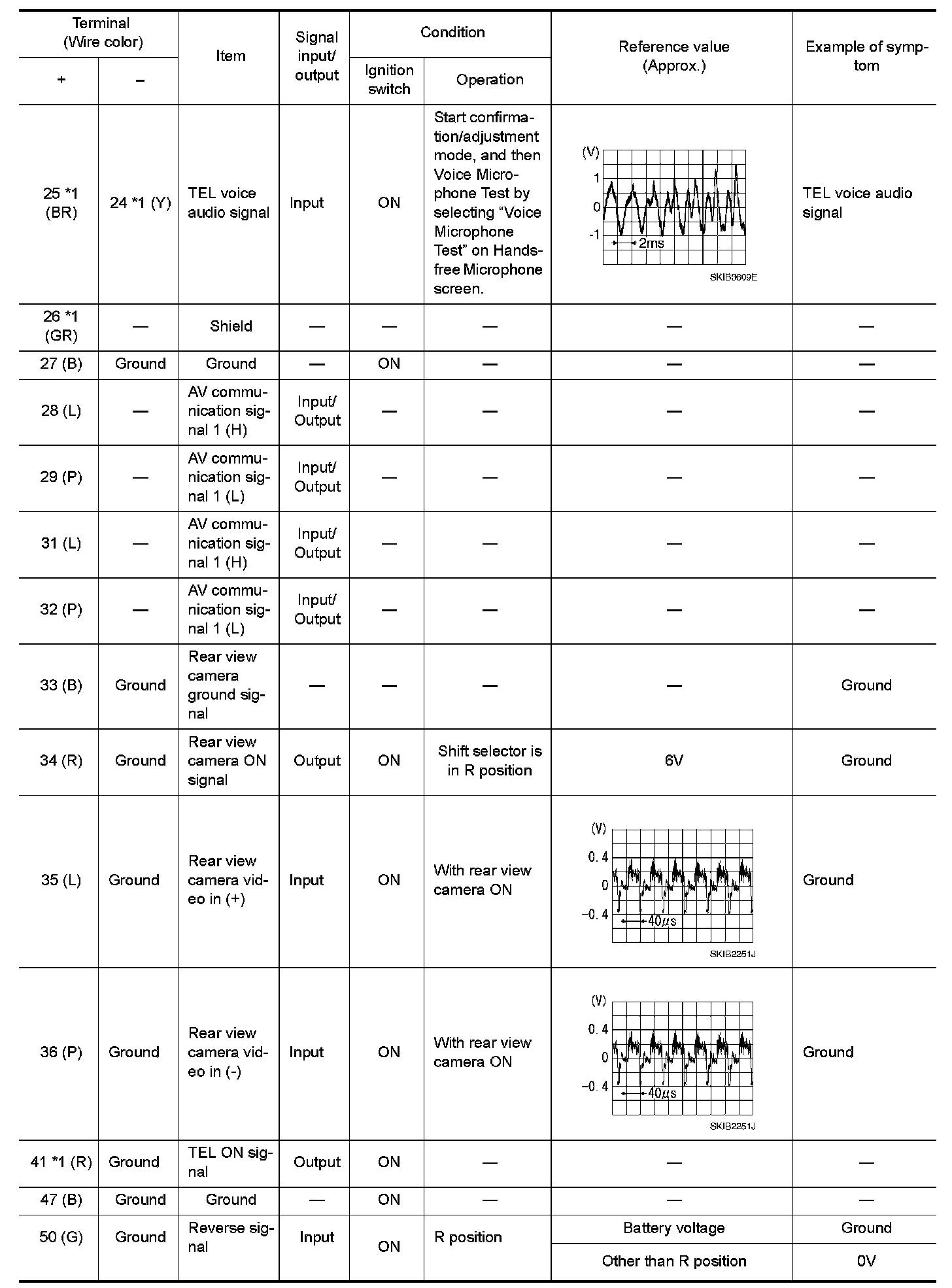

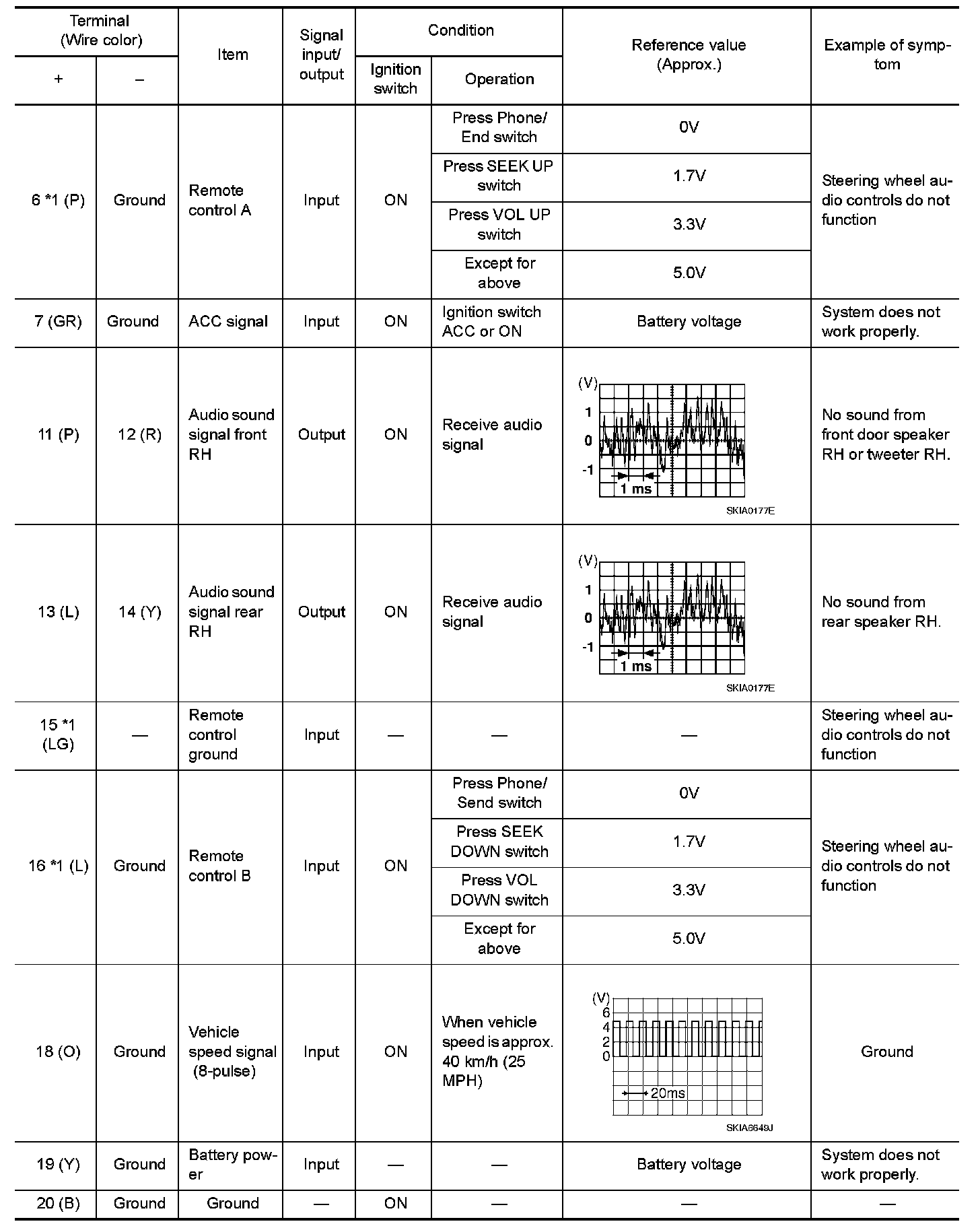

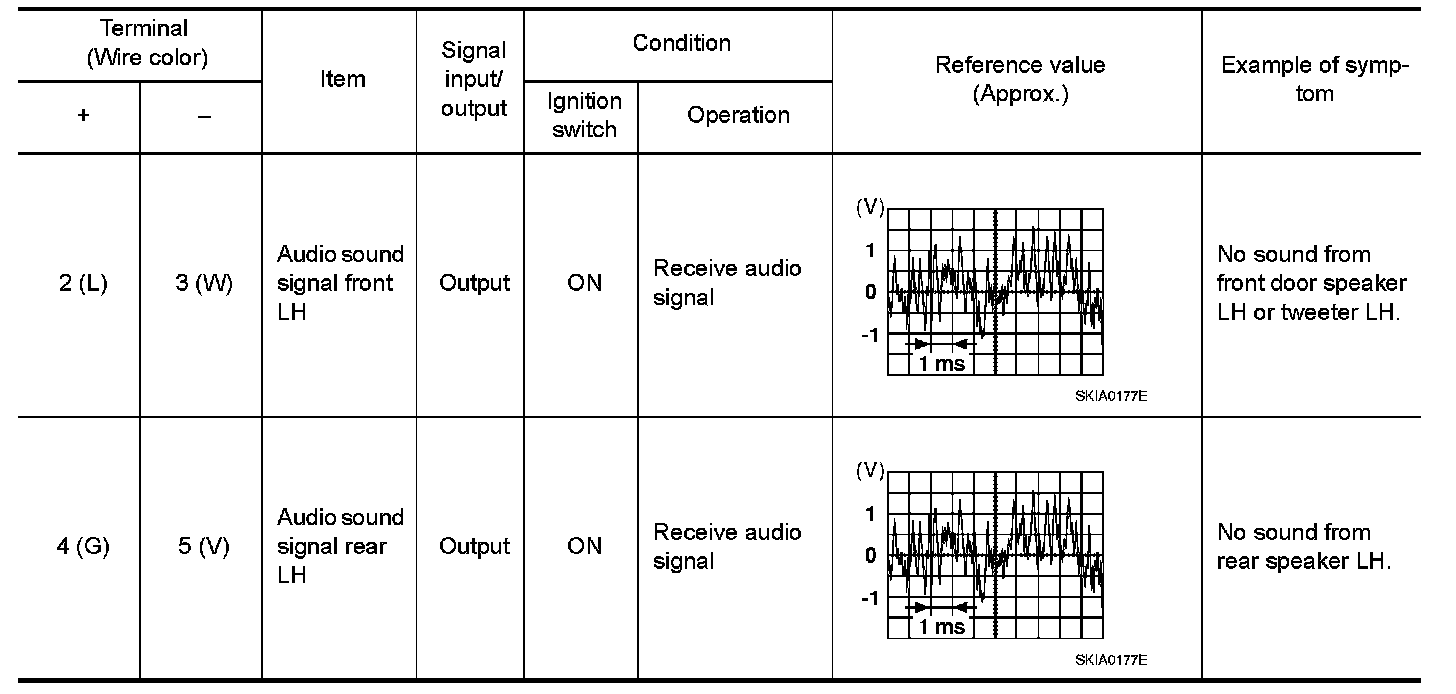

Terminal and Reference Value for AV Control Unit (Premium System without Rockford Fosgate)
