Home >> Nissan-Datsun >> 2012 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Terminal And Reference Value >> AV Control Unit >> Premium System With Rockford Fosgate

Premium System With Rockford Fosgate




AUDIO

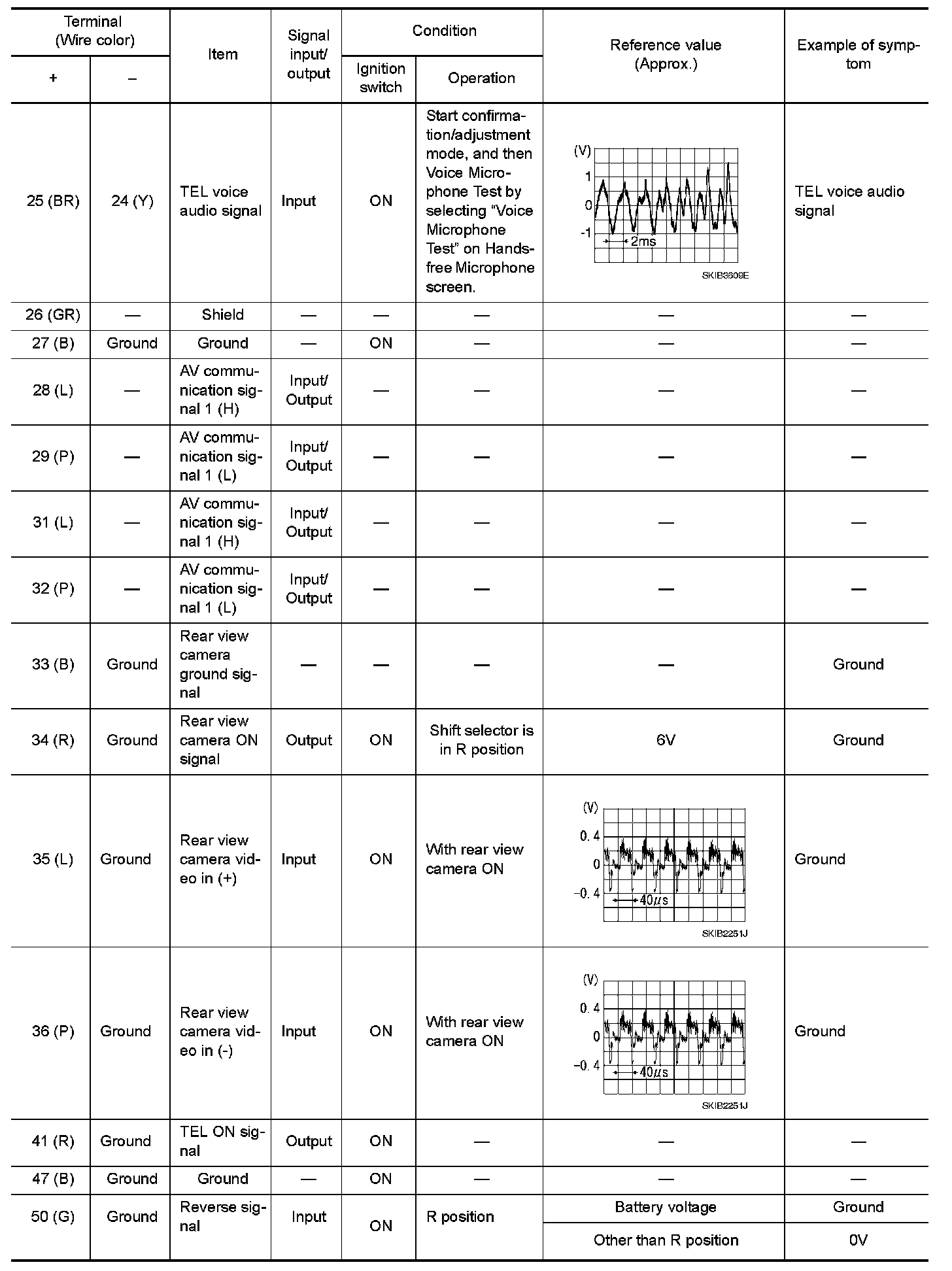

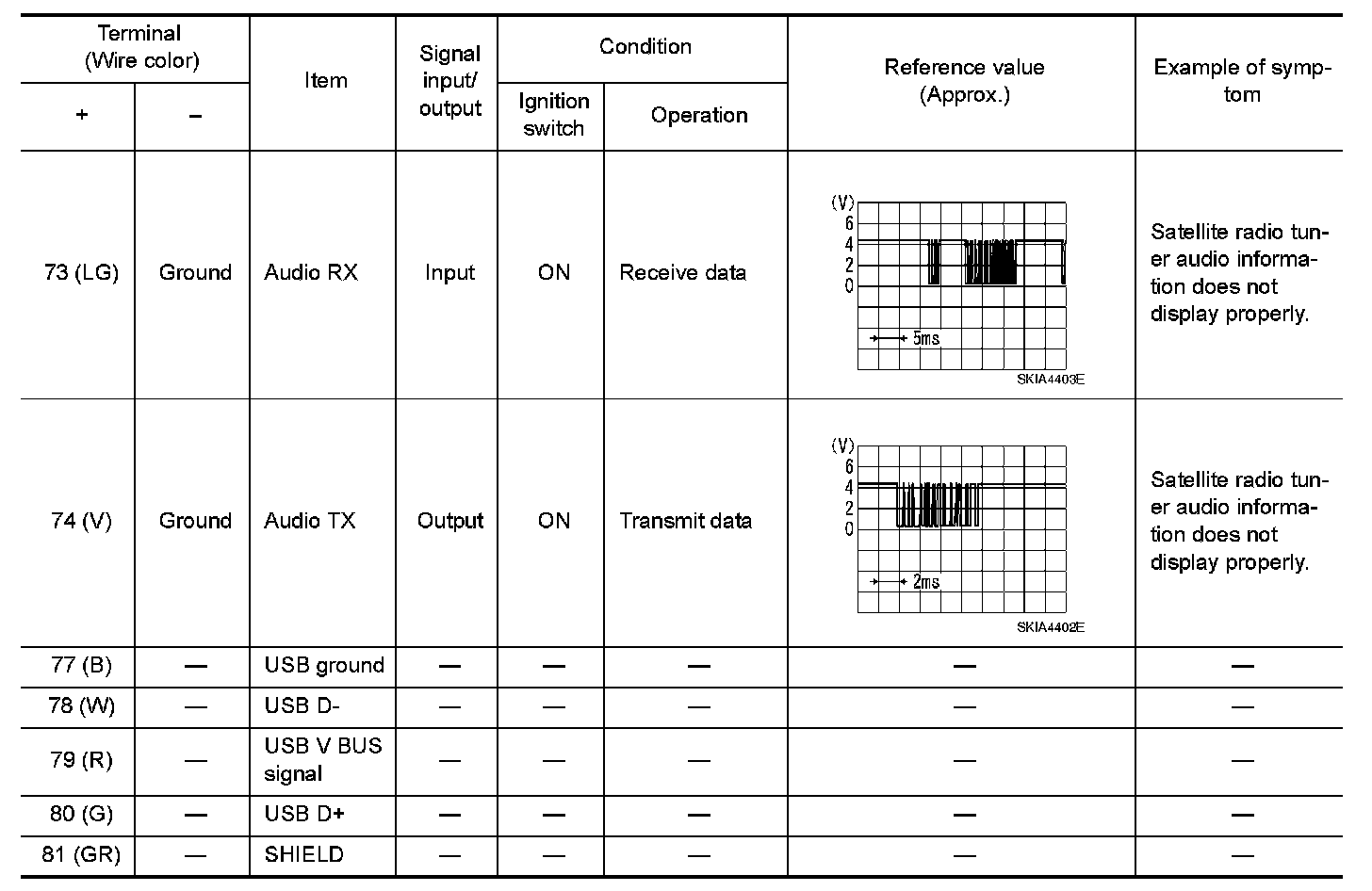

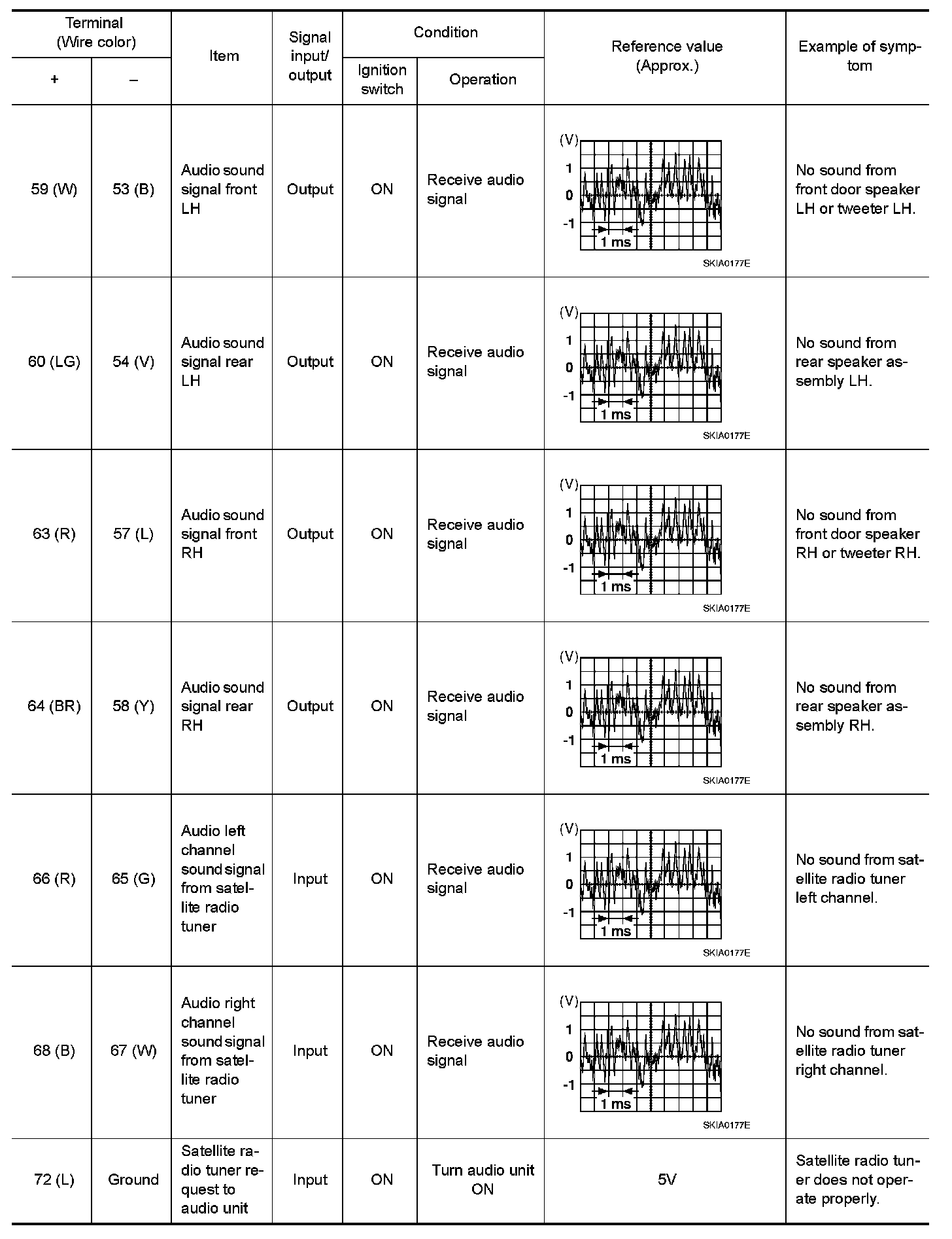

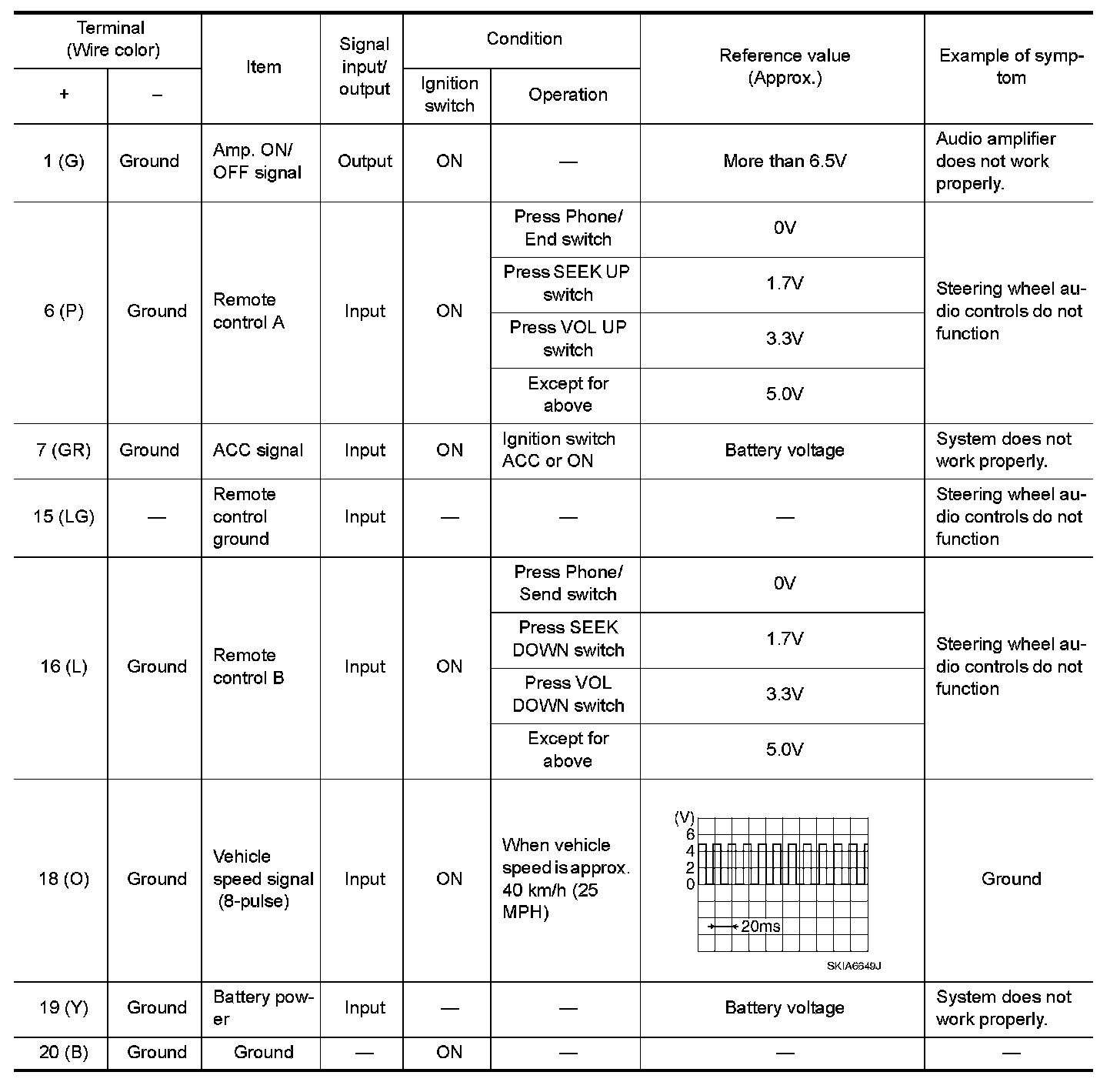

Terminal and Reference Value for AV Control Unit (Premium System with Rockford Fosgate)
