Vehicle Security (Theft Warning) System




VEHICLE SECURITY (THEFT WARNING) SYSTEM

CONSULT Function (BCM)

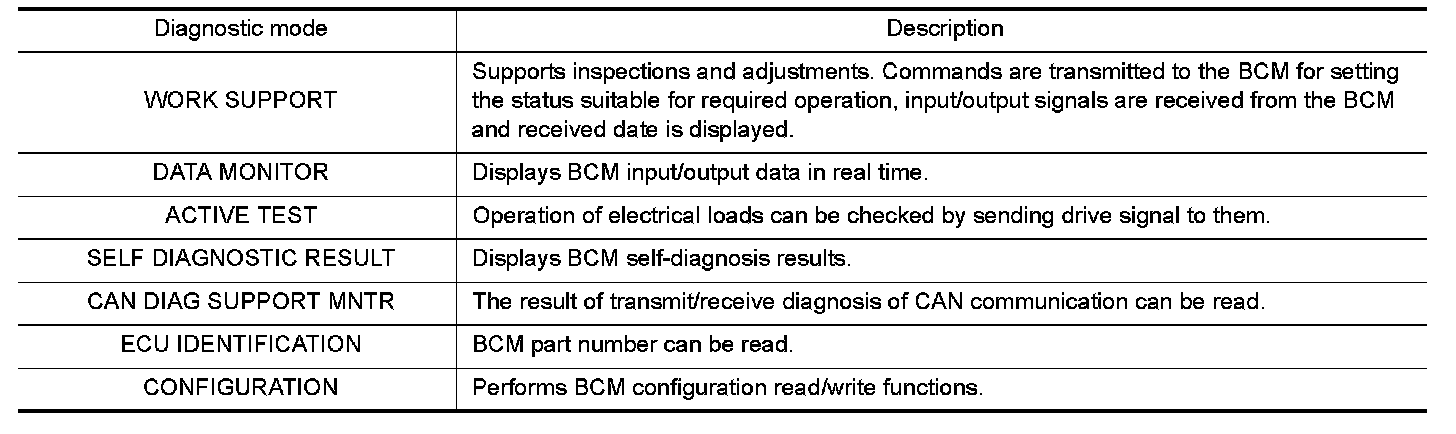

CONSULT can display each diagnostic item using the diagnostic test modes shown following.






CONSULT APPLICATION ITEM

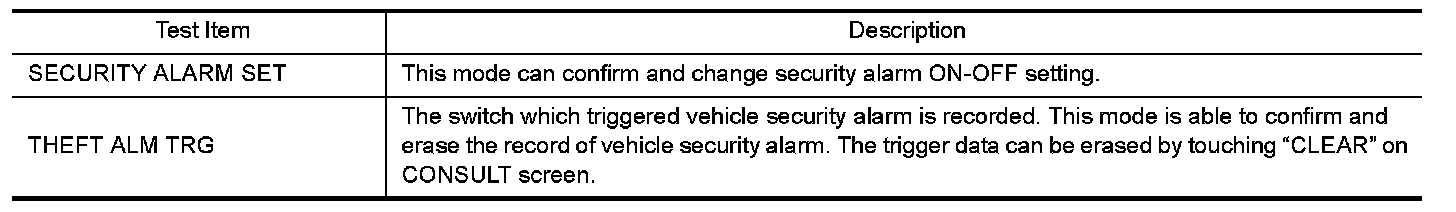

Work Support

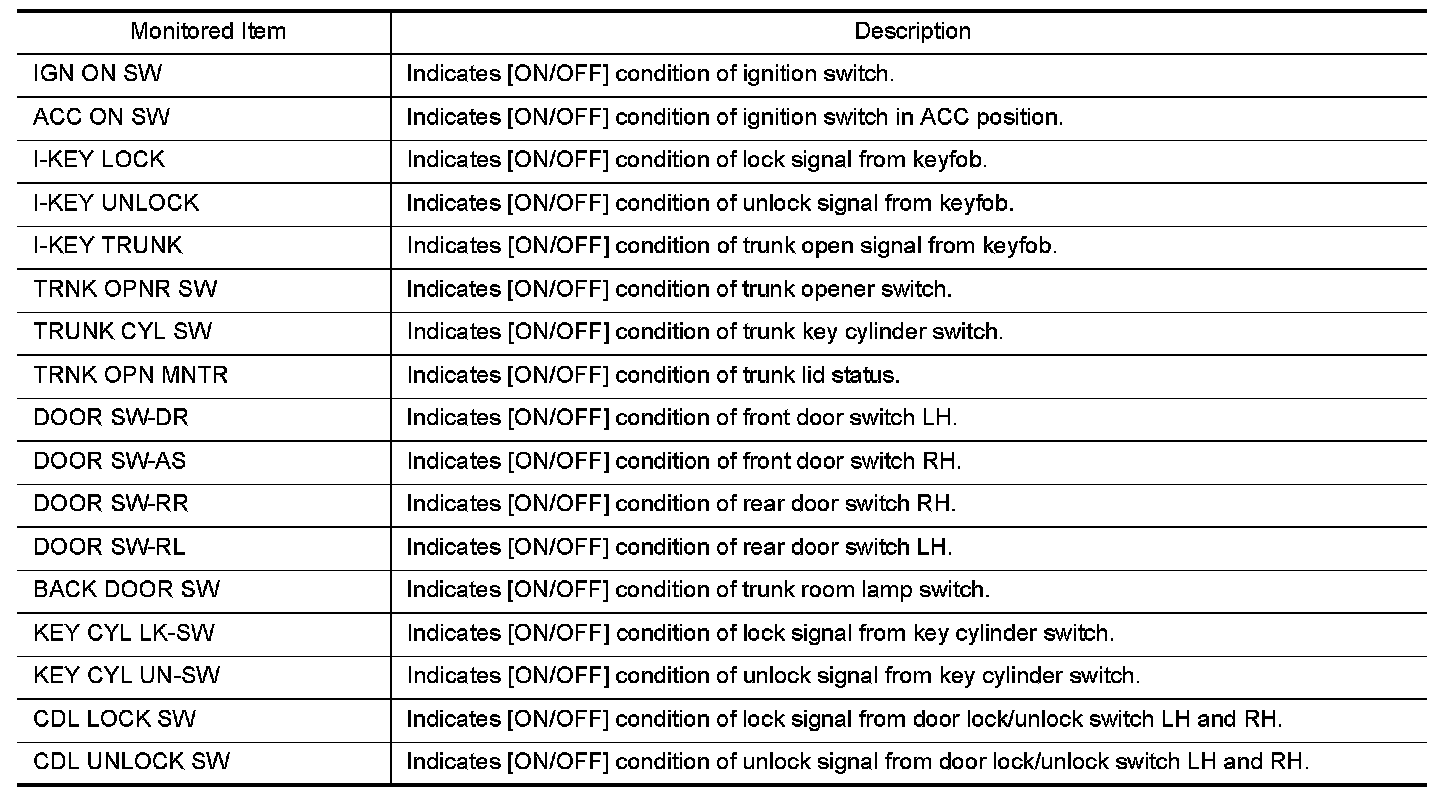

Data Monitor

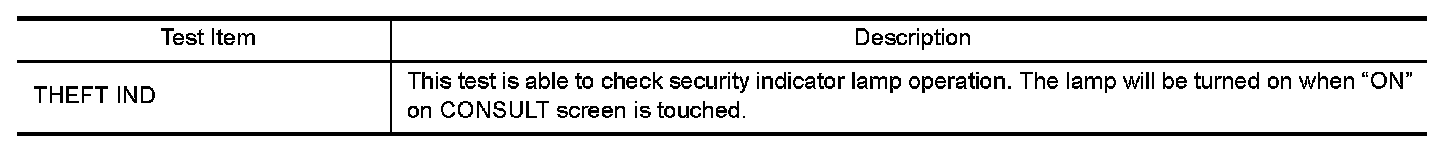

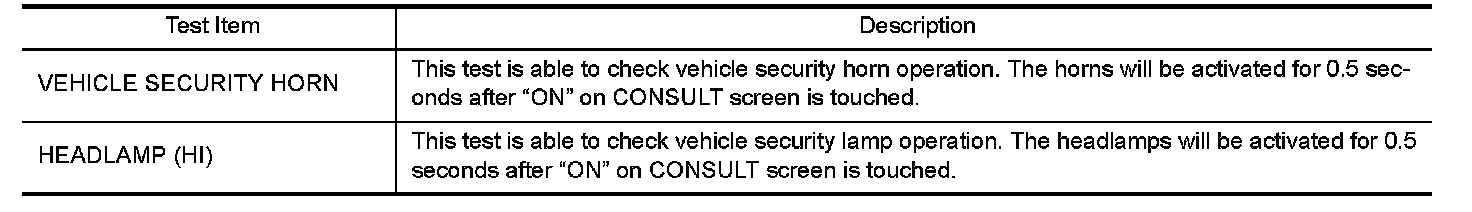

Active Test
