Remote Keyless Entry System




REMOTE KEYLESS ENTRY SYSTEM

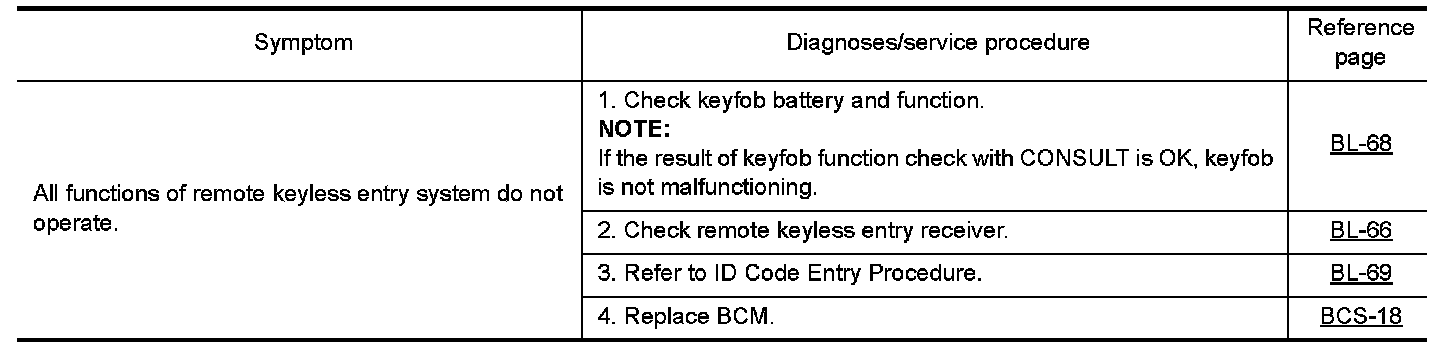

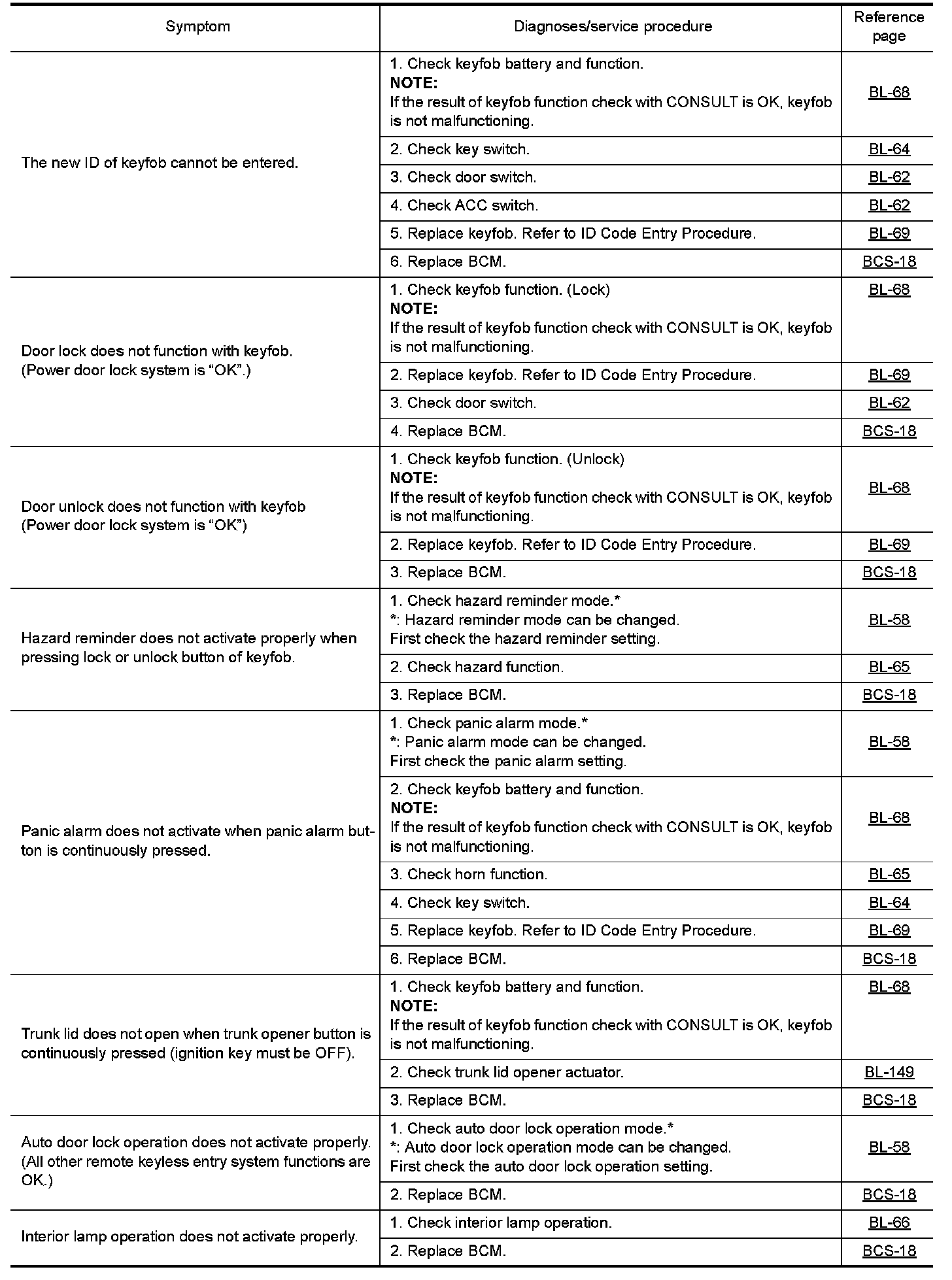

Trouble Diagnosis Symptom Chart

NOTE:
- Always check the "Work Flow" before troubleshooting. Remote Keyless Entry System.
- Always check keyfob battery before replacing keyfob.
