CAN Communication System Inspection

INTELLIGENT KEY SYSTEM

CAN Communication System Inspection


1. CHECK SELF-DIAGNOSTIC RESULTS

- Connect CONSULT, and turn ignition switch ON.
- Touch "INTELLIGENT KEY" on "SELECT SYSTEM" screen.
- Touch "SELF-DIAG RESULTS" on "SELECT DIAG MODE" screen.

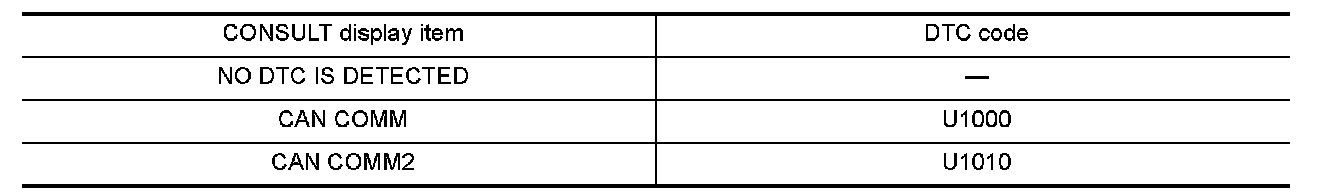

- Check display content in self-diagnostic results.





OK or NG
NO DTC IS DETECTED- INSPECTION END
CAN COMM [U1000]- Go to "CAN SYSTEM", Trouble Diagnosis Flow Chart.
CAN COMM-2 [U1010]- Replace Intelligent Key unit. Service and Repair .
