Replacement

FRONT WIPER BLADE

Replacement

1.Remove the wiper blade from the wiper arm. Removal And Installation.

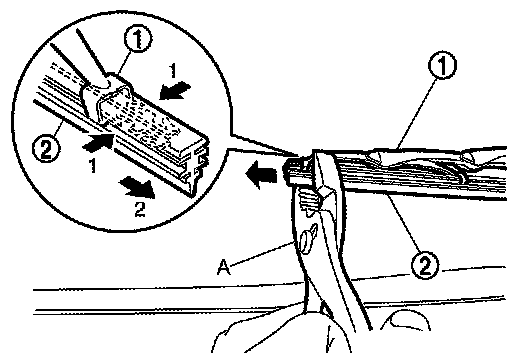

2.Pinch the vertebra with toenails (A) and slide the wiper refill (2) toward the direction of the arrow 2 to remove.
NOTE:
Be careful not to damage the wiper blade (1).

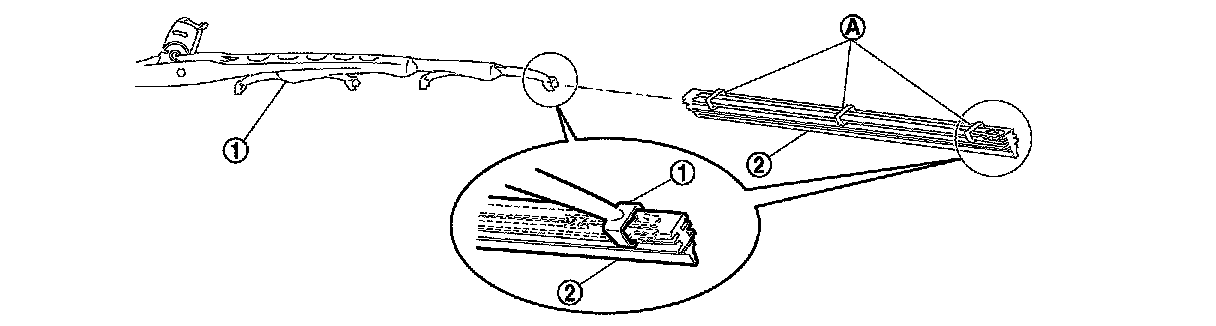

3.Insert the new wiper refill kit (2) as shown in the figure to the wiper blade (1) until the stopper at the wiper refill end fits into the tab on wiper blade.





NOTE:
- Insert the wiper refill to be held securely by tab of wiper blade.
- After the wiper refill is fully inserted, remove the holder (A).
- The refill kit is provided as a set attached to service parts.

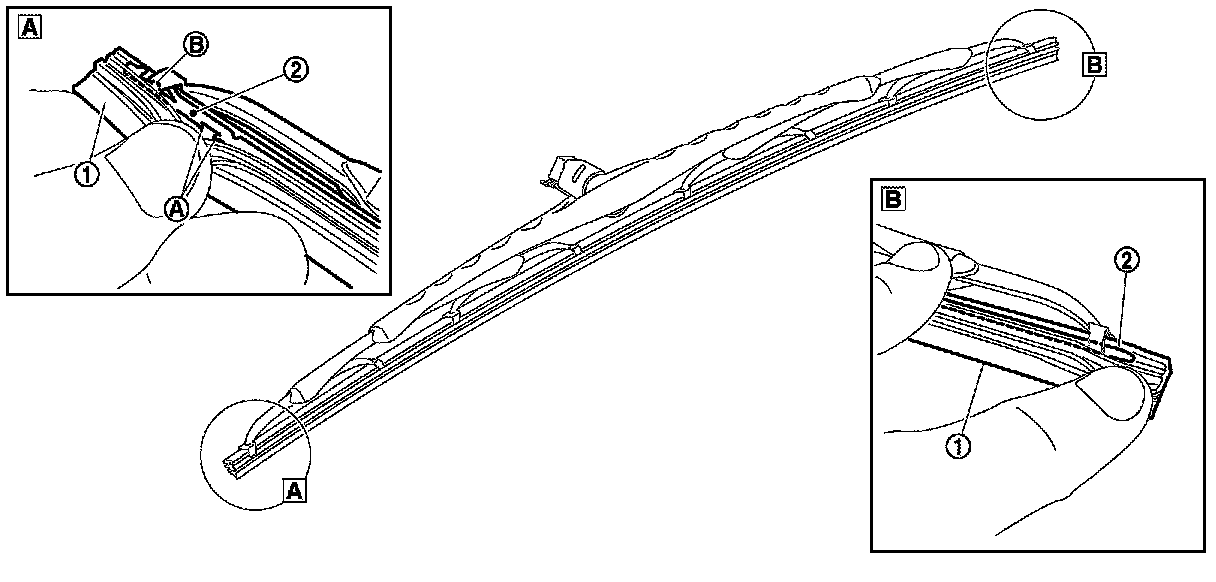

4.After installing the new wiper refill (1) check that the vertebra (2) is well inserted into the wiper refill (1).





NOTE:
Check the following items after replacing wiper refill.
- Wiper refill is not twisted at all.
- Wiper refill thoroughly fits in the tab (B) on wiper blade.
- Wiper refill is inserted from the proper direction.
- The stopper (A) is inserted into the wiper refill.
