Removal And Installation

FRONT WASHER NOZZLE AND TUBE

Removal and Installation


REMOVAL

1.Remove cowl top cover. Removal And Installation.
2.Disconnect front washer tube from front washer nozzle.

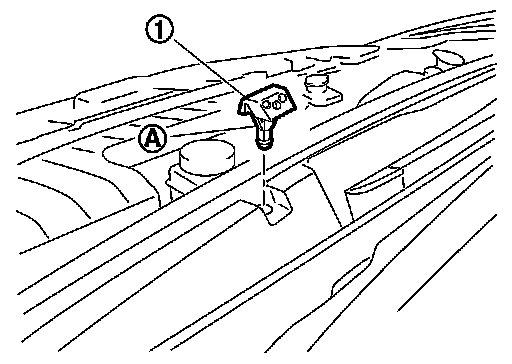

3.While pressing pawl (A) on the cowl top cover front side of front washer nozzle (1), remove front washer nozzle from cowl top cover.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:
The spray positions differ, check that left and right nozzles are installed correctly.
