Front Wiper Does Not Operate

FRONT WIPER DOES NOT OPERATE

Description

The front wiper does not operate under any operation conditions.


Diagnosis Procedure


1. CHECK WIPER RELAY OPERATION

CONSULT ACTIVE TEST
1.Select "FRONT WIPER" of IPDM E/R active test item.
2.With operating the test item, check front wiper operation.

Lo: Front wiper LO operation
Hi: Front wiper HI operation
Off: Stop the front wiper.

Is front wiper operation normally?
YES- GO TO 5.
NO- GO TO 2.

2. CHECK FRONT WIPER MOTOR FUSE

Check front wiper motor fuse. Wiper And Washer Fuse.
Is the inspection result normal?
YES- GO TO 3.
NO- Replace the fuse after repairing the applicable circuit.

3. CHECK FRONT WIPER MOTOR GROUND CIRCUIT

Check front wiper motor ground circuit. Front Wiper Motor Ground Circuit.
Is the inspection result normal?
YES- GO TO 4.
NO- Repair or replace harness.

4. CHECK FRONT WIPER MOTOR INPUT VOLTAGE

CONSULT ACTIVE TEST
1.Turn ignition switch OFF.
2.Disconnect front wiper motor connector.
3.Turn ignition switch ON.
4.Select "FRONT WIPER" of IPDM E/R active test item.

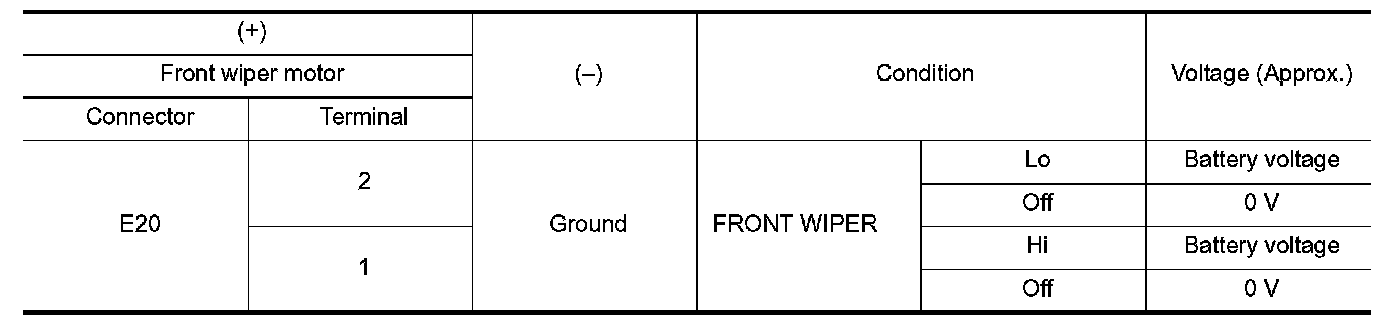

5.With operating the test item, check voltage between front wiper motor harness connector and ground.





Is the inspection result normal?
YES- Replace front wiper motor.
NO- Replace IPDM E/R.

5. CHECK FRONT WIPER REQUEST SIGNAL INPUT

CONSULT DATA MONITOR

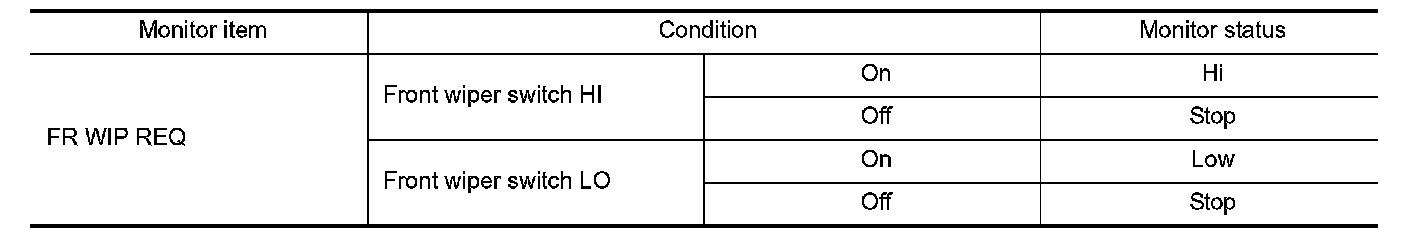

1.Select "FR WIP REQ" of IPDM E/R data monitor item.
2.Switch the front wiper switch to HI and LO.
3.With operating the front wiper switch, check the status of "FR WIP REQ".





Is the inspection result normal?
YES- Replace IPDM E/R.
NO- GO TO 6.

6. CHECK COMBINATION SWITCH

Perform the inspection of the combination switch. With Intelligent Key System (with Intelligent Key system) or Without Intelligent Key System (without Intelligent Key system).
Is combination switch normal?
YES- Replace BCM. With Intelligent Key System (with Intelligent Key system) or Service and Repair (without Intelligent Key system).
NO- Repair or replace the applicable parts.
