Wiper & Washer




DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)

WIPER : CONSULT Function (BCM - WIPER)

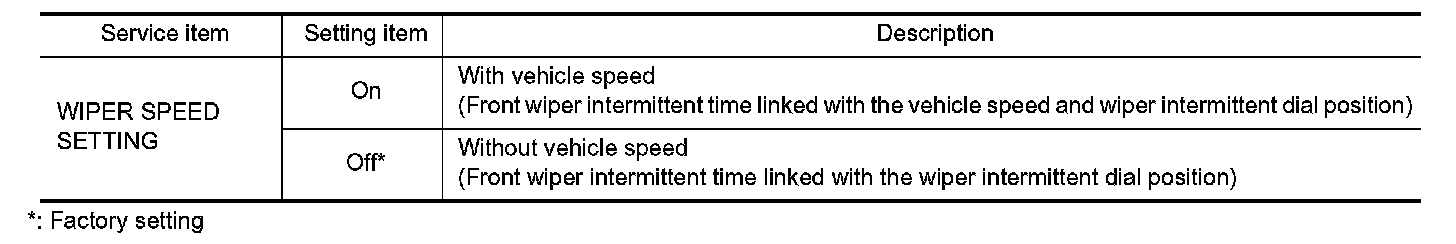

WORK SUPPORT

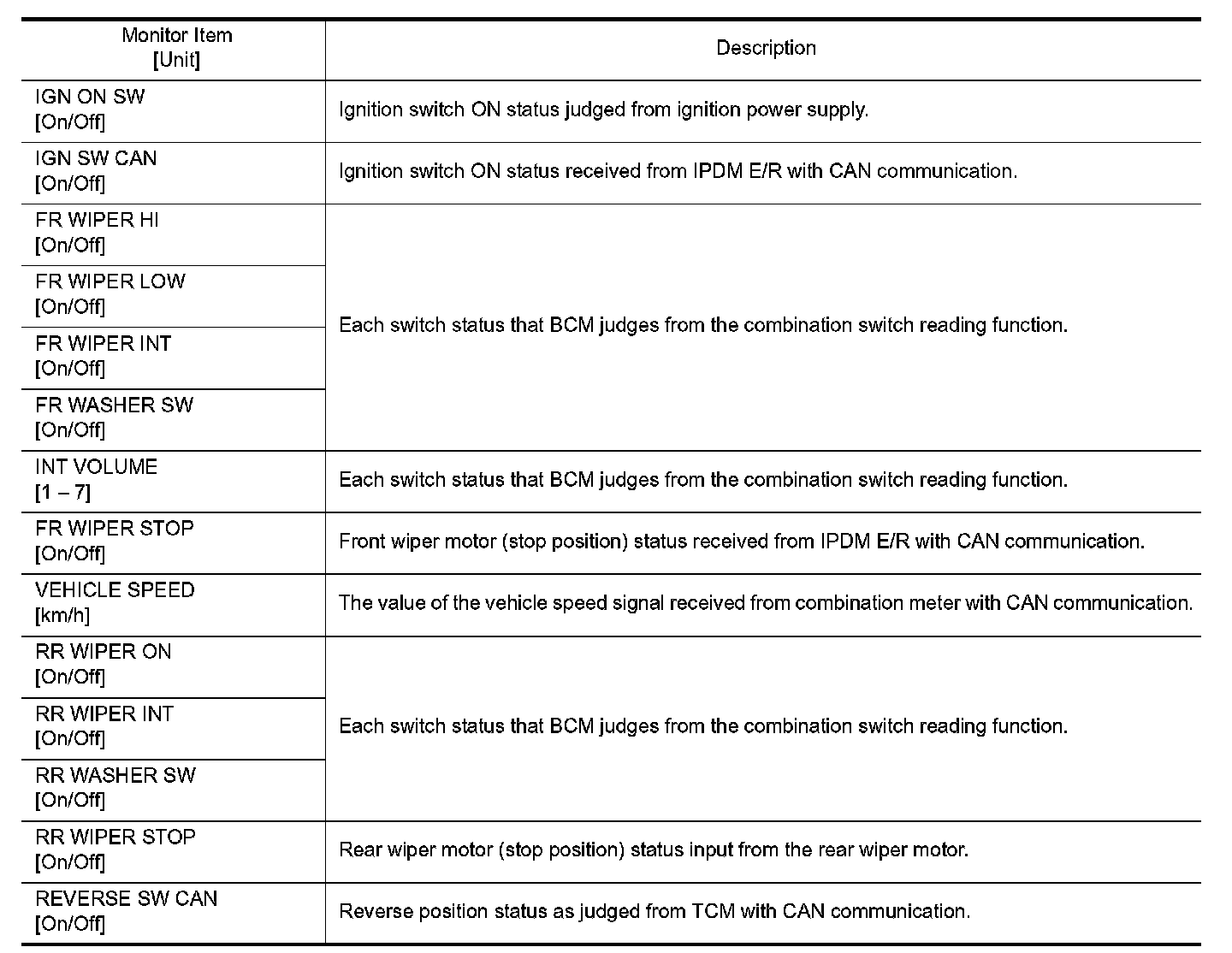

DATA MONITOR

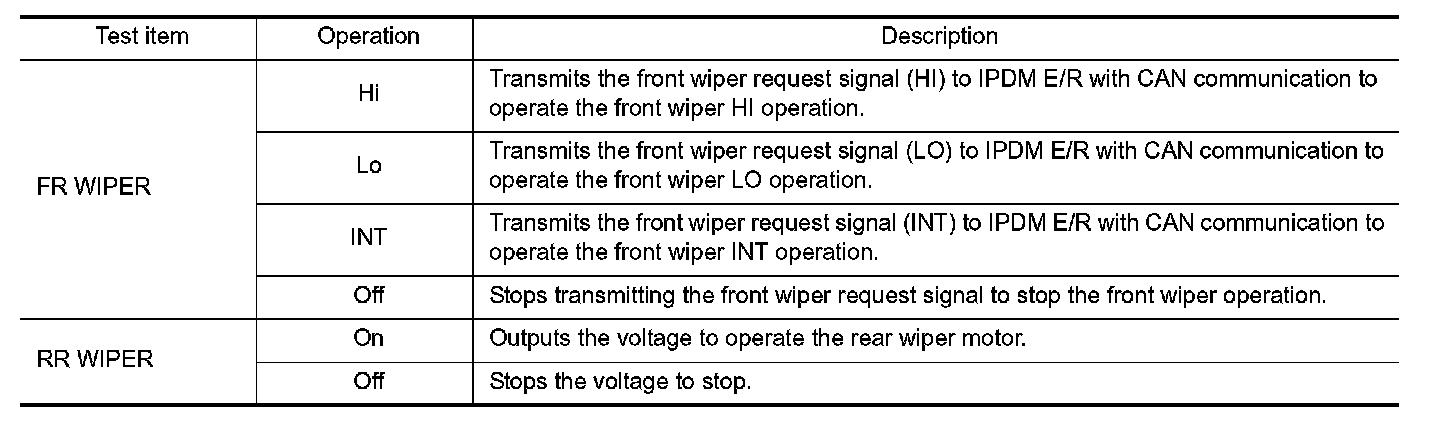

ACTIVE TEST
