Wiper & Washer




DIAGNOSIS SYSTEM (BCM) (WITH INTELLIGENT KEY SYSTEM)

WIPER : CONSULT Function - WIPER

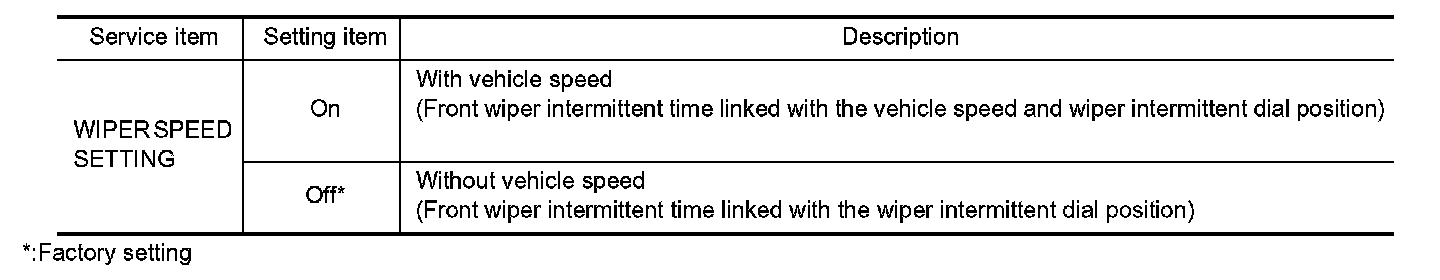

WORK SUPPORT

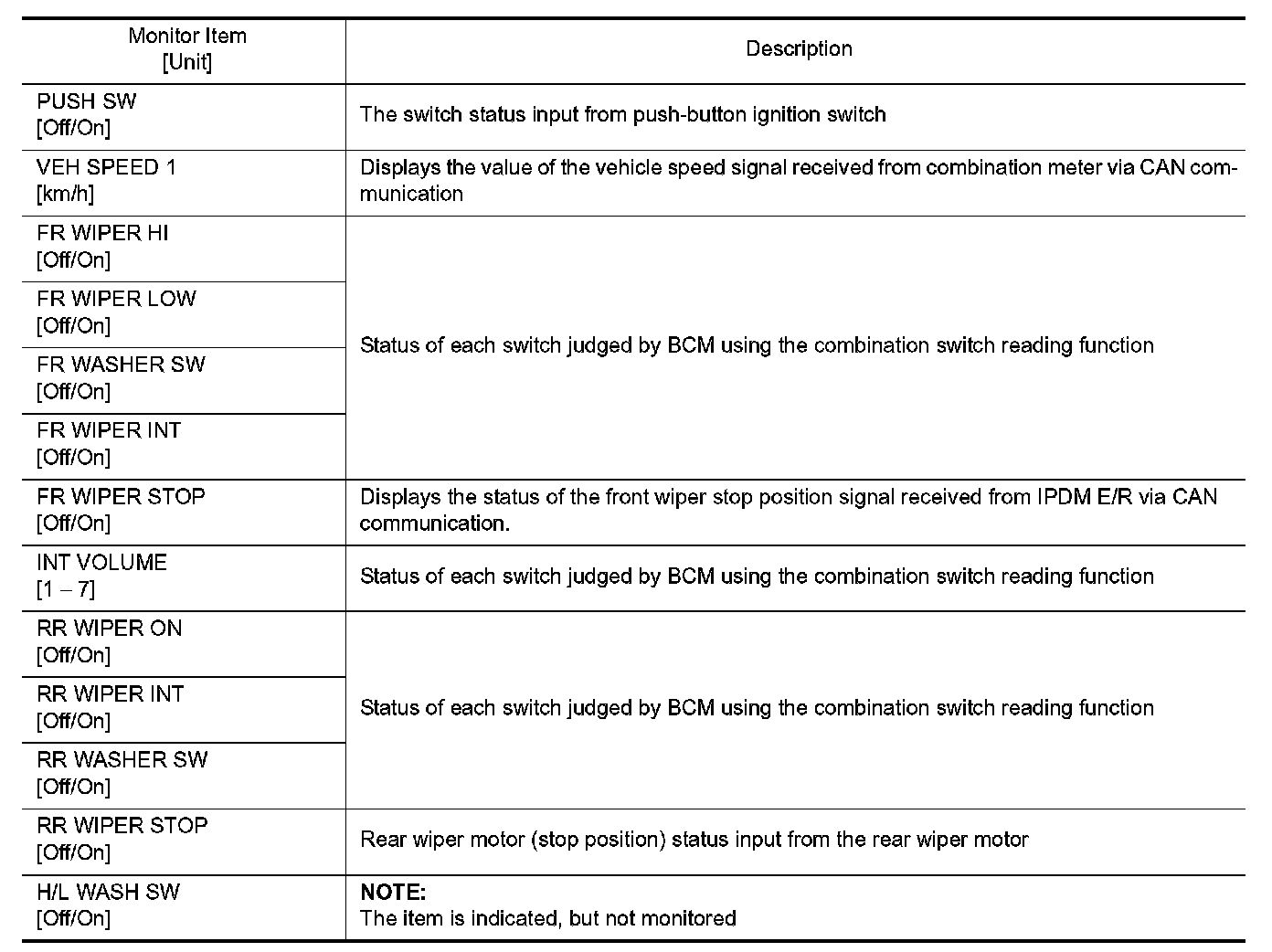

DATA MONITOR

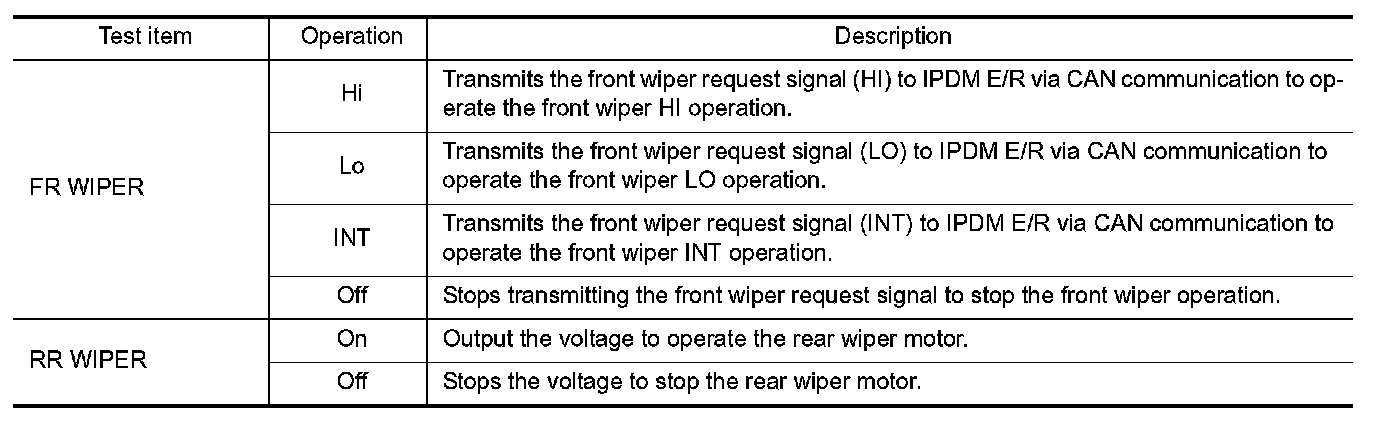

ACTIVE TEST
