Front Wiper And Washer System

SYSTEM

FRONT WIPER AND WASHER SYSTEM : Fail-Safe

When CAN communication with ECM and BCM is impossible, IPDM E/R performs fail-safe control. After CAN
communication recovers normally, it also returns to normal control.

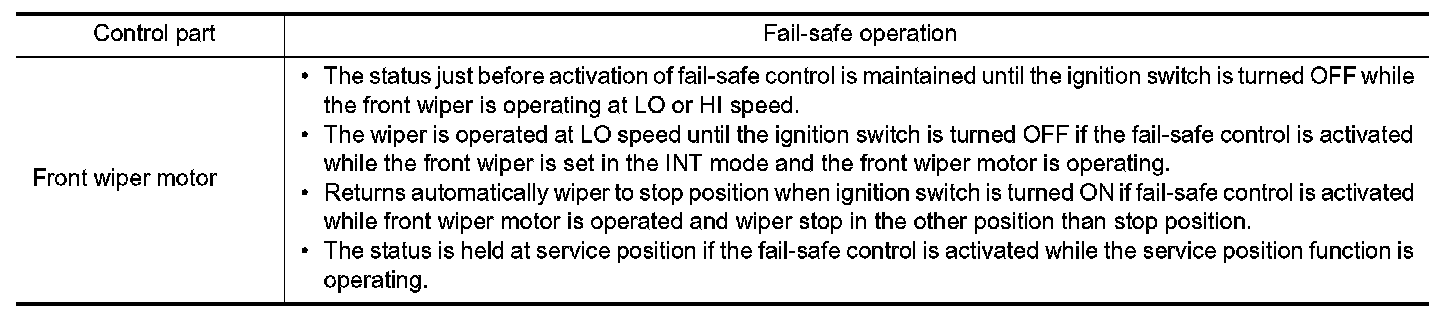

If No CAN Communication Is Available With BCM






IPDM E/R detects front wiper stop position by a front wiper stop position signal.

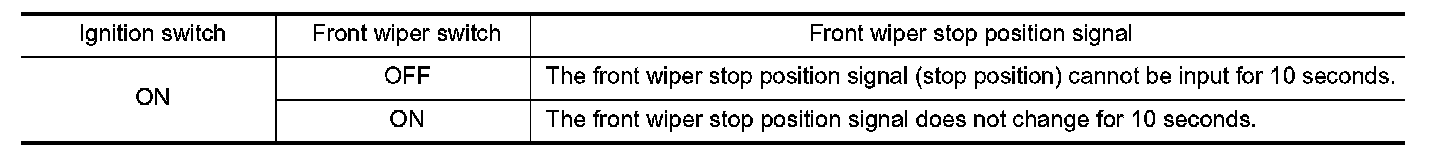

When a front wiper stop position signal is in the conditions listed below, IPDM E/R stops power supply to wiper after repeating a front wiper 10 seconds activation and 20 seconds stop.





NOTE:
This operation status can be confirmed on the IPDM E/R "Data Monitor" that displays "BLOCK" for the item "WIP PROT" while the wiper is stopped.
