Front Wiper Motor Lo Circuit

FRONT WIPER MOTOR LO CIRCUIT

Component Function Check


1. CHECK FRONT WIPER LO OPERATION

CONSULT ACTIVE TEST
1.Select "FRONT WIPER" of IPDM E/R active test item.
2.With operating the test item, check front wiper operation.

Lo: Front wiper (LO) operation
Off: Stop the front wiper.

Is front wiper (LO) operation normally?
YES- Front wiper motor LO circuit is normal.
NO- .


Diagnosis Procedure


1. CHECK FRONT WIPER MOTOR (LO) OUTPUT VOLTAGE

CONSULT ACTIVE TEST
1.Turn ignition switch OFF.
2.Disconnect front wiper motor connector.
3.Turn ignition switch ON.
4.Select "FRONT WIPER" of IPDM E/R active test item.

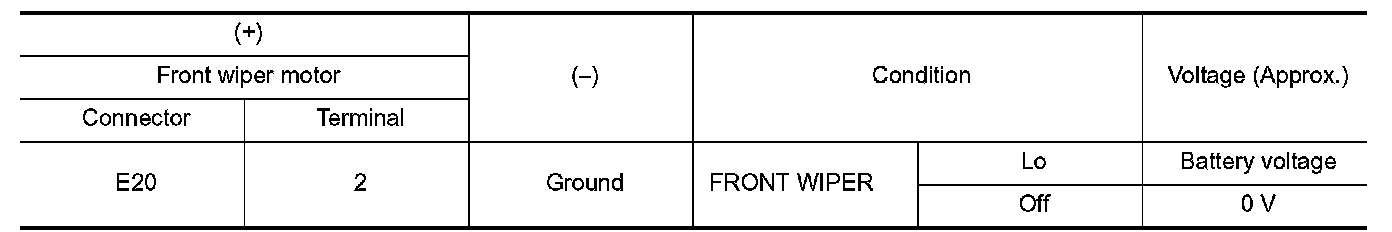

5.With operating the test item, check voltage between front wiper motor harness connector and ground.





Is the inspection result normal?
YES- Replace front wiper motor.
NO- GO TO 2.

2. CHECK FRONT WIPER MOTOR (LO) CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect IPDM E/R connector.

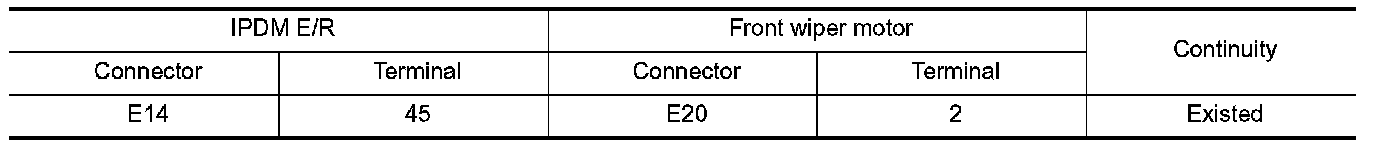

3.Check continuity between IPDM E/R harness connector and front wiper motor harness connector.

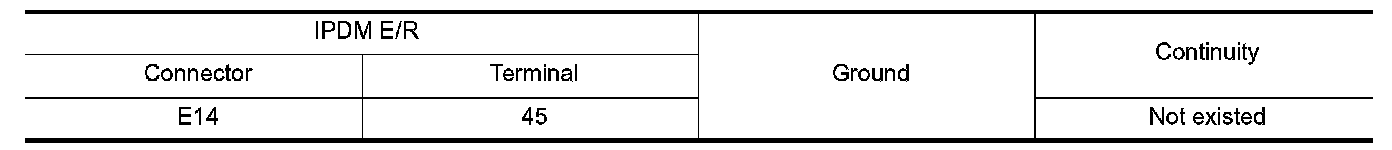

4.Check continuity between IPDM E/R harness connector and ground.





Is the inspection result normal?
YES- Replace IPDM E/R.
NO- Repair or replace harness.
