Washer Switch




COMPONENT PARTS

Washer Switch

- Washer switch is integrated with combination switch.

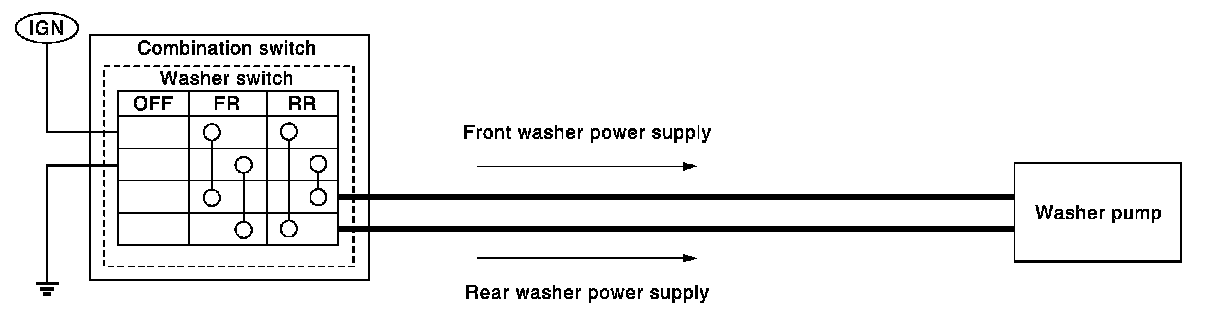

- Combination switch operates front washer or rear washer by changing voltage polarity to be supplied to washer pump.
